🌐 High-Velocity Global Cargo Integration & Site-Direct Delivery
MERIT safeguards your major excavation operations from costly structural asset failures. We command an international heavy-freight logistics grid engineered to dispatch high-tensile internal components directly to deep-pit mines, major infrastructure expansions, and remote processing plants, completely bypassing standard supply chain disruptions.
- The Trans-Peninsula Heavy Transit Routes: Priority logistics tracking delivering climate-resilient mechanical components straight to Saudi Arabia (Al Khobar, Riyadh, Jeddah, and the NEOM gigaproject construction zones), Oman (Muscat, Sohar, Salalah), and the United Arab Emirates (Dubai, Abu Dhabi, Sharjah).
- The Continental European Hubs: Rapid-transit overland and cargo-flight networks connecting core inventory to major equipment rental fleets, plant hire depots, and civil contractors from Frankfurt to Zagreb and Istanbul.
- The Pacific Rim & Sub-Saharan Logistics: Specialized heavy-freight channels servicing high-tonnage mining fields throughout Western Australia (Pilbara), Queensland, and primary extraction environments spanning Johannesburg.
High-Tensile Structural Integrity for 50 to 80-Ton Class Mining Excavators

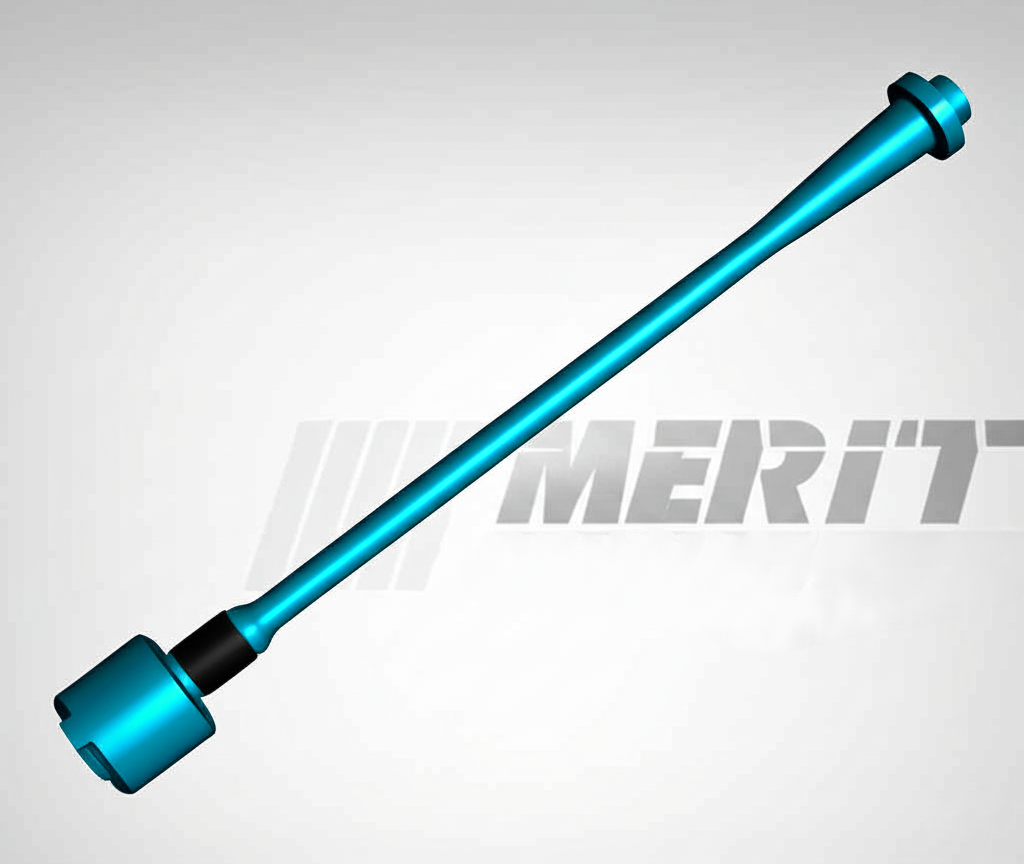

The Tie Rod Assembly (commonly referred to as a Side Bolt, Tension Bolt, or Through-Rod) is the critical structural fastener engineered specifically for the ultra-heavy Rammer 5011E (along with the 5011 and 5011i) high-capacity hydraulic rock breaker. Working as the high-tension structural skeleton of a massive 4.7-ton hammer assembly on 43 to 80-ton heavy carrier excavators, these rods clamp the front head, cylinder, and back head into a single rigid unit. They must endure continuous, high-frequency tensile stress and violent recoil vibrations generated during deep rock breaking.
MERIT manufactures this elite replacement tie rod from ultra-pure, vacuum-degassed forged alloy structural steel. Refined via precise automated thread-rolling and computer-regulated vertical heat treatment furnaces, our tension bolts achieve flawless grain flow, eliminating the internal structural imperfections that cause sudden bolt snapping or thread stripping under continuous high-frequency percussive loads.
Advanced Metal Treatment and Technical Engineering of MERIT 5011E Side Bolts
Holding a mega-class hydraulic rock breaker together under thousands of high-energy kinetic blows per minute requires immaculate metallurgical balance. MERIT ensures field reliability through:
1. Controlled Thermal Tempering for High Yield Strength
Our proprietary multi-stage heat treatment process gives the tie rod an exceptional combination of tensile strength and elasticity. This ensures the bolt can withstand massive torque requirements and absorb the violent structural elongation forces during blank fires without stretching permanently or breaking.
2. CNC Fillet and Thread Rolling Precision
The high-stress thread profiles and radius fillets are precision CNC-rolled rather than cut. Thread rolling preserves continuous metal grain lines, drastically reducing mechanical stress concentrations at the bolt roots and preventing the micro-fissures that lead to sudden head detachment.
3. Deep Polyurethane Outer Coating Protection
Engineered to withstand the extreme operational heat spikes of the GCC and corrosive mining environments, MERIT tie rods feature an advanced protective surface coating. This layer blocks corrosive chemical attack from moisture and contaminated grease while maximizing resistance to hydrogen embrittlement.
Technical Specifications
| Industrial Engineering Parameter | Operational & Logistics Data |
| Product Category | Hydraulic Breaker Tie Rod / Side Bolt / Through Tension Rod |
| Equipment Compatibility | Rammer 5011E / Rammer 5011 / Rammer 5011i Heavy Series |
| Manufacturing Process | Forged Alloy Base with Precision CNC-Rolled Threading |
| Material Base Composition | Vacuum-Degassed Ultra-Pure High-Tensile Forged Steel |
| Structural Treatment | Vertically Heat-Treated, Micro-Tempered, Stress-Relieved |
| Global Logistical Delivery | Direct Cargo Routing to Al Khobar, Muscat, Dubai, NEOM, Frankfurt |
| Manufacturer Quality Shield | Engineered and Quality-Assured by MERIT Global Spare Parts |
