🌐 High-Velocity Freight Management & Site-Direct Fleet Support
MERIT eliminates costly project interruptions by securing the mechanical integrity of your primary demolition equipment. We operate a responsive, international freight network engineered to dispatch high-wear internal guide assemblies directly to quarry sites, civil infrastructure expansions, and heavy machinery workshops worldwide, bypassing traditional regional logistical bottlenecks.
- The Peninsula Infrastructure Grid: Priority customs-cleared cargo lanes serving main development zones across Saudi Arabia (Riyadh, Jeddah, Al Khobar, and the NEOM development projects), Oman (Salalah, Sohar, Muscat), and the United Arab Emirates (Abu Dhabi, Dubai, Sharjah), alongside rapid dispatch channels into Qatar (Doha).
- The Euro-Mediterranean Transit Corridor: High-frequency shipping linkages supplying plant hire fleets, asset owners, and hydraulic repair networks from Frankfurt to Zagreb, Madrid, and Istanbul.
- The Southern Hemisphere & Pan-American Channels: Dedicated industrial cargo routes supplying heavy-duty mining attachments directly to iron ore and gold fields across Western Australia, Queensland, and primary extraction corridors around Houston and Johannesburg.
Rigid Axial Alignment for 50 to 80-Ton Class Heavy Mining Excavators

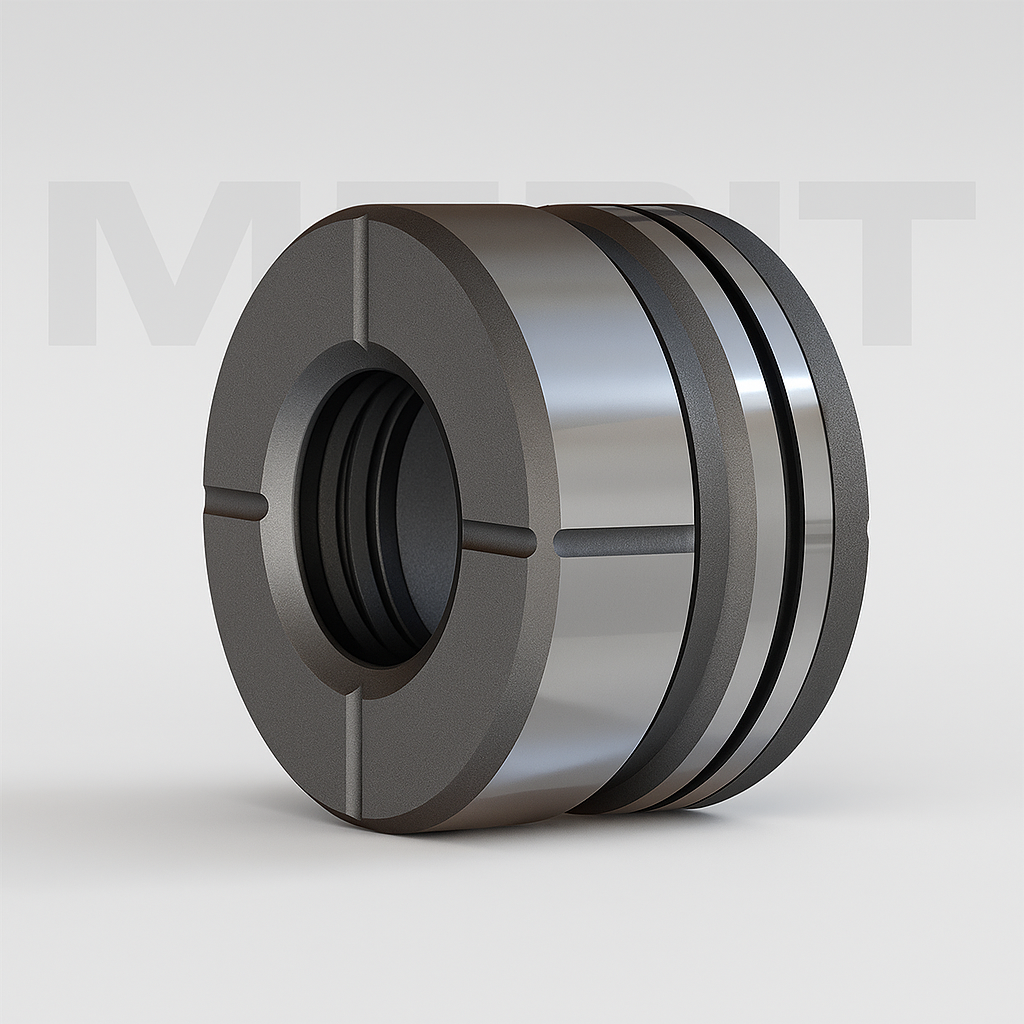

The Thrust Ring (also designated as the Thrust Washer, Upper Guide Ring, or Stop Ring) is the critical internal locating component engineered specifically for the ultra-heavy Rammer 5011 (as well as the 5011E and 5011i) heavy-range hydraulic rock breaker. Positioning itself within the front head structure of a massive 4.7-ton hammer body operating on 43 to 80-ton heavy crawler excavators, this component acts as the primary axial locator for the internal tool bushings. It absorbs the extreme vertical thrust forces and structural vibrations generated as the reciprocating piston transfers kinetic energy into the 174 mm working steel chisel shank.
MERIT manufactures this premium replacement thrust ring utilizing vacuum-degassed, high-density alloy structural steel. Refined through precise multi-axis CNC turning and computer-controlled deep thermal oil quenching, our thrust rings maintain exceptional dimensional stability under high operating temperatures, completely avoiding outer diameter distortion and premature material splitting under continuous, high-frequency percussive loads.
Technical Features and Metallurgical Precision of MERIT 5011 Thrust Rings
Surviving the relentless metal-on-metal compression waves inside a heavy front head assembly requires immaculate steel density. MERIT ensures field reliability through:
1. Progressive Induction Surface Hardening
Our proprietary multi-stage heat treatment provides a deeply hardened wear face to battle continuous high-frequency kinetic shockwaves and heavy friction contact. This ultra-dense exterior skin prevents localized metal deformation and flaking, while the core remains structurally ductile to safely absorb immense stress spikes during blank fires.
2. High-Precision CNC Dimensional Control
The internal bores, outer diameters, and locking interfaces are precision-turned to mirror original equipment dimensions exactly. This tight dimensional tolerance ensures a perfect press-fit or locating alignment inside the chuck housing, preventing internal tool slop, uneven bushing wear, and piston striking misalignments.
3. Integrated Lubrication Flow Grooves
Engineered to withstand the extreme ambient and operational heat spikes common in the GCC and remote mining zones, the MERIT thrust ring features optimized internal geometry to promote efficient grease distribution. This ensures high-temperature chisel paste flows smoothly to critical high-friction zones, protecting the tool shank and surrounding guide components from thermal galling.
Technical Specifications
| Industrial Engineering Parameter | Operational & Logistics Data |
| Product Category | Hydraulic Breaker Thrust Ring / Internal Bushing Locator |
| Equipment Compatibility | Rammer 5011 / Rammer 5011E / Rammer 5011i Heavy Series |
| Machining Precision | Engineered for Flawless Press-Fit Front Head Alignment |
| Material Base Composition | Vacuum-Degassed Premium High-Density Forged Alloy Steel |
| Surface Hardness Treatment | Case-Hardened, Inducted Tempered, and Stress-Relieved |
| Global Logistical Delivery | Direct Cargo Routing to Doha, Salalah, Abu Dhabi, NEOM, Frankfurt |
| Manufacturer Quality Shield | Engineered and Quality-Assured by MERIT Global Spare Parts |
