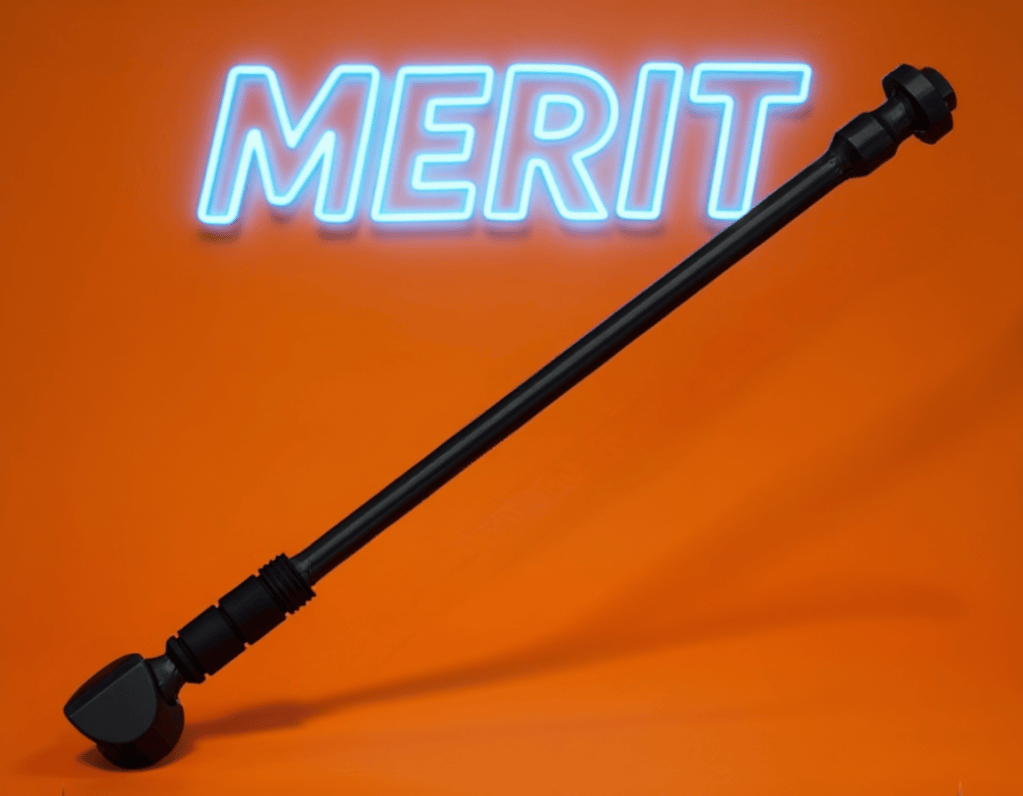

مسمار شد مع صامولة MERIT متوافق مع الشاكوش الهيدروليكي MTB 365

تعتبر مسامير الشد مع الصامولة (المعروفة باسم المسامير الجانبية، الجنب أو Tie Rods) الحاملة لأكواد التوافق B100920101310 و B102410101300 مكونات هيكلية بالغة الأهمية لـ شاكوش التكسير MTB 365. تتمثل الوظيفة الحيوية لهذه المسامير عالية المتانة في ربط وضم الكتل الرئيسية للشاكوش (رأس الشاكوش، الأسطوانة، والمقدمة الأمامية) ببعضها البعض، وتحمل قوى الشد الهائلة الناتجة عن ضربات الارتداد المستمرة.

تقوم MERIT بتصنيع هذه المسامير الجانبية للشاكوش باستخدام سبائك فولاذية فائقة المقاومة عبر عمليات حدادة متطورة وتشكيل أسنان دقيق، مما يضمن قدرة كل مسمار جنب على امتصاص موجات الصدمات المتتالية دون تعرضه للتمدد أو القطع تحت ظروف التشغيل القاسية.

---

الميزات التقنية والموثوقية

في الشاكوش الهيدروليكي عالي الطاقة مثل MTB 365، فإن أي خلل أو ارتخاء في مسامير الشد قد يؤدي إلى انحراف داخلي كارثي للأجزاء. تضمن MERIT أقصى درجات السلامة الهيكلية من خلال معايير تصنيع صارمة:

1. فولاذ سبائكي يجمع بين الصلابة والمرونة الهيكلية

نحن لا نركز على الصلابة الجافة فحسب، بل على تحقيق مرونة مثالية. نستخدم فولاذًا معالجًا حراريًا يسمح لـ مسمار الشد بالتمدد المجهري تحت ضغط الضربات ثم العودة إلى طوله الأصلي، مما يمنع الفشل المبكر للمعدن نتيجة الإجهاد.

2. تشكيل الأسنان بالدرفلة على البارد

بدلاً من قطع الفولاذ بالخراطة التقليدية، يتم تشغيل أسنان مسامير MERIT بواسطة تقنية الدرفلة على البارد (Roll Threading). تحافظ هذه العملية على تدفق ألياف المعدن دون قطعها، مما يرفع من قوة السن بنسبة تتجاوز 30% ويمنع تلف الصامولة أو تآكل الأسنان.

3. صواميل أمان عالية التحمل ومطابقة

يتم توريد كل مسمار جنب مع صامولة الأمان الخاصة به، والمصممة بمواصفات صلابة متطابقة تماماً لضمان تعشيق مثالي وتوزيع متساوٍ لعزم الربط، مما يمنع ارتخاء الصامولة بسبب الاهتزازات عالية التردد.

---

لماذا تختار مسامير MERIT لشاكوش MTB 365؟

• سلامة هيكلية مضمونة: تحافظ على كتل الشاكوش الهيدروليكي مشدودة بإحكام، مما يمنع تهريب الزيت الداخلي وهبوط الضغط.
• مقاومة فائقة للتمدد: تقلل من الحاجة إلى إعادة تدوير وربط المسامير بشكل متكرر في ورش الصيانة.
• توافق أبعاد دقيق ومباشر: مصممة خصيصاً كبديل مثالي للقطع ذات الأكواد B100920101310 و B102410101300 في سلسلة MTB 365.
• حماية الأجزاء الثمينة: استخدام مسمار جانبي MERIT بجودة عالية يحمي المكونات المكلفة مثل البستم والأسطوانة من التلف الناتجة عن عدم الاستقامة.

---

مواصفات المنتج

المواصفات	القيمة
خط المنتج	مسمار شد مع صامولة / Tie Rod with Nut / مسمار جنب
الأكواد المتوافقة	B100920101310 / B102410101300
موديل الشاكوش	MTB 365 Breaker
تكنولوجيا تشكيل السن	الدرفلة على البارد عالية الدقة
الشركة المصنعة	MERIT
