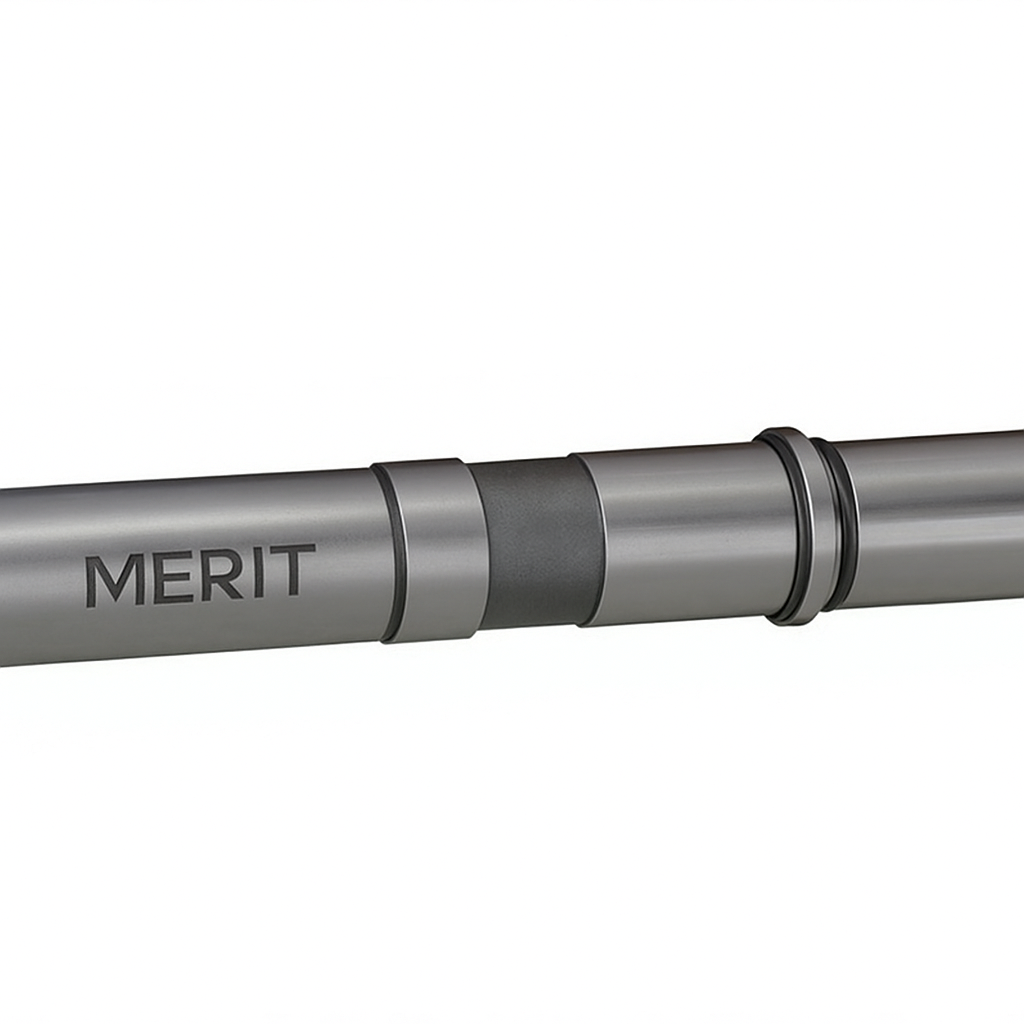

Restore the maximum impact energy of your Sandvik BR 4099 / BR 4099i with the Merit Premium Striking Piston. As the primary moving component of this heavy-duty 3.5-ton breaker, the piston (part number 151945) is responsible for delivering the crushing force required for primary quarrying and large-scale demolition. Merit pistons are precision-engineered in Turkey to meet the rigorous demands of 35–55 ton carrier applications, ensuring long-term durability and consistent hitting power.
Product Specifications
| Feature | Details |
|---|---|
| Product Name | Striking Piston / Piston / Боёк |
| Part Number | 151945 |
| Compatible Model | Sandvik BR 4099 / BR 4099i / Rammer 4099 |
| Material | High-Alloy Nickel-Chrome-Moly Steel |
| Process | Vacuum Heat Treatment & Precision Honing |
Export to Sheets
Why Choose the Merit 151945 Piston for Sandvik BR 4099?
The Sandvik BR 4099 series is designed for extreme productivity. A lower-quality piston can fail under the intense heat and pressure, leading to cylinder scoring. Merit pistons provide:
1. Extreme Fatigue Resistance
The 151945 is forged from a specialized high-nickel alloy steel. This material is chosen for its high fracture toughness, allowing the piston to withstand millions of high-velocity cycles without developing the internal micro-cracks that cause cheaper pistons to shatter during operation.
2. Ultra-Smooth Surface Finish
Our pistons are ground to micron-level tolerances and mirror-polished. This critical step ensures a perfect interface with the Seal Kit (152843), reducing friction-generated heat and significantly extending the life of your dynamic seals. A smoother piston also protects the internal bore of the Cylinder (160002).
3. Induction-Hardened Impact Face
The striking face of the piston is the point of highest stress. Merit applies advanced induction hardening to this zone to prevent “mushrooming” or chipping. This ensures that 100% of the hammer’s impact energy is transferred squarely into the working tool.
Maintenance Tip: Protecting Your New Piston
The Sandvik BR 4099 is a precision machine. To ensure the longest life for your new 151945 piston:
- Lubrication is Mandatory: Ensure the RAMLUBE system is functioning. Always use high-temperature molybdenum-disulfide (MoS2) chisel paste. Dry firing is the fastest way to ruin a polished piston.
- Inspect the Bushings: If the Lower Tool Bushing (152214) is worn, the tool will wobble. This causes “offset strikes,” where the piston hits the tool at an angle, leading to catastrophic piston chipping.
- Warm-Up Procedure: In cold climates, always cycle the hammer slowly for 10 minutes to bring the hydraulic oil and the piston up to operating temperature before full-power breaking.
