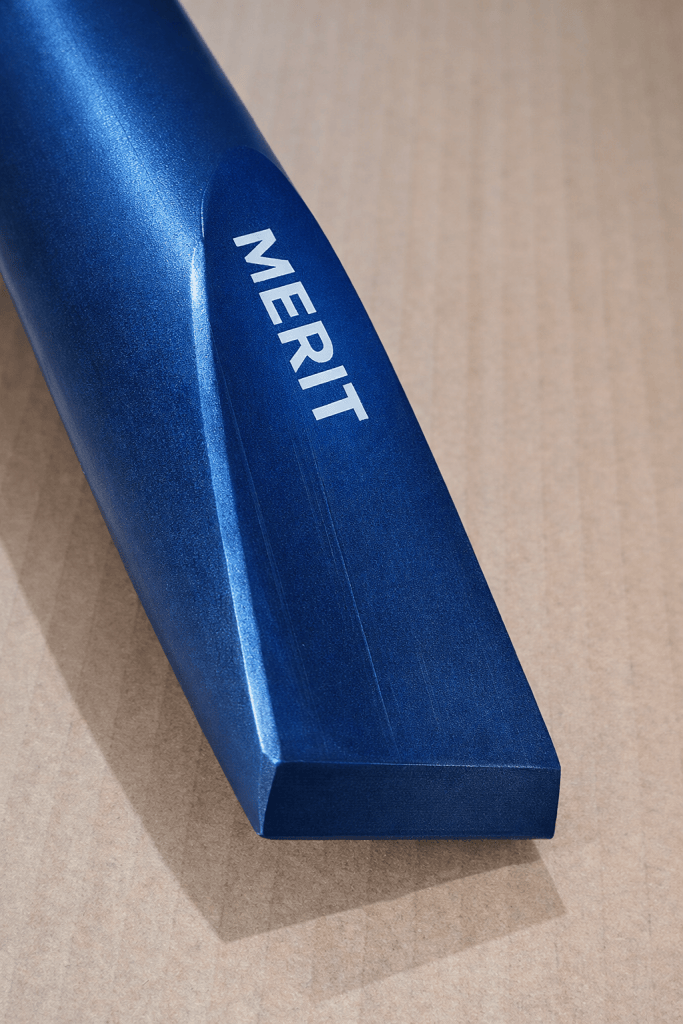

Optimize the performance of your hydraulic breaker with the Merit Premium Standard Chisel, specifically designed for the Rammer R35P. This high-performance 150 mm diameter tool is engineered to handle the rigorous demands of trenching, road construction, and medium-to-heavy demolition. As a leading aftermarket alternative, the Merit BV1101 tool provides the extreme durability required to withstand the high-impact energy of the 3.5-ton Rammer series.
Product Specifications
| Feature | Details |
|---|---|
| Product Name | Standard Chisel / Working Tool |
| Compatible Model | Rammer R35P |
| Reference Number | BV1101 |
| Tool Diameter | 150 mm |
| Material | Forged 42CrMo High-Alloy Steel |
| Heat Treatment | Full-Length Induction Hardening |
Why the Merit BV1101 Tool is Built to Last
The Rammer R35P is a powerful breaker that requires a tool with high structural integrity. Using an inferior tool can lead to bending, snapping, or damage to the internal piston. Merit tools solve these issues through:
1. High-Density Forging
Our chisels are forged from premium alloy steel, which compresses the grain structure of the metal. This makes the tool significantly more resistant to fatigue cracks compared to standard rolled-steel parts, allowing for deeper penetration in hard rock.
2. Dual-Stage Hardening
We utilize a sophisticated heat-treatment process that achieves a surface hardness of 48–52 HRC. This provides a wear-resistant exterior to keep the tip sharp, while the internal core remains ductile to absorb the massive shockwaves generated during every blow.
3. Precision Machined Shank
The 150 mm shank is machined to exact tolerances to ensure a perfect fit with the Rammer R35P upper and lower bushings. This precision alignment prevents the tool from “tilting” inside the hammer, which protects your piston from scuffing and reduces internal heat buildup.
Key Benefits
- Optimized Penetration: The chisel edge is designed for directional breaking, making it the perfect tool for cutting through sedimentary rock and reinforced concrete.
- Reduced Operating Costs: Merit’s superior wear resistance means longer intervals between tool changes, lowering your overall cost-per-hour.
- Direct Compatibility: 100% dimensional match for the Rammer BV1101, ensuring easy installation and secure retention.
Maintenance Tip: Protecting your BV1101 Tool
- Avoid Side-Loading: Never use the chisel as a lever to pry rocks. Side-loading is the #1 cause of tool breakage at the retainer notch.
- Lubrication is Essential: Always use high-quality molybdenum-based chisel paste. Lubricate the tool shank every 2 hours of work to prevent friction-fire and seizing.
- Check Wear Limits: If the tool diameter has worn down by more than 5-8 mm at the bushing contact point, replace it to prevent damage to the front head.
