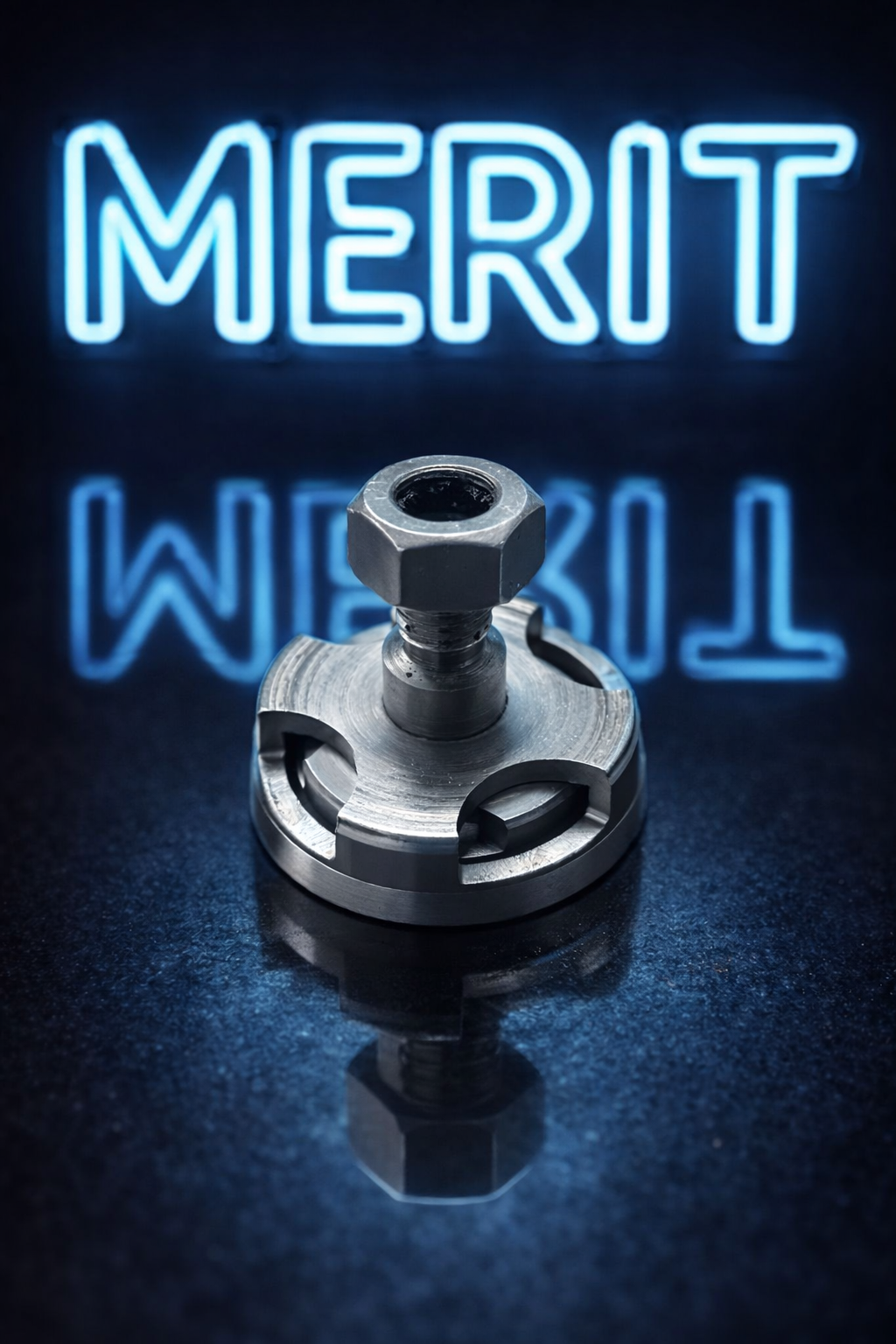

Ensure consistent striking power and protect your hydraulic system with the Merit Accumulator Inner Valve, specifically engineered for the JCB HM380 hydraulic breaker. The accumulator is a high-pressure reservoir that absorbs hydraulic spikes and provides the “extra” oil flow needed for the high-velocity power stroke. The inner valve is the heart of this component, managing the flow between the nitrogen gas chamber and the hydraulic circuit.
Product Specifications
| Feature | Details |
|---|---|
| Product Name | Accumulator Inner Valve / Diaphragm Valve |
| Compatible Model | JCB HM380 |
| Material | Hardened High-Alloy Steel / Precision Synthetic Seal |
| Function | Hydraulic Shock Absorption & Energy Storage |
| Precision | Machined to exact JCB OEM Tolerances |
Why the JCB HM380 Accumulator Inner Valve is Critical
The JCB HM380 is a mid-sized breaker that relies on a nitrogen-charged accumulator to maintain a constant percussion rate. A failing inner valve can lead to several performance issues:
1. Hydraulic Spike Protection
The inner valve acts as a gatekeeper. When functioning correctly, it prevents high-pressure “shocks” from traveling back into your excavator’s hydraulic pump. Merit’s inner valve is designed with rapid-response geometry to catch these spikes before they cause damage to your carrier.
2. Consistent Impact Energy
If the inner valve is worn or “sticking,” the breaker will experience irregular hitting or a significant drop in power. Merit valves are precision-lapped to ensure a perfect seal, maintaining the critical pressure balance between the gas and the oil chambers.
3. High-Cycle Durability
Hydraulic breakers operate at high frequencies (up to 700+ blows per minute). Our inner valves undergo a specialized carbon-nitriding process, giving them a surface hardness that resists “pitting” and erosion caused by high-velocity hydraulic oil.
Key Benefits
- OEM Compatibility: A direct replacement for JCB HM380 internal accumulator components.
- Fuel Efficiency: A healthy accumulator valve reduces the load on the excavator’s engine by smoothing out hydraulic demand.
- Extended Diaphragm Life: By regulating flow accurately, the inner valve prevents the accumulator diaphragm from over-stretching and tearing.
Maintenance Tip: Signs of Inner Valve Failure
Inspect your JCB HM380 accumulator system if you notice:
- Hose Vibration: Excessive “jumping” of the hydraulic hoses during operation.
- Erratic Striking: The hammer starts strong but loses power after a few minutes of work.
- Gas Leaks: If nitrogen is found in the hydraulic oil (foaming oil), the inner valve and associated seals have likely failed.
Pro Service Note: Whenever replacing the accumulator inner valve, it is highly recommended to replace the Accumulator Diaphragm and all associated O-rings at the same time to ensure a complete and reliable repair.
