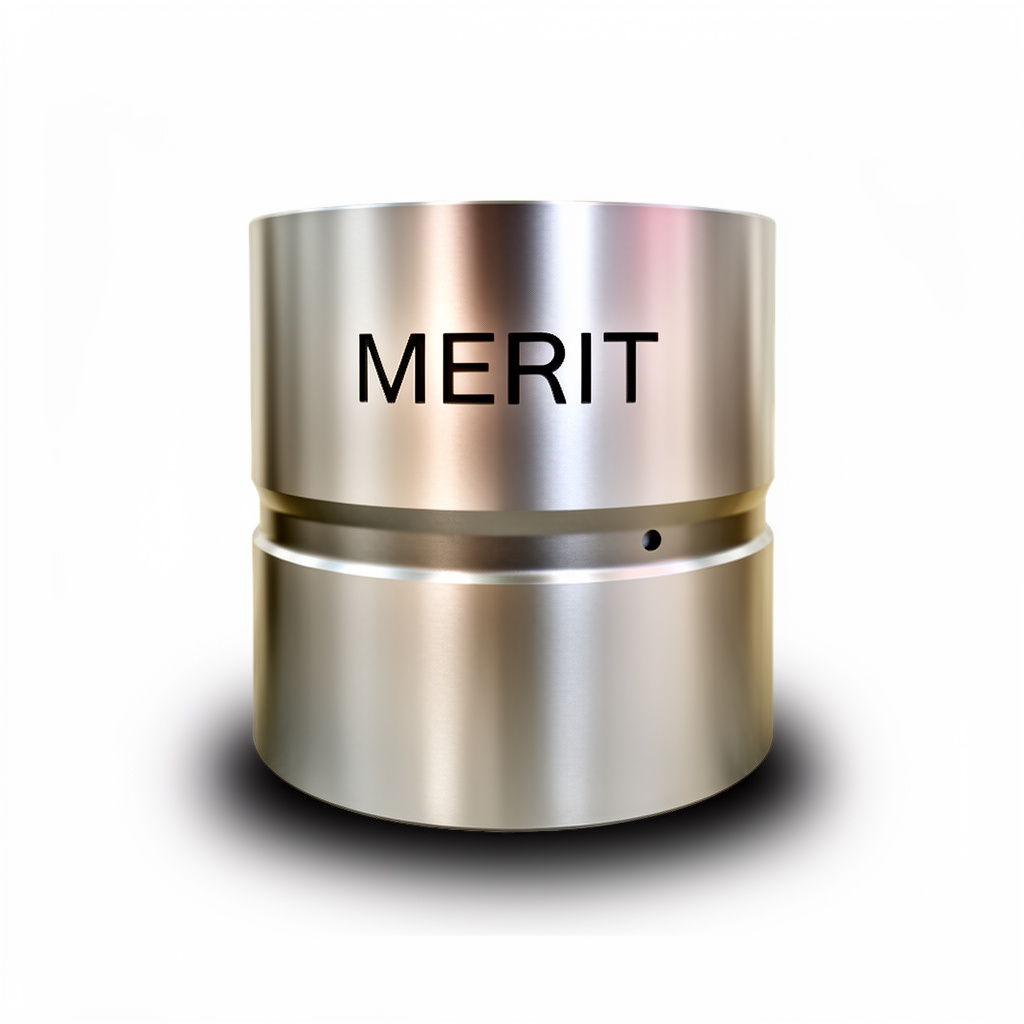

160940 Bushing | Rammer 2577
Built to handle extreme impact and continuous load, the 160940 Bushing for Rammer 2577 plays a critical role in maintaining alignment and reducing wear between key components of the hydraulic breaker.
Manufactured with high-grade steel and precision machining, this bushing ensures long service life even under heavy-duty working conditions such as quarrying, mining, and demolition.
Technical Specifications
- Length: 188 mm
- Diameter: 170 mm
- Weight: 14.01 kg
Key Benefits
- Excellent wear resistance under high impact
- Precision fit for Rammer 2577, 2577E, 2577PRO breakers
- Helps extend the service life of tool and housing
- Reliable performance in harsh working environments
A small component — but a big contributor to breaker efficiency and uptime.
Designed for professionals who cannot afford unplanned downtime.
| Part No. | Description |
|---|---|
| 163106 | Housing |
| 163367 | Pad |
| 163097 | Buffer |
| 164417 | Shield plate |
| 164386 | Service hatch |
| 161833 | Plug |
| 163946 | Plug |
| 163287 | Seal |
| 90605 | Lifting eye |
| 900025 | Hex. screw |
| 910009 | O-ring |
| 164418 | Bushing |
| 952691 | Hose assembly |
| 400637 | Hose coupling |
| 90564 | Hex. socket screw |
| 954330 | O-ring |
| 90589 | Hex. screw |
| 90511 | Washer |
| 90507 | Lock nut |
| 163114 | Wear plate |
| 163374 | Wear plate |
| 172980 | Buffer |
| 163111 | Bottom plate |
| 170454 | Label set |
| 169400 | Safety label set |
2. Housing Unit Boulder Breaking
| Part No. | Description |
|---|---|
| 170313 | Housing |
| 170317 | Spacer plate |
| 170314 | Stone claw |
| 170315 | Stone claw |
| 170316 | Plate |
| 171052 | Wear parts |
(Other parts same as ECO Housing Unit above)
3. Housing Unit Ramlube II ECO, Demolition/Trenching
| Part No. | Description |
|---|---|
| 173522 | Housing |
| 90605 | Lifting eye |
| 900025 | Hex. screw |
4. Accumulator
| Part No. | Description |
|---|---|
| 163070 | Accumulator |
| 163068 | Accumulator bottom |
| 163069 | Accumulator cover |
| 20604 | Membrane |
| 952700 | Accumulator screw |
| 91010 | Lock washer |
| 40368 | Filling plug |
| 154015 | Shield plug |
| 910006 | O-ring |
| 90056 | Usit-ring |
| 90342 | Parallel pin |
| 952686 | Accumulator screw |
| 90597 | Lock washer |
| 163331 | Seal |
5. Main Valve
| Part No. | Description |
|---|---|
| 162984 | Slide ring |
| 162982 | Distributor |
| 162983 | Assembly ring |
6. Pressure Control Valve
| Part No. | Description |
|---|---|
| 170017 | Pressure control valve |
| 160617 | Cover |
| 169887 | Valve housing |
| 170016 | Spool |
| 101466 | Nozzle |
| 155615 | Bushing |
| 155611 | Spring guide |
| 112512 | Plug |
| 90104 | Spring |
| 90017 | O-ring |
| 41374 | Seal |
| 41375 | Seal |
| 41376 | Seal |
| 113138 | Seal |
| 42364 | Shim plate |
| 41793 | Shim plate |
| 41794 | Shim plate |
| 91100 | Hex. socket screw |
| 90597 | Lock washer |
7. Relief Valve
| Part No. | Description |
|---|---|
| 951600 | Relief valve |
| 163118 | Plug |
| 951692 | Seal set for relief valve |
8. Tie Rods
| Part No. | Description |
|---|---|
| 169943 | Tie rod |
| 163272 | Vibration dampening element |
| 952009 | Cable tie |
| 954007 | Split pin |
| 162993 | Washer |
| 162995 | Lock plate |
| 162996 | Washer |
| 91128 | Hex. screw |
| 90597 | Lock washer |
9. Body Parts
| Part No. | Description |
|---|---|
| 170945 | Valve body |
| 101200 | Breather |
| 902122 | O-ring |
| 90403 | Flange plug |
| 93203 | Flange plug |
| 915028 | Plug |
| 161922 | Nozzle |
| 90444 | Flange plug |
| 93125 | Plug |
| 171405 | Cylinder |
| 167862 | Nozzle |
| 952544 | Screw |
| 163010 | Piston |
| 952629 | Wiper |
| 950149 | Seal |
| 151217 | Seal |
| 951544 | Wiper |
| 950150 | Seal |
| 952630 | Seal |
| 94076 | O-ring |
| 162360 | Seal |
| 950058 | O-ring |
| 94035 | O-ring |
| 90342 | Parallel pin |
10. Front Head
(Part list not fully extracted in provided text)
11. Lower Tool Bushing
| Part No. | Description |
|---|---|
| 162958 | Lower tool bushing |
12. Greasing Device
| Part No. | Description |
|---|---|
| 162802 | Greasing device kit |
| 952268 | Greasing device |
| 952258 | Cover |
| 952269 | Pressure indicator |
| 952257 | Guide |
| 952266 | Valve cartridge |
| 952259 | Body |
| 952260 | Spool |
| 952261 | Cover |
| 952410 | O-ring |
| 952411 | O-ring |
| 952416 | Seal |
| 90200 | Grease nipple |
| 952265 | Screw |
| 94104 | O-ring |
| 952267 | Doser cartridge |
| 952263 | Cover |
| 951819 | O-ring |
| 952270 | Retaining ring |
| 952256 | Cylinder |
| 952264 | Piston |
| 952262 | Locking bushing |
| 952255 | Screw |
| 952412 | O-ring |
| 952413 | Seal |
| 166330 | Shim plate |
| 90504 | Hex. socket screw |
| 91037 | Lock washer |
| 952408 | O-ring |
| 952418 | Supporting ring |
| 952704 | O-ring |
| 952624 | Pin |
| 952275 | Piston |
| 952415 | Guide ring |
| 952414 | Seal |
| 901309 | Hex. socket screw |
| 952291 | Adapter |
| 951711 | USIT-ring |
| 952283 | Quick coupler |
| 952292 | Shield plug |
| 162803 | Greasing block for manual greasing |
| 170490 | Cover |
| 952417 | Service kit for greasing device |
13. Greasing Device Refilling Parts
| Part No. | Description |
|---|---|
| 952640 | Grease pump |
| 953510 | Hose assembly |
| 951370 | Grease cartridge |
| 953527 | Seal set for grease pump |
| 954291 | Spring parts |
14. Grease Filling Device Equipment
| Part No. | Description |
|---|---|
| 952278 | Filling adapter |
| 952637 | Filter cartridge |
15. Service Kit for Greasing Device
| Part No. | Description |
|---|---|
| 952417 | Service kit for greasing device |
16. Tool
| Part No. | Description |
|---|---|
| 331 | Chisel |
| 333 | Moll point |
| 334 | Blunt |
17. Seal Set
| Part No. | Description |
|---|---|
| 169913 | Seal set |
18. Service Kit
| Part No. | Description |
|---|---|
| K11533 | Service kit |
| 20604 | Membrane |
| 163252 | Tool retaining pin |
| 162958 | Lower tool bushing |
| 169913 | Seal set |
19. Service Kit 2
| Part No. | Description |
|---|---|
| K21533 | Service kit |
| 163367 | Pad |
| 163097 | Buffer |
| 163114 | Wear plate |
| 163374 | Wear plate |
| 172980 | Buffer |
| 162957 | Upper tool bushing |
20. Greasing Device Ramlube II Kit
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 |
| 173524 | Hose assembly |
| 153035 | Sleeve |
| 153036 | Insert |
| 954555 | Hose |
| 951296 | Nut |
| 152172 | Rubber bushing |
| 152729 | Fitting |
| 953794 | Hex. screw |
| 953503 | Lock washer |
| 951370 | Grease cartridge |
21. Greasing Device Ramlube II
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 |
| 173573 | Doser |
| 173574 | Plug |
| 953330 | Nut |
| 91038 | Lock washer |
| 953325 | O-ring |
| 953317 | Adjusting screw |
| 953326 | O-ring |
| 953324 | O-ring |
| 953331 | Spring |
| 173576 | Piston |
| 953322 | O-ring |
| 953329 | Piston |
| 173575 | Body |
| 953323 | O-ring |
| 953321 | Shim plate |
| 90200 | Grease nipple |
| 953303 | Plug |
| 953302 | Locking plate |
| 953310 | Body |
| 953309 | Cartridge holder |
| 951767 | Check valve |
| 951416 | O-ring |
| 951453 | O-ring |
| 953300 | O-ring |
| 953301 | O-ring |
| 950272 | Guide ring |
| 953299 | Seal |
| 953308 | Spring housing |
| 950257 | Spring |
| 953307 | Piston |
| 953306 | Nut |
| 951410 | Lock plate |
| 951421 | Hex. socket screw |
| 951294 | Connector |
| 953385 | Seal set for greasing device |
22. Service Kit for Greasing Device RG540 Series
| Part No. | Description |
|---|---|
| 953385 | Service kit for greasing device |
23. Tool Box
| Part No. | Description |
|---|---|
| 952646 | Tool box kit 9 |
| 90665 | Tool box |
| 952640 | Grease gun |
| 902045 | Tool grease |
| 6×150 | Screwdriver |
| 2 kg | Hammer |
| 11 | Combination spanner |
| 13 | Combination spanner |
| 24 | Open-end spanner |
| 952539 | Assembling screw |
| 954194 | Assembling screw |
. Housing Unit
| Part No. | Description |
|---|---|
| 172873 | Housing (incl. parts 105–110) |
| 300767 | Buffer |
| 300768 | Pad |
| 165434 | Rubber plug |
| 90589 | Hex. screw |
| 90511 | Washer |
| 90507 | Lock nut |
| 162827 | Wear plate |
| 162840 | Shield plate |
| 102142 | Seal |
| 162657 | Rubber plug |
| 90605 | Lifting eye |
| 900025 | Hex. screw |
| 165566 | Wear parts |
| 177588 | Label set |
| 169400 | Safety label set |
2. Accumulator
| Part No. | Description |
|---|---|
| 162184 | Accumulator (incl. parts 1.1–1.10) |
| 162103 | Accumulator bottom |
| 162104 | Accumulator cover |
| 20604 | Membrane |
| 950125 | Accumulator screw |
| 40368 | Filling plug |
| 90056 | Usit-ring |
| 154015 | Shield plug |
| 90342 | Parallel pin |
| 40104 | Seal |
| 910006 | O-ring |
| 952627 | Accumulator screw |
3. Main Valve
| Part No. | Description |
|---|---|
| 40418 | Cover |
| 162131 | Main valve bushing |
| 162328 | Main spool |
| 162333 | Spool |
| 162335 | Spool |
| 162178 | Seal |
| 90025 | O-ring |
| 90517 | Hex. screw |
| 90597 | Lock washer |
4. Ramvalve
| Part No. | Description |
|---|---|
| 162233 | Ramvalve (incl. parts 1.1–1.10) |
| 158952 | Cover |
| 174665 | Spool |
| 174668 | Valve housing |
| 952162 | Spring |
| 90031 | O-ring |
| 90007 | O-ring |
| 90017 | O-ring |
| 41639 | Shim plate |
| 41640 | Shim plate |
| 954341 | Seal |
| 90517 | Hex. screw |
| 90597 | Lock washer |
5. Pressure Control Valve
| Part No. | Description |
|---|---|
| 162167 | Pressure control valve (incl. parts 1.1–1.15) |
| 162166 | Cover |
| 162692 | Valve housing |
| 162693 | Spool |
| 40364 | Guide |
| 40365 | Spool |
| 162171 | Spring guide |
| 90104 | Spring |
| 41794 | Shim plate |
| 41793 | Shim plate |
| 174182 | Shim plate |
| 162518 | Plug |
| 90018 | O-ring |
| 90000 | O-ring |
| 90019 | O-ring |
| 40391 | Seal |
| 90513 | Hex. screw |
| 91012 | Lock washer |
6. Tie Rods
| Part No. | Description |
|---|---|
| 165572 | Tie rod set (incl. parts 1.3–1.7) |
| 162222 | Vibration dampening element |
| 952009 | Cable tie |
| 40396 | Rubber ring |
| 40367 | Lock plate |
| 162212 | Spacer |
7. Body Parts
| Part No. | Description |
|---|---|
| 162032 | Valve body (incl. parts 1.2–1.9) |
| 162258 | Breather |
| 902122 | O-ring |
| 90424 | Flange plug |
| 90444 | Flange plug |
| 90403 | Flange plug |
| 93203 | Flange plug |
| 400662 | Breather |
| 161922 | Nozzle |
| 161465 | Nozzle |
| 165564 | Cylinder (incl. parts 2.1–2.5) |
| 167862 | Nozzle |
| 952544 | Screw |
| 162089 | Piston |
| 901101 | Parallel pin |
| 952629 | Wiper |
| 950149 | Seal |
| 151217 | Seal |
| 951544 | Wiper |
| 952630 | Seal |
| 162360 | Seal |
| 953787 | O-ring |
| 910016 | O-ring |
8. Front Head
| Part No. | Description |
|---|---|
| 162877 | Front head (incl. part 1.2) |
| 111399 | Plug |
| 162229 | Upper tool bushing |
| 153538 | Tool retaining pin |
| 153539 | Ring |
| 400323 | Retaining pin |
| 104876 | Rubber plug |
9. Lower Tool Bushing
| Part No. | Description |
|---|---|
| 163244 | Lower tool bushing (incl. part 1.2) |
| 162368 | Seal |
10. Tool
| Part No. | Description |
|---|---|
| BB491 | Chisel |
| BB493 | Moil point |
| BB494 | Blunt |
| BB493K3 | Pyramid |
11. Seal Set
| Part No. | Description |
|---|---|
| 162382 | Seal set (kit) |
| 90056 | Usit-ring |
| 40104 | Seal |
| 910006 | O-ring |
| 90018 | O-ring |
| 90000 | O-ring |
| 90019 | O-ring |
| 40391 | Seal |
| 162178 | Seal |
| 90025 | O-ring |
| 90031 | O-ring |
| 90007 | O-ring |
| 90017 | O-ring |
| 902122 | O-ring |
| 952629 | Wiper |
| 950149 | Seal |
| 151217 | Seal |
| 951544 | Wiper |
| 952630 | Seal |
| 162360 | Seal |
| 953787 | O-ring |
| 910016 | O-ring |
| 954341 | Seal |
12. Service Kit
| Part No. | Description |
|---|---|
| 165607 | Service kit (kit) |
| 20604 | Membrane |
| 153538 | Tool retaining pin |
| 163244 | Lower tool bushing |
| 162382 | Seal set |
13. Service Kit 2
| Part No. | Description |
|---|---|
| 165608 | Service kit (kit) |
| 300767 | Buffer |
| 300768 | Pad |
| 162827 | Wear plate |
| 162229 | Upper tool bushing |
14. Manual Greasing
| Part No. | Description |
|---|---|
| 162531 | Hose assembly (incl. parts 2.1–2.8) |
| 153035 | Sleeve |
| 153036 | Insert |
| 952642 | Hose |
| 951296 | Nut |
| 951295 | Connector |
| 951294 | Connector |
| 952621 | Adapter |
| 90200 | Grease nipple |
| 952664 | Pipe clamp |
| 953291 | Plug |
| 953332 | Plug |
15. Greasing Device Kit
| Part No. | Description |
|---|---|
| K60077 | Greasing device retrofit kit |
| 953344 | Greasing device RG541 |
| 168872 | Hose assembly |
| 153035 | Sleeve |
| 153036 | Insert |
| 951632 | Hose |
| 951296 | Nut |
| 158147 | Rubber bushing |
| 952093 | Shield |
| 953794 | Hex. screw |
| 953503 | Lock washer |
| 951370 | Grease cartridge |
| 168029 | Shield |
| 902895 | Hex. socket screw |
| 90597 | Lock washer |
| 951295 | Connector |
| 951294 | Connector |
| 954817 | Hose assembly |
| 955137 | Adapter |
| 955136 | Adapter |
| 951711 | Usit-ring |
| 94092 | Usit-ring |
16. Greasing Device
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 |
| 173573 | Doser |
| 173574 | Plug |
| 953330 | Nut |
| 91038 | Lock washer |
| 953325 | O-ring |
| 953317 | Adjusting screw |
| 953326 | O-ring |
| 953324 | O-ring |
| 953331 | Spring |
| 173576 | Piston |
| 953322 | O-ring |
| 953329 | Piston |
| 173575 | Body |
| 953323 | O-ring |
| 953321 | Shim plate |
| 90200 | Grease nipple |
| 953303 | Plug |
| 953302 | Locking plate |
| 953310 | Body |
| 953309 | Cartridge holder |
| 951767 | Check valve |
| 951416 | O-ring |
| 951453 | O-ring |
| 953300 | O-ring |
| 953301 | O-ring |
| 950272 | Guide ring |
| 953299 | Seal |
| 953308 | Spring housing |
| 950257 | Spring |
| 953307 | Piston |
| 953306 | Nut |
| 951410 | Lock plate |
| 951421 | Hex. socket screw |
| 951294 | Connector |
| 953385 | Seal set for greasing device |
17. Service Kit for Greasing Device RG540 Series
| Part No. | Description |
|---|---|
| 953385 | Service kit for greasing device |
| 951410 | Lock plate |
| 953303 | Plug |
| 950272 | Guide ring |
| 953299 | Seal |
| 953300 | O-ring |
| 951453 | O-ring |
| 953301 | O-ring |
| 951416 | O-ring |
| 953326 | O-ring |
| 953325 | O-ring |
| 953324 | O-ring |
| 953323 | O-ring |
| 953322 | O-ring |
| 953321 | Shim plate |
| 953331 | Spring |
| 953329 | Piston |
| 91038 | Lock washer |
| 90200 | Grease nipple |
| 953302 | Locking plate |
18. Ramdata II Service Indicator
| Part No. | Description |
|---|---|
| 159143 | Ramdata II service indicator |
| 91020 | Hex. socket screw |
| 91011 | Lock washer |
19. Tool Box R1
| Part No. | Description |
|---|---|
| 173747 | Tool box R1 (kit) |
| N/A | Tool box |
| 90202 | Grease gun |
| 902045 | Tool grease |
| 951370 | Grease cartridge |
| 150020 | Puller |
| N/A | Combination spanner |
| N/A | Screwdriver |
| 90444 | Flange plug |
| 90403 | Flange plug |
| 90200 | Grease nipple |
| 953767 | Grease nipple |
| N/A | Safety glasses |
| 954194 | Assembling screw |
20–23. Coupling Sets
| Part No. | Description |
|---|---|
| 400516 | Coupling set (kit) |
| 90530 | Flange |
| 90010 | O-ring |
| 90564 | Hexagon socket screw |
| 400510 | Coupling set (kit) |
| 915066 | Flange |
| 90010 | O-ring |
| 90564 | Hexagon socket screw |
| 400520 | Coupling set (kit) |
| 915054 | Flange |
| 90010 | O-ring |
| 90564 | Hexagon socket screw |
| 400513 | Coupling set (kit) |
| 915070 | Flange |
| 90010 | O-ring |
| 90564 | Hexagon socket screw |
| Part No. | Description |
|---|---|
| 160773 | Housing |
| 160678 | Pad |
| 301000 | Buffer |
| 159327 | Shield plate |
| 160812 | Service hatch |
| 153024 | Plug |
| 102086 | Plug |
| 155187 | Seal |
| 90605 | Lifting eye |
| 900025 | Hex. screw |
| 94061 | O-ring |
| 160925 | Bushing |
| 952389 | Hose assembly |
| 400638 | Hose coupling |
| 101336 | Bushing |
| 90009 | O-ring |
| 90593 | Hex. socket screw |
| 951690 | O-ring |
| 90589 | Hex. screw |
| 90511 | Washer |
| 90507 | Lock nut |
| 157940 | Wear plate |
| 171543 | Buffer |
| 160752 | Bottom plate |
| 170455 | Label set |
| 169400 | Safety label set |
2. Housing Unit Boulder Breaking
| Part No. | Description |
|---|---|
| 162777 | Housing |
| 163124 | Wear parts |
| 162778 | Spacer plate |
| 162769 | Stone claw |
| 162771 | Stone claw |
| 162770 | Plate |
3. Housing Unit Ramlube II ECO, Demolition/Trenching
| Part No. | Description |
|---|---|
| 173528 | Housing |
4. Accumulator
| Part No. | Description |
|---|---|
| 154008 | Accumulator |
| 150108 | Accumulator bottom |
| 154009 | Accumulator cover |
| 30190 | Membrane |
| 900022 | Accumulator screw |
| 91010 | Lock washer |
| 40368 | Filling plug |
| 154015 | Shield plug |
| 910006 | O-ring |
| 90056 | Usit-ring |
| 90304 | Parallel pin |
| 40104 | Seal |
5. Main Valve
| Part No. | Description |
|---|---|
| 113175 | Slide ring |
| 113173 | Distributor |
| 113174 | Assembly ring |
6. Pressure Control Valve
| Part No. | Description |
|---|---|
| 160618 | Pressure control valve |
| 160617 | Cover |
| 155612 | Valve housing |
| 155613 | Spool |
| 155615 | Bushing |
| 155611 | Spring guide |
| 112512 | Plug |
| 90104 | Spring |
| 90017 | O-ring |
| 41374 | Seal |
| 41375 | Seal |
| 41376 | Seal |
| 113138 | Seal |
| 42364 | Shim plate |
| 41793 | Shim plate |
| 41794 | Shim plate |
| 91100 | Hex. socket screw |
| 90597 | Lock washer |
7. Relief Valve
| Part No. | Description |
|---|---|
| 951600 | Relief valve |
| 163118 | Plug |
| 951692 | Seal set for relief valve |
8. Tie Rods
| Part No. | Description |
|---|---|
| 162244 | Tie rod |
| 157939 | Vibration dampening element |
| 952009 | Cable tie |
| 952173 | Split pin |
| 157957 | Washer |
| 160402 | Lock plate |
| 160473 | Washer |
| 90538 | Hex. screw |
| 91010 | Lock washer |
9. Body Parts
| Part No. | Description |
|---|---|
| 170943 | Valve body |
| 101200 | Breather |
| 902122 | O-ring |
| 90403 | Flange plug |
| 93203 | Flange plug |
| 915028 | Plug |
| 161922 | Nozzle |
| 90444 | Flange plug |
| 93125 | Plug |
| 171404 | Cylinder |
| 161470 | Nozzle |
| 952544 | Screw |
| 156786 | Piston |
| 951544 | Wiper |
| 950150 | Seal |
| 155560 | Seal |
| 951545 | Wiper |
| 951546 | Seal |
| 951833 | Seal |
| 952174 | O-ring |
| 400341 | Seal |
| 90011 | O-ring |
| 951383 | O-ring |
| 951668 | Parallel pin |
10. Front Head
| Part No. | Description |
|---|---|
| 170944 | Front head |
| 155541 | Upper tool bushing |
| 155537 | Tool retaining pin |
| 153539 | Ring |
| 150360 | Retaining pin |
| 104876 | Rubber plug |
11. Lower Tool Bushing
| Part No. | Description |
|---|---|
| 155542 | Lower tool bushing |
12. Greasing Device
| Part No. | Description |
|---|---|
| 162802 | Greasing device kit |
| 952268 | Greasing device |
| 952258 | Cover |
| 952269 | Pressure indicator |
| 952257 | Guide |
| 952266 | Valve cartridge |
| 952259 | Body |
| 952260 | Spool |
| 952261 | Cover |
| 952410 | O-ring |
| 952411 | O-ring |
| 952416 | Seal |
| 90200 | Grease nipple |
| 952265 | Screw |
| 94104 | O-ring |
| 952267 | Doser cartridge |
| 952263 | Cover |
| 951819 | O-ring |
| 952270 | Retaining ring |
| 952256 | Cylinder |
| 952264 | Piston |
| 952262 | Locking bushing |
| 952255 | Screw |
| 952412 | O-ring |
| 952413 | Seal |
| 166330 | Shim plate |
| 90504 | Hex. socket screw |
| 91037 | Lock washer |
| 952408 | O-ring |
| 952418 | Supporting ring |
| 952704 | O-ring |
| 952624 | Pin |
| 952275 | Piston |
| 952415 | Guide ring |
| 952414 | Seal |
| 901309 | Hex. socket screw |
| 952291 | Adapter |
| 951711 | USIT-ring |
| 952283 | Quick coupler |
| 952292 | Shield plug |
| 162803 | Greasing block for manual greasing |
| 170490 | Cover |
| 952417 | Service kit for greasing device |
13. Greasing Device Refilling Parts
| Part No. | Description |
|---|---|
| 952640 | Grease pump |
| 953510 | Hose assembly |
| 951370 | Grease cartridge |
| 953527 | Seal set for grease pump |
| 954291 | Spring parts |
14. Grease Filling Device Equipment
| Part No. | Description |
|---|---|
| 952278 | Grease filling device |
| 952637 | Filter cartridge |
15. Service Kit for Greasing Device
| Part No. | Description |
|---|---|
| 952417 | Service kit for greasing device |
16. Tool
| Part No. | Description |
|---|---|
| 551 | Chisel |
| 553 | Moil point |
| 554 | Blunt |
| 552 | Long chisel |
| 558 | Long moil point |
| 554C1 | Long blunt |
| 551F3 | Limestone chisel |
| 553K3 | Pyramid |
17. Seal Set
| Part No. | Description |
|---|---|
| 159281 | Seal set |
| 951692 | Seal set for relief valve |
| 952173 | Split pin |
18. Service Kit
| Part No. | Description |
|---|---|
| K12155 | Service kit |
| 30190 | Membrane |
| 155537 | Tool retaining pin |
| 155542 | Lower tool bushing |
| 159281 | Seal set |
19. Service Kit 2
| Part No. | Description |
|---|---|
| K22155 | Service kit |
| 160678 | Pad |
| 301000 | Buffer |
| 157940 | Wear plate |
| 171543 | Buffer |
| 155541 | Upper tool bushing |
20. Greasing Device Ramlube II Kit
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 |
| 173524 | Hose assembly |
| 153035 | Sleeve |
| 153036 | Insert |
| 954555 | Hose |
| 951296 | Nut |
| 152172 | Rubber bushing |
| 152729 | Fitting |
| 953794 | Hex. screw |
| 953503 | Lock washer |
| 951370 | Grease cartridge |
21. Greasing Device Ramlube II
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 |
| 173573 | Doser |
| 173574 | Plug |
| 953330 | Nut |
| 91038 | Lock washer |
| 953325 | O-ring |
| 953317 | Adjusting screw |
| 953326 | O-ring |
| 953324 | O-ring |
| 953331 | Spring |
| 173576 | Piston |
| 953322 | O-ring |
| 953329 | Piston |
| 173575 | Body |
| 953323 | O-ring |
| 953321 | Shim plate |
| 90200 | Grease nipple |
| 953303 | Plug |
| 953302 | Locking plate |
| 953310 | Body |
| 953309 | Cartridge holder |
| 951767 | Check valve |
| 951416 | O-ring |
| 951453 | O-ring |
| 953300 | O-ring |
| 953301 | O-ring |
| 950272 | Guide ring |
| 953299 | Seal |
| 953308 | Spring housing |
| 950257 | Spring |
| 953307 | Piston |
| 953306 | Nut |
| 951410 | Lock plate |
| 951421 | Hex. socket screw |
| 951294 | Connector |
| 953385 | Seal set for greasing device |
22. Service Kit for Greasing Device RG540 Series
| Part No. | Description |
|---|---|
| 953385 | Service kit for greasing device |
| 951410 | Lock plate |
| 953303 | Plug |
| 950272 | Guide ring |
| 953299 | Seal |
| 953300 | O-ring |
| 951453 | O-ring |
| 953301 | O-ring |
| 951416 | O-ring |
| 953326 | O-ring |
| 953325 | O-ring |
| 953324 | O-ring |
| 953323 | O-ring |
| 953322 | O-ring |
| 953321 | Shim plate |
| 953331 | Spring |
| 953329 | Piston |
| 91038 | Lock washer |
| 90200 | Grease nipple |
| 953302 | Locking plate |
23. Tool Box
| Part No. | Description |
|---|---|
| 952646 | Tool box kit 9 |
| 90665 | Tool box |
| 952640 | Grease gun |
| 902045 | Tool grease |
| 952539 | Assembling screw |
| 954194 | Assembling screw |
| Part No. | Description |
|---|---|
| 172876 | Housing (incl. parts 105–110) |
| 301000 | Buffer |
| 301001 | Pad |
| 165434 | Rubber plug |
| 90589 | Hex. screw |
| 90511 | Washer |
| 90507 | Lock nut |
| 162654 | Wear plate |
| 162381 | Shield plate |
| 102142 | Seal |
| 162657 | Rubber plug |
| 90605 | Lifting eye |
| 900025 | Hex. screw |
| 165567 | Wear parts |
| 173090 | Label set (incl. part 200.1) |
| 169400 | Safety label set |
2. Accumulator
| Part No. | Description |
|---|---|
| 163225 | Accumulator (incl. parts 1.1–1.10) |
| 100303 | Accumulator bottom |
| 163226 | Accumulator cover |
| 30211 | Membrane |
| 40416 | Accumulator screw |
| 40368 | Filling plug |
| 90056 | Usit-ring |
| 154015 | Shield plug |
| 90304 | Parallel pin |
| 40104 | Seal |
| 910006 | O-ring |
| 900050 | Accumulator screw |
3. Main Valve
| Part No. | Description |
|---|---|
| 103841 | Main valve bushing |
| 162192 | Main spool |
| 162194 | Spool |
| 400325 | Spool |
| 162114 | Cover |
| 300459 | Cover |
| 90005 | O-ring |
| 902668 | Seal |
| 900023 | Hex. screw |
| 91012 | Lock washer |
4. Ramvalve
| Part No. | Description |
|---|---|
| 162168 | Ramvalve (incl. parts 1.1–1.10) |
| 158952 | Cover |
| 174665 | Spool |
| 162169 | Valve housing |
| 952162 | Spring |
| 90031 | O-ring |
| 90007 | O-ring |
| 90017 | O-ring |
| 41639 | Shim plate |
| 41640 | Shim plate |
| 954341 | Seal |
| 90517 | Hex. screw |
| 90597 | Lock washer |
5. Pressure Control Valve
| Part No. | Description |
|---|---|
| 163327 | Pressure control valve (incl. parts 1.1–1.15) |
| 161413 | Cover |
| 161908 | Valve housing |
| 174139 | Spool |
| 400688 | Guide |
| 400690 | Spool |
| 161433 | Spring guide |
| 90104 | Spring |
| 41794 | Shim plate |
| 41793 | Shim plate |
| 174182 | Shim plate |
| 112512 | Plug |
| 90083 | O-ring |
| 910018 | O-ring |
| 41374 | Seal |
| 41375 | Seal |
| 90517 | Hex. screw |
| 90597 | Lock washer |
6. Tie Rods
| Part No. | Description |
|---|---|
| 165573 | Tie rod set (incl. parts 1.3–1.7) |
| 162162 | Vibration dampening element |
| 952009 | Cable tie |
| 400343 | Rubber ring |
| 400480 | Lock plate |
| 162137 | Spacer |
7. Body Parts
| Part No. | Description |
|---|---|
| 162043 | Valve body (incl. parts 1.2–1.10) |
| 101200 | Breather (incl. part 1.21) |
| 902122 | O-ring |
| 90401 | Flange plug (R3/4) |
| 90444 | Flange plug (R3/8) |
| 90403 | Flange plug (R1/4) |
| 93203 | Flange plug (R1/8) |
| 400662 | Breather |
| 161922 | Nozzle |
| 161465 | Nozzle |
| 93125 | Taper plug |
| 165480 | Cylinder (incl. parts 2.1–2.5) |
| 161470 | Nozzle |
| 952544 | Screw |
| 162935 | Piston |
| 901101 | Parallel pin |
| 951544 | Wiper |
| 950150 | Seal |
| 155560 | Seal |
| 951545 | Wiper |
| 951833 | Seal |
| 162170 | Seal |
| 953790 | O-ring |
| 94133 | O-ring |
8. Front Head
| Part No. | Description |
|---|---|
| 162879 | Front head (incl. part 1.2) |
| 111399 | Plug |
| 162136 | Upper tool bushing |
| 162083 | Tool retaining pin |
| 153044 | Ring |
| 150360 | Retaining pin |
| 104876 | Rubber plug |
9. Lower Tool Bushing
| Part No. | Description |
|---|---|
| 163248 | Lower tool bushing (incl. part 1.2) |
| 162135 | Seal |
| 90002 | O-ring |
10. Tool
| Part No. | Description |
|---|---|
| BB651 | Chisel |
| BB653 | Moil point |
| BB654 | Blunt |
| BB653K3 | Pyramid |
11. Seal Set
| Part No. | Description |
|---|---|
| 163733 | Seal set (kit) |
| 90031 | O-ring |
| 90007 | O-ring |
| 90017 | O-ring |
| 40104 | Seal |
| 910006 | O-ring |
| 90083 | O-ring |
| 910018 | O-ring |
| 41374 | Seal |
| 41375 | Seal |
| 90005 | O-ring |
| 902668 | Seal |
| 902122 | O-ring |
| 951544 | Wiper |
| 950150 | Seal |
| 155560 | Seal |
| 951545 | Wiper |
| 951833 | Seal |
| 162170 | Seal |
| 953790 | O-ring |
| 94133 | O-ring |
| 90002 | O-ring |
| 954341 | Seal |
12. Service Kit
| Part No. | Description |
|---|---|
| 165605 | Service kit (kit) |
| 30211 | Membrane |
| 162083 | Tool retaining pin |
| 163248 | Lower tool bushing |
| 163733 | Seal set |
13. Service Kit 2
| Part No. | Description |
|---|---|
| 165606 | Service kit (kit) |
| 301000 | Buffer |
| 301001 | Pad |
| 162654 | Wear plate |
| 162136 | Upper tool bushing |
14. Manual Greasing
| Part No. | Description |
|---|---|
| 162531 | Hose assembly (incl. parts 2.1–2.8) |
| 153035 | Sleeve |
| 153036 | Insert |
| 952642 | Hose |
| 951296 | Nut |
| 951295 | Connector |
| 951294 | Connector |
| 952621 | Adapter |
| 90200 | Grease nipple |
| 952664 | Pipe clamp |
| 953291 | Plug |
| 953332 | Plug |
15. Greasing Device Kit
| Part No. | Description |
|---|---|
| K60077 | Greasing device retrofit kit (kit) |
| 953344 | Greasing device RG541 |
| 168872 | Hose assembly (incl. parts 3.1–3.4) |
| 153035 | Sleeve |
| 153036 | Insert |
| 951632 | Hose |
| 951296 | Nut |
| 158147 | Rubber bushing |
| 952093 | Shield |
| 953794 | Hex. screw |
| 953503 | Lock washer |
| 951370 | Grease cartridge |
| 168029 | Shield |
| 902895 | Hex. socket screw |
| 90597 | Lock washer |
| 951295 | Connector |
| 951294 | Connector |
| 954817 | Hose assembly |
16. Greasing Device
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 (incl. parts 2–21) |
| 173573 | Doser (incl. parts 2.1–2.14) |
| 173574 | Plug |
| 953330 | Nut |
| 91038 | Lock washer |
| 953325 | O-ring |
| 953317 | Adjusting screw |
| 953326 | O-ring |
| 953324 | O-ring |
| 953331 | Spring |
| 173576 | Piston |
| 953322 | O-ring |
| 953329 | Piston |
| 173575 | Body |
| 953323 | O-ring |
| 953321 | Shim plate |
| 90200 | Grease nipple |
| 953303 | Plug |
| 953302 | Locking plate |
| 953310 | Body |
| 953309 | Cartridge holder |
| 951767 | Check valve |
| 951416 | O-ring |
| 951453 | O-ring |
| 953300 | O-ring |
| 953301 | O-ring |
| 950272 | Guide ring |
| 953299 | Seal |
| 953308 | Spring housing |
| 950257 | Spring |
| 953307 | Piston |
| 953306 | Nut |
| 951410 | Lock plate |
| 951421 | Hex. socket screw |
| 951294 | Connector |
| 953385 | Seal set for greasing device |
17. Service Kit for Greasing Device RG540 Series
| Part No. | Description |
|---|---|
| 953385 | Service kit for greasing device (kit) |
| 951410 | Lock plate |
| 953303 | Plug |
| 950272 | Guide ring |
| 953299 | Seal |
| 953300 | O-ring |
| 951453 | O-ring |
| 953301 | O-ring |
| 951416 | O-ring |
| 953326 | O-ring |
| 953325 | O-ring |
| 953324 | O-ring |
| 953323 | O-ring |
| 953322 | O-ring |
| 953321 | Shim plate |
| 953331 | Spring |
| 953329 | Piston |
| 91038 | Lock washer |
| 90200 | Grease nipple |
| 953302 | Locking plate |
18. Ramdata II Service Indicator
| Part No. | Description |
|---|---|
| 159143 | Ramdata II service indicator (incl. parts 1.2–1.3) |
| 91020 | Hex. socket screw |
| 91011 | Lock washer |
19. Tool Box R1
| Part No. | Description |
|---|---|
| 173747 | Tool box R1 (kit) |
| 90202 | Grease gun |
| 902045 | Tool grease |
| 951370 | Grease cartridge |
| 150020 | Puller |
| 90444 | Flange plug |
| 90403 | Flange plug |
| 90200 | Grease nipple |
| 953767 | Grease nipple |
| 954194 | Assembling screw |
20. Coupling Set
| Part No. | Description |
|---|---|
| 400587 | Coupling set (kit) |
| 90531 | Flange |
| 90009 | O-ring |
| 90593 | Hexagon socket screw |
1. Housing Unit Heavy Duty
- Housing – 168069
- Pad – 300954
- Buffer – 301000
- Rubber plug – 400491
- Hose assembly – 162531
- Grease nipple – 90200
- Pipe clamping – 952664
- Body – 952618
- Plate – 903300
- Hex. screw – 903094
- Hex. screw – 90589
- Washer – 90511
- Lock nut – 90507
- Wear parts – 165789
- Plug – 953291
- Rubber plug – 161785
- Seal – 161535
- Wear plate – 162488
- Lifting eye – 90705
- Hex. screw – 900026
- Shield plate – 162381
- Label set – 170435
- Safety label set – 169400
2. Housing Unit Heavy Duty Primary Breaking
- Housing – 168069
- Pad – 300954
- Buffer – 172696
- Rubber plug – 165434
- Hose assembly – 162531
- Grease nipple – 90200
- Pipe clamping – 952664
- Body – 952618
- Plate – 903300
- Hex. screw – 903094
- Hex. screw – 90589
- Washer – 90511
- Lock nut – 90507
- Wear parts – 165789
- Plug – 953291
- Plug – 953332
- Rubber plug – 161785
- Seal – 161535
- Wear plate – 162488
- Lifting eye – 90705
- Hex. screw – 900026
- Shield plate – 162381
- Label set – 170435
- Safety label set – 169400
3. Accumulator
- Accumulator – 163209
- Accumulator bottom – 100672
- Accumulator cover – 163210
- Membrane – 30211
- Accumulator screw – 40416
- Filling plug – 40368
- Seal – 40104
- Shield plug – 154015
- Usit-ring – 90056
- Parallel pin – 90304
- O-ring – 910006
- Accumulator screw – 951208
4. Main Valve
- Main valve bushing – 156302
- Main spool – 161436
- Spool – 40111
- Spool – 400325
- Cover – 161280
- Cover – 30776
- O-ring – 90005
- Seal – 902668
- Hex. screw – 90517
- Lock washer – 90597
5. Ramvalve
- Ramvalve – 158955
- Cover – 158952
- Spool – 174665
- Valve housing – 158953
- Spring – 952162
- O-ring – 90031
- O-ring – 90007
- O-ring – 90017
- Shim plate – 41639
- Shim plate – 41640
- Seal – 954341
- Hex. screw – 90517
- Lock washer – 90597
6. Pressure Control Valve
- Pressure control valve – 161421
- Cover – 161413
- Valve housing – 161908
- Spool – 161909
- Guide – 400688
- Spool – 400690
- Spring guide – 161433
- Spring – 90104
- Shim plate – 41794
- Shim plate – 41793
- Shim plate – 174182
- Plug – 112512
- O-ring – 90083
- O-ring – 910018
- Seal – 41374
- Seal – 41375
- Hex. screw – 90517
- Lock washer – 90597
7. Tie Rods
- Tie rod set – 162977
- Vibration dampening element – 160995
- Cable tie – 952009
- Rubber ring – 400661
- Lock plate – 400659
- Spacer – 160968
8. Body Parts Heavy Duty
- Valve body – 161388
- Breather – 101200
- O-ring – 902122
- Flange plug – 90401
- Flange plug – 90444
- Flange plug – 90403
- Flange plug – 93203
- Breather – 400662
- Taper plug – 93125
- Nozzle – 161922
- Nozzle – 161465
- Cylinder – 162492
- Piston – 161015
- Parallel pin – 904017
- Wiper – 952635
- Seal – 955108
- Seal – 953984
- Seal – 161601
- Wiper – 952636
- Seal – 952579
- Seal – 953985
- Seal – 400663
- O-ring – 953941
- O-ring – 90076
9. Body Parts Heavy Duty Primary Breaking
- Valve body – 161388
- Breather – 101200
- O-ring – 902122
- Flange plug – 90401
- Flange plug – 90444
- Flange plug – 90403
- Flange plug – 93203
- Breather – 400662
- Taper plug – 93125
- Nozzle – 161922
- Nozzle – 161465
- Cylinder – 162492
- Piston – 161015
- Parallel pin – 904017
- Wiper – 952635
- Seal – 953984
- Seal – 161601
- Wiper – 952636
- Seal – 952579
- Seal – 953985
- Seal – 400663
- O-ring – 953941
- O-ring – 90076
10. Front Head
- Front head – 162491
- Upper tool bushing – 160940
- Tool retaining pin – 160942
- Ring – 153236
- Retaining pin – 400655
- Rubber plug – 104530
11. Lower Tool Bushing
- Lower tool bushing – 163214
- Seal – 161409
12. Tool
- Chisel – 771
- M oil point – 773
- Blunt – 774
- Long chisel – 772
- Long m oil point – 778
- Pyramid – 773K3
- Long blunt – 774C1
- Limestone Chisel – 771F3
- Hard Rock Chisel – 771A2
- Super Blunt – 774T2
13. Seal Set Heavy Duty
- Seal set – 162783
- Seal – 40104
- O-ring – 910006
- Usit-ring – 90056
- O-ring – 90005
- Seal – 902668
- O-ring – 90031
- O-ring – 90007
- O-ring – 90017
- O-ring – 90083
- O-ring – 910018
- Seal – 41374
- Seal – 41375
- O-ring – 902122
- Wiper – 952635
- Seal – 955108
- Seal – 161601
- Wiper – 952636
- Seal – 952579
- Seal – 400663
- O-ring – 90076
- O-ring – 953941
- Seal – 954341
14. Seal Set, Heat Resistant Heavy Duty Primary Breaking
- Seal set – 170330
- Seal – 40104
- O-ring – 910006
- Usit-ring – 90056
- O-ring – 90005
- Seal – 902668
- O-ring – 90031
- O-ring – 90007
- O-ring – 90017
- O-ring – 90083
- O-ring – 910018
- Seal – 41374
- Seal – 41375
- O-ring – 902122
- Wiper – 952635
- Seal – 953984
- Seal – 161601
- Wiper – 952636
- Seal – 952579
- Seal – 400663
- O-ring – 90076
- O-ring – 953941
- Seal – 953985
- Seal – 954341
15. Service Kit Heavy Duty
- Service kit – K12577
- Membrane – 30211
- Tool retaining pin – 160942
- Lower tool bushing – 163214
- Seal set – 162783
16. Service Kit 2A Heavy Duty
- Service kit – K22577
- Pad – 300954
- Buffer – 301000
- Wear plate – 162488
- Upper tool bushing – 160940
17. Service Kit 2D Heavy Duty Primary Breaking
- Service kit – K2D2577
- Pad – 300954
- Buffer – 172696
- Wear plate – 162488
- Upper tool bushing – 160940
18. Manual Greasing Heavy Duty
- Hose assembly – 162531
- Sleeve – 153035
- Insert – 153036
- Hose – 952642
- Nut – 951296
- Connector – 951295
- Connector – 951294
- Adapter – 952621
- Grease nipple – 90200
- Pipe clamp – 952664
- Plug – 953291
- Plug – 953332
19. Greasing Device Kit Heavy Duty
- Greasing device retrofit kit – K60077
- Greasing device RG541 – 953344
- Hose assembly – 168872
- Sleeve – 153035
- Insert – 153036
- Hose – 951632
- Nut – 951296
- Rubber bushing – 158147
- Shield – 952093
- Hex. screw – 953794
- Lock washer – 953503
- Grease cartridge – 951370
- Shield – 168029
- Hex. socket screw – 902895
- Lock washer – 90597
- Connector – 951295
- Connector – 951294
- Hose assembly – 954817
20. Greasing Device Heavy Duty
- Greasing device RG541 – 953344
- Doser – 173573
- Plug – 173574
- Nut – 953330
- Lock washer – 91038
- O-ring – 953325
- Adjusting screw – 953317
- O-ring – 953326
- O-ring – 953324
- Spring – 953331
- Piston – 173576
- O-ring – 953322
- Piston – 953329
- Body – 173575
- O-ring – 953323
- Shim plate – 953321
- Grease nipple – 90200
- Plug – 953303
- Locking plate – 953302
- Body – 953310
- Cartridge holder – 953309
- Check valve – 951767
- O-ring – 951416
- O-ring – 951453
- O-ring – 953300
- O-ring – 953301
- Guide ring – 950272
- Seal – 953299
- Spring housing – 953308
- Spring – 950257
- Piston – 953307
- Nut – 953306
- Lock plate – 951410
- Hex. socket screw – 951421
- Connector – 951294
- Seal set for greasing device – 953385
21. Service Kit for Greasing Device RG540 Series Heavy Duty
- Service kit – 953385
- Lock plate – 951410
- Plug – 953303
- Guide ring – 950272
- Seal – 953299
- O-ring – 953300
- O-ring – 951453
- O-ring – 953301
- O-ring – 951416
- O-ring – 953326
- O-ring – 953325
- O-ring – 953324
- O-ring – 953323
- O-ring – 953322
- Shim plate – 953321
- Spring – 953331
- Piston – 953329
- Lock washer – 91038
- Grease nipple – 90200
- Locking plate – 953302
22. Ramdata II Service Indicator
- Ramdata II service indicator – 159143
- Hex. socket screw – 91020
- Lock washer – 91011
23. Tool Box R1
- Tool box R1 – 173747
- Grease gun – 90202
- Tool grease – 902045
- Grease cartridge – 951370
- Puller – 150020
- Combination spanner – N/A
- Screwdriver – N/A
- Flange plug – 90444
- Flange plug – 90403
- Grease nipple – 90200
- Grease nipple – 953767
- Safety glasses – N/A
- Assembling screw – 954194
24. Coupling Set
- Coupling set – 400587
- Flange – 90531
- O-ring – 90009
- Hexagon socket screw – 90593
25. Coupling Set
- Coupling set – 400599
- Flange – 915069
- O-ring – 90009
- Hexagon socket screw – 90593
26. Coupling Set
- Coupling set – 400591
- Flange – 915055
- O-ring – 90009
- Hexagon socket screw – 90593
27. Coupling Set
- Coupling set – 400590
- Flange – 915071
- O-ring – 90009
- Hexagon socket screw – 90593
Rock Breaker Store
Leave a comment
