MERIT – Votre Référence en Pièces pour Brise-Roches Hydrauliques
Depuis plus de 20 ans, MERIT fabrique et fournit des pièces de rechange hautes performances pour brise-roches hydrauliques, conçues pour garantir fiabilité, longévité et productivité maximale sur vos chantiers les plus exigeants.
Nous proposons une gamme complète incluant :
✅ Kits de joints / pochettes de rechange
✅ Membrane / diaphragme
✅ Piston de frappe
✅ Cylindre
✅ Butée d’emmanchement
✅ Douille supérieure & inférieure
✅ Clavette de retenue
✅ Guide avant
✅ Vis d’assemblage
✅ Outils (pointerolle, burin, blunt, etc.)
… ainsi que toutes les pièces d’usure générales.
Chaque composant MERIT est fabriqué avec une précision optimale pour offrir :
✔️ Compatibilité parfaite
✔️ Performance constante
✔️ Durée de vie prolongée
✔️ Coût d’exploitation réduit
Compatibles avec les plus grandes marques mondiales :
Atlas Copco, Caterpillar, Chicago Pneumatic, DNB, Epiroc, Furukawa, Indeco, Krupp, Montabert, MSB, MTB, NPK, Rammer, Sandvik.
📩 Contactez-nous pour obtenir la pièce adaptée à votre modèle — nous sommes à votre service.
MERIT — La performance qui fait la différence.
www.meritautomotive.com
info@meritautomotive.com
Location: Camlik Mahallesi, Ikbal Caddesi, Dinc Sokak, No:4, Muyar Plaza,
Suite 26, Umraniye, 34774, Istanbul, TR
- Repère non utilisé
- Vis de gonflage
- Bague BS
- Vis CHc UNF3/4”
- Flasque supérieur
- Kit membrane
- Flasque inférieur
- Bague nylon
- Joint torique
- Joint torique
- Bouchon fileté
- Joint torique
- Bouchon fileté
- Joint torique
- Cimblot comprenant :
- Bague
- Tiroir
- Bouchon fileté
- Joint torique
- Corps de clapet
- Clapet
- Chemise de clapet
- Bouchon fileté
- Joint torique
- Rondelle de calage
- Axe lisse
- Ressort
- Tiroir
- Genouillère 1”1/4 NPTF comprenant :
- Bouchon fileté
- Joint torique
- Bouchon plastique
- Bouchon fileté
- Joint torique
- Clapet
- Ressort
- Joint à lèvres
- Genouillère 1”1/4 NPTF comprenant :
- Bouchon fileté
- Joint torique
- Bouchon plastique
- Chemise de clapet
- Bouchon fileté
- Joint d’étanchéité
- Joint torique
- Tiroir de distribution
- Distributeur
- Tige
- Valve de décompression
- Axe lisse
- Joint de piston
- Piston de poussée
- Piston de frappe
- Axe lisse
- Capot complet comprenant
- Joint torique
- Chemise de cylindre
- Joint torique
- Cylindre
- Joint de tige
- Axe lisse
- Siège de bille
- Bille
- Ressort
- Entretoise
- Repère non utilisé
- Joint à lèvres
- Butée d’emmanchement
- Axe lisse
- Jonc
- Goupille élastique
- Verrou
- Guide ressort
- Ressort
- Bouchon
- Clavette de retenue
- Guide avant

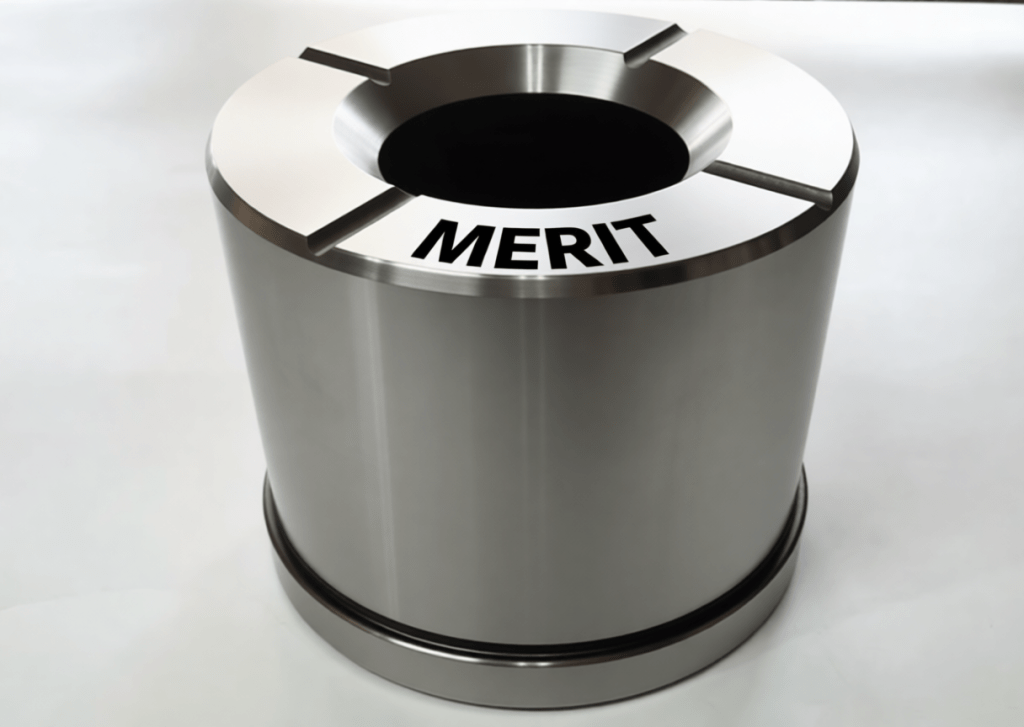

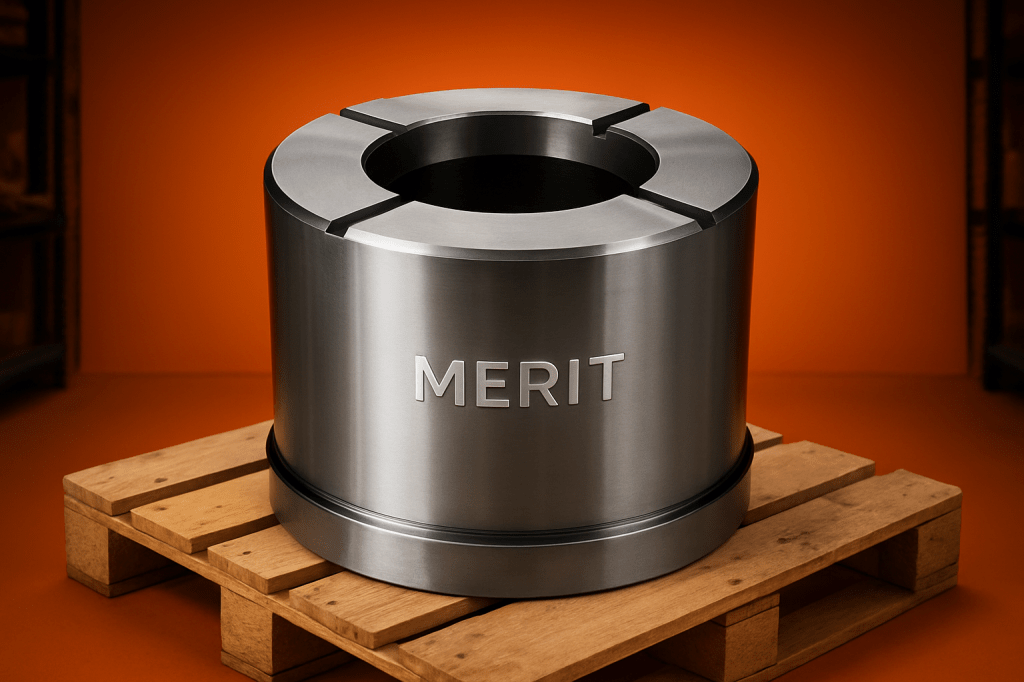

- Douille supérieure
- Douille inférieure
- Bouchon plastique
- Vis d’assemblage
- Ecrou
| MSB Breaker | MS500H | B1506360 |
| MSB Hammer | MS500H | B1506080 |
| MSB Breaker | MS500H | B1506070 |
| MSB Hammer | MS500H | B1506090 |
| MSB Breaker | MS500H | B1500090 |
| MSB Hammer | MS500H | B1500080 |
| MSB Breaker | MS500H | B1500030 |
| MSB Hammer | MS500H | B1500070 |
| MSB Breaker | MS500H | B1500060 |
| MSB Hammer | MS550H | B1806350 |
| MSB Breaker | MS550H | B1806340 |
| MSB Hammer | MS550H | MSB-MS550H |
| MSB Breaker | MS550H | B1806050 |
| MSB Hammer | MS550H | B1806130 |
| MSB Breaker | MS550H | B1806140 |
| MSB Hammer | MS550H | B1806110 |
| MSB Breaker | MS550H | B2007040 |
| MSB Hammer | MS550H | B1806840 |
| MSB Breaker | MS550H | B1806080 |
| MSB Hammer | MS550H | B1806730 |
1. Housing Unit Heavy Duty
Housing – 168069
Pad – 300954
Buffer – 301000
Rubber plug – 400491
Hose assembly – 162531
Grease nipple – 90200
Pipe clamping – 952664
Body – 952618
Plate – 903300
Hex. screw – 903094
Hex. screw – 90589
Washer – 90511
Lock nut – 90507
Wear parts – 165789
Plug – 953291
Rubber plug – 161785
Seal – 161535
Wear plate – 162488
Lifting eye – 90705
Hex. screw – 900026
Shield plate – 162381
Label set – 170435
Safety label set – 169400
2. Housing Unit Heavy Duty Primary Breaking
Housing – 168069
Pad – 300954
Buffer – 172696
Rubber plug – 165434
Hose assembly – 162531
Grease nipple – 90200
Pipe clamping – 952664
Body – 952618
Plate – 903300
Hex. screw – 903094
Hex. screw – 90589
Washer – 90511
Lock nut – 90507
Wear parts – 165789
Plug – 953291
Plug – 953332
Rubber plug – 161785
Seal – 161535
Wear plate – 162488
Lifting eye – 90705
Hex. screw – 900026
Shield plate – 162381
Label set – 170435
Safety label set – 169400
3. Accumulator
Accumulator – 163209
Accumulator bottom – 100672
Accumulator cover – 163210
Membrane – 30211
Accumulator screw – 40416
Filling plug – 40368
Seal – 40104
Shield plug – 154015
Usit-ring – 90056
Parallel pin – 90304
O-ring – 910006
Accumulator screw – 951208
4. Main Valve
Main valve bushing – 156302
Main spool – 161436
Spool – 40111
Spool – 400325
Cover – 161280
Cover – 30776
O-ring – 90005
Seal – 902668
Hex. screw – 90517
Lock washer – 90597
5. Ramvalve
Ramvalve – 158955
Cover – 158952
Spool – 174665
Valve housing – 158953
Spring – 952162
O-ring – 90031
O-ring – 90007
O-ring – 90017
Shim plate – 41639
Shim plate – 41640
Seal – 954341
Hex. screw – 90517
Lock washer – 90597
6. Pressure Control Valve
Pressure control valve – 161421
Cover – 161413
Valve housing – 161908
Spool – 161909
Guide – 400688
Spool – 400690
Spring guide – 161433
Spring – 90104
Shim plate – 41794
Shim plate – 41793
Shim plate – 174182
Plug – 112512
O-ring – 90083
O-ring – 910018
Seal – 41374
Seal – 41375
Hex. screw – 90517
Lock washer – 90597
7. Tie Rods
Tie rod set – 162977
Vibration dampening element – 160995
Cable tie – 952009
Rubber ring – 400661
Lock plate – 400659
Spacer – 160968
8. Body Parts Heavy Duty
Valve body – 161388
Breather – 101200
O-ring – 902122
Flange plug – 90401
Flange plug – 90444
Flange plug – 90403
Flange plug – 93203
Breather – 400662
Taper plug – 93125
Nozzle – 161922
Nozzle – 161465
Cylinder – 162492
Piston – 161015
Parallel pin – 904017
Wiper – 952635
Seal – 955108
Seal – 953984
Seal – 161601
Wiper – 952636
Seal – 952579
Seal – 953985
Seal – 400663
O-ring – 953941
O-ring – 90076
9. Body Parts Heavy Duty Primary Breaking
Valve body – 161388
Breather – 101200
O-ring – 902122
Flange plug – 90401
Flange plug – 90444
Flange plug – 90403
Flange plug – 93203
Breather – 400662
Taper plug – 93125
Nozzle – 161922
Nozzle – 161465
Cylinder – 162492
Piston – 161015
Parallel pin – 904017
Wiper – 952635
Seal – 953984
Seal – 161601
Wiper – 952636
Seal – 952579
Seal – 953985
Seal – 400663
O-ring – 953941
O-ring – 90076
10. Front Head
Front head – 162491
Upper tool bushing – 160940
Tool retaining pin – 160942
Ring – 153236
Retaining pin – 400655
Rubber plug – 104530
11. Lower Tool Bushing
Lower tool bushing – 163214
Seal – 161409
12. Tool
Chisel – 771
M oil point – 773
Blunt – 774
Long chisel – 772
Long m oil point – 778
Pyramid – 773K3
Long blunt – 774C1
Limestone Chisel – 771F3
Hard Rock Chisel – 771A2
Super Blunt – 774T2
13. Seal Set Heavy Duty
Seal set – 162783
Seal – 40104
O-ring – 910006
Usit-ring – 90056
O-ring – 90005
Seal – 902668
O-ring – 90031
O-ring – 90007
O-ring – 90017
O-ring – 90083
O-ring – 910018
Seal – 41374
Seal – 41375
O-ring – 902122
Wiper – 952635
Seal – 955108
Seal – 161601
Wiper – 952636
Seal – 952579
Seal – 400663
O-ring – 90076
O-ring – 953941
Seal – 954341
14. Seal Set, Heat Resistant Heavy Duty Primary Breaking
Seal set – 170330
Seal – 40104
O-ring – 910006
Usit-ring – 90056
O-ring – 90005
Seal – 902668
O-ring – 90031
O-ring – 90007
O-ring – 90017
O-ring – 90083
O-ring – 910018
Seal – 41374
Seal – 41375
O-ring – 902122
Wiper – 952635
Seal – 953984
Seal – 161601
Wiper – 952636
Seal – 952579
Seal – 400663
O-ring – 90076
O-ring – 953941
Seal – 953985
Seal – 954341
15. Service Kit Heavy Duty
Service kit – K12577
Membrane – 30211
Tool retaining pin – 160942
Lower tool bushing – 163214
Seal set – 162783
16. Service Kit 2A Heavy Duty
Service kit – K22577
Pad – 300954
Buffer – 301000
Wear plate – 162488
Upper tool bushing – 160940
17. Service Kit 2D Heavy Duty Primary Breaking
Service kit – K2D2577
Pad – 300954
Buffer – 172696
Wear plate – 162488
Upper tool bushing – 160940
18. Manual Greasing Heavy Duty
Hose assembly – 162531
Sleeve – 153035
Insert – 153036
Hose – 952642
Nut – 951296
Connector – 951295
Connector – 951294
Adapter – 952621
Grease nipple – 90200
Pipe clamp – 952664
Plug – 953291
Plug – 953332
19. Greasing Device Kit Heavy Duty
Greasing device retrofit kit – K60077
Greasing device RG541 – 953344
Hose assembly – 168872
Sleeve – 153035
Insert – 153036
Hose – 951632
Nut – 951296
Rubber bushing – 158147
Shield – 952093
Hex. screw – 953794
Lock washer – 953503
Grease cartridge – 951370
Shield – 168029
Hex. socket screw – 902895
Lock washer – 90597
Connector – 951295
Connector – 951294
Hose assembly – 954817
20. Greasing Device Heavy Duty
Greasing device RG541 – 953344
Doser – 173573
Plug – 173574
Nut – 953330
Lock washer – 91038
O-ring – 953325
Adjusting screw – 953317
O-ring – 953326
O-ring – 953324
Spring – 953331
Piston – 173576
O-ring – 953322
Piston – 953329
Body – 173575
O-ring – 953323
Shim plate – 953321
Grease nipple – 90200
Plug – 953303
Locking plate – 953302
Body – 953310
Cartridge holder – 953309
Check valve – 951767
O-ring – 951416
O-ring – 951453
O-ring – 953300
O-ring – 953301
Guide ring – 950272
Seal – 953299
Spring housing – 953308
Spring – 950257
Piston – 953307
Nut – 953306
Lock plate – 951410
Hex. socket screw – 951421
Connector – 951294
Seal set for greasing device – 953385
21. Service Kit for Greasing Device RG540 Series Heavy Duty
Service kit – 953385
Lock plate – 951410
Plug – 953303
Guide ring – 950272
Seal – 953299
O-ring – 953300
O-ring – 951453
O-ring – 953301
O-ring – 951416
O-ring – 953326
O-ring – 953325
O-ring – 953324
O-ring – 953323
O-ring – 953322
Shim plate – 953321
Spring – 953331
Piston – 953329
Lock washer – 91038
Grease nipple – 90200
Locking plate – 953302
22. Ramdata II Service Indicator
Ramdata II service indicator – 159143
Hex. socket screw – 91020
Lock washer – 91011
23. Tool Box R1
Tool box R1 – 173747
Grease gun – 90202
Tool grease – 902045
Grease cartridge – 951370
Puller – 150020
Combination spanner – N/A
Screwdriver – N/A
Flange plug – 90444
Flange plug – 90403
Grease nipple – 90200
Grease nipple – 953767
Safety glasses – N/A
Assembling screw – 954194
24. Coupling Set
Coupling set – 400587
Flange – 90531
O-ring – 90009
Hexagon socket screw – 90593
25. Coupling Set
Coupling set – 400599
Flange – 915069
O-ring – 90009
Hexagon socket screw – 90593
26. Coupling Set
Coupling set – 400591
Flange – 915055
O-ring – 90009
Hexagon socket screw – 90593
27. Coupling Set
Coupling set – 400590
Flange – 915071
O-ring – 90009
Hexagon socket screw – 90593
| Part No. | Description |
|---|---|
| 172876 | Housing (incl. parts 105–110) |
| 301000 | Buffer |
| 301001 | Pad |
| 165434 | Rubber plug |
| 90589 | Hex. screw |
| 90511 | Washer |
| 90507 | Lock nut |
| 162654 | Wear plate |
| 162381 | Shield plate |
| 102142 | Seal |
| 162657 | Rubber plug |
| 90605 | Lifting eye |
| 900025 | Hex. screw |
| 165567 | Wear parts |
| 173090 | Label set (incl. part 200.1) |
| 169400 | Safety label set |
2. Accumulator
| Part No. | Description |
|---|---|
| 163225 | Accumulator (incl. parts 1.1–1.10) |
| 100303 | Accumulator bottom |
| 163226 | Accumulator cover |
| 30211 | Membrane |
| 40416 | Accumulator screw |
| 40368 | Filling plug |
| 90056 | Usit-ring |
| 154015 | Shield plug |
| 90304 | Parallel pin |
| 40104 | Seal |
| 910006 | O-ring |
| 900050 | Accumulator screw |
3. Main Valve
| Part No. | Description |
|---|---|
| 103841 | Main valve bushing |
| 162192 | Main spool |
| 162194 | Spool |
| 400325 | Spool |
| 162114 | Cover |
| 300459 | Cover |
| 90005 | O-ring |
| 902668 | Seal |
| 900023 | Hex. screw |
| 91012 | Lock washer |
4. Ramvalve
| Part No. | Description |
|---|---|
| 162168 | Ramvalve (incl. parts 1.1–1.10) |
| 158952 | Cover |
| 174665 | Spool |
| 162169 | Valve housing |
| 952162 | Spring |
| 90031 | O-ring |
| 90007 | O-ring |
| 90017 | O-ring |
| 41639 | Shim plate |
| 41640 | Shim plate |
| 954341 | Seal |
| 90517 | Hex. screw |
| 90597 | Lock washer |
5. Pressure Control Valve
| Part No. | Description |
|---|---|
| 163327 | Pressure control valve (incl. parts 1.1–1.15) |
| 161413 | Cover |
| 161908 | Valve housing |
| 174139 | Spool |
| 400688 | Guide |
| 400690 | Spool |
| 161433 | Spring guide |
| 90104 | Spring |
| 41794 | Shim plate |
| 41793 | Shim plate |
| 174182 | Shim plate |
| 112512 | Plug |
| 90083 | O-ring |
| 910018 | O-ring |
| 41374 | Seal |
| 41375 | Seal |
| 90517 | Hex. screw |
| 90597 | Lock washer |
6. Tie Rods
| Part No. | Description |
|---|---|
| 165573 | Tie rod set (incl. parts 1.3–1.7) |
| 162162 | Vibration dampening element |
| 952009 | Cable tie |
| 400343 | Rubber ring |
| 400480 | Lock plate |
| 162137 | Spacer |
7. Body Parts
| Part No. | Description |
|---|---|
| 162043 | Valve body (incl. parts 1.2–1.10) |
| 101200 | Breather (incl. part 1.21) |
| 902122 | O-ring |
| 90401 | Flange plug (R3/4) |
| 90444 | Flange plug (R3/8) |
| 90403 | Flange plug (R1/4) |
| 93203 | Flange plug (R1/8) |
| 400662 | Breather |
| 161922 | Nozzle |
| 161465 | Nozzle |
| 93125 | Taper plug |
| 165480 | Cylinder (incl. parts 2.1–2.5) |
| 161470 | Nozzle |
| 952544 | Screw |
| 162935 | Piston |
| 901101 | Parallel pin |
| 951544 | Wiper |
| 950150 | Seal |
| 155560 | Seal |
| 951545 | Wiper |
| 951833 | Seal |
| 162170 | Seal |
| 953790 | O-ring |
| 94133 | O-ring |
8. Front Head
| Part No. | Description |
|---|---|
| 162879 | Front head (incl. part 1.2) |
| 111399 | Plug |
| 162136 | Upper tool bushing |
| 162083 | Tool retaining pin |
| 153044 | Ring |
| 150360 | Retaining pin |
| 104876 | Rubber plug |
9. Lower Tool Bushing
| Part No. | Description |
|---|---|
| 163248 | Lower tool bushing (incl. part 1.2) |
| 162135 | Seal |
| 90002 | O-ring |
10. Tool
| Part No. | Description |
|---|---|
| BB651 | Chisel |
| BB653 | Moil point |
| BB654 | Blunt |
| BB653K3 | Pyramid |
11. Seal Set
| Part No. | Description |
|---|---|
| 163733 | Seal set (kit) |
| 90031 | O-ring |
| 90007 | O-ring |
| 90017 | O-ring |
| 40104 | Seal |
| 910006 | O-ring |
| 90083 | O-ring |
| 910018 | O-ring |
| 41374 | Seal |
| 41375 | Seal |
| 90005 | O-ring |
| 902668 | Seal |
| 902122 | O-ring |
| 951544 | Wiper |
| 950150 | Seal |
| 155560 | Seal |
| 951545 | Wiper |
| 951833 | Seal |
| 162170 | Seal |
| 953790 | O-ring |
| 94133 | O-ring |
| 90002 | O-ring |
| 954341 | Seal |
12. Service Kit
| Part No. | Description |
|---|---|
| 165605 | Service kit (kit) |
| 30211 | Membrane |
| 162083 | Tool retaining pin |
| 163248 | Lower tool bushing |
| 163733 | Seal set |
13. Service Kit 2
| Part No. | Description |
|---|---|
| 165606 | Service kit (kit) |
| 301000 | Buffer |
| 301001 | Pad |
| 162654 | Wear plate |
| 162136 | Upper tool bushing |
14. Manual Greasing
| Part No. | Description |
|---|---|
| 162531 | Hose assembly (incl. parts 2.1–2.8) |
| 153035 | Sleeve |
| 153036 | Insert |
| 952642 | Hose |
| 951296 | Nut |
| 951295 | Connector |
| 951294 | Connector |
| 952621 | Adapter |
| 90200 | Grease nipple |
| 952664 | Pipe clamp |
| 953291 | Plug |
| 953332 | Plug |
15. Greasing Device Kit
| Part No. | Description |
|---|---|
| K60077 | Greasing device retrofit kit (kit) |
| 953344 | Greasing device RG541 |
| 168872 | Hose assembly (incl. parts 3.1–3.4) |
| 153035 | Sleeve |
| 153036 | Insert |
| 951632 | Hose |
| 951296 | Nut |
| 158147 | Rubber bushing |
| 952093 | Shield |
| 953794 | Hex. screw |
| 953503 | Lock washer |
| 951370 | Grease cartridge |
| 168029 | Shield |
| 902895 | Hex. socket screw |
| 90597 | Lock washer |
| 951295 | Connector |
| 951294 | Connector |
| 954817 | Hose assembly |
16. Greasing Device
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 (incl. parts 2–21) |
| 173573 | Doser (incl. parts 2.1–2.14) |
| 173574 | Plug |
| 953330 | Nut |
| 91038 | Lock washer |
| 953325 | O-ring |
| 953317 | Adjusting screw |
| 953326 | O-ring |
| 953324 | O-ring |
| 953331 | Spring |
| 173576 | Piston |
| 953322 | O-ring |
| 953329 | Piston |
| 173575 | Body |
| 953323 | O-ring |
| 953321 | Shim plate |
| 90200 | Grease nipple |
| 953303 | Plug |
| 953302 | Locking plate |
| 953310 | Body |
| 953309 | Cartridge holder |
| 951767 | Check valve |
| 951416 | O-ring |
| 951453 | O-ring |
| 953300 | O-ring |
| 953301 | O-ring |
| 950272 | Guide ring |
| 953299 | Seal |
| 953308 | Spring housing |
| 950257 | Spring |
| 953307 | Piston |
| 953306 | Nut |
| 951410 | Lock plate |
| 951421 | Hex. socket screw |
| 951294 | Connector |
| 953385 | Seal set for greasing device |
17. Service Kit for Greasing Device RG540 Series
| Part No. | Description |
|---|---|
| 953385 | Service kit for greasing device (kit) |
| 951410 | Lock plate |
| 953303 | Plug |
| 950272 | Guide ring |
| 953299 | Seal |
| 953300 | O-ring |
| 951453 | O-ring |
| 953301 | O-ring |
| 951416 | O-ring |
| 953326 | O-ring |
| 953325 | O-ring |
| 953324 | O-ring |
| 953323 | O-ring |
| 953322 | O-ring |
| 953321 | Shim plate |
| 953331 | Spring |
| 953329 | Piston |
| 91038 | Lock washer |
| 90200 | Grease nipple |
| 953302 | Locking plate |
18. Ramdata II Service Indicator
| Part No. | Description |
|---|---|
| 159143 | Ramdata II service indicator (incl. parts 1.2–1.3) |
| 91020 | Hex. socket screw |
| 91011 | Lock washer |
19. Tool Box R1
| Part No. | Description |
|---|---|
| 173747 | Tool box R1 (kit) |
| 90202 | Grease gun |
| 902045 | Tool grease |
| 951370 | Grease cartridge |
| 150020 | Puller |
| 90444 | Flange plug |
| 90403 | Flange plug |
| 90200 | Grease nipple |
| 953767 | Grease nipple |
| 954194 | Assembling screw |
20. Coupling Set
| Part No. | Description |
|---|---|
| 400587 | Coupling set (kit) |
| 90531 | Flange |
| 90009 | O-ring |
| 90593 | Hexagon socket screw |
| Part No. | Description |
|---|---|
| 160773 | Housing |
| 160678 | Pad |
| 301000 | Buffer |
| 159327 | Shield plate |
| 160812 | Service hatch |
| 153024 | Plug |
| 102086 | Plug |
| 155187 | Seal |
| 90605 | Lifting eye |
| 900025 | Hex. screw |
| 94061 | O-ring |
| 160925 | Bushing |
| 952389 | Hose assembly |
| 400638 | Hose coupling |
| 101336 | Bushing |
| 90009 | O-ring |
| 90593 | Hex. socket screw |
| 951690 | O-ring |
| 90589 | Hex. screw |
| 90511 | Washer |
| 90507 | Lock nut |
| 157940 | Wear plate |
| 171543 | Buffer |
| 160752 | Bottom plate |
| 170455 | Label set |
| 169400 | Safety label set |
2. Housing Unit Boulder Breaking
| Part No. | Description |
|---|---|
| 162777 | Housing |
| 163124 | Wear parts |
| 162778 | Spacer plate |
| 162769 | Stone claw |
| 162771 | Stone claw |
| 162770 | Plate |
3. Housing Unit Ramlube II ECO, Demolition/Trenching
| Part No. | Description |
|---|---|
| 173528 | Housing |
4. Accumulator
| Part No. | Description |
|---|---|
| 154008 | Accumulator |
| 150108 | Accumulator bottom |
| 154009 | Accumulator cover |
| 30190 | Membrane |
| 900022 | Accumulator screw |
| 91010 | Lock washer |
| 40368 | Filling plug |
| 154015 | Shield plug |
| 910006 | O-ring |
| 90056 | Usit-ring |
| 90304 | Parallel pin |
| 40104 | Seal |
5. Main Valve
| Part No. | Description |
|---|---|
| 113175 | Slide ring |
| 113173 | Distributor |
| 113174 | Assembly ring |
6. Pressure Control Valve
| Part No. | Description |
|---|---|
| 160618 | Pressure control valve |
| 160617 | Cover |
| 155612 | Valve housing |
| 155613 | Spool |
| 155615 | Bushing |
| 155611 | Spring guide |
| 112512 | Plug |
| 90104 | Spring |
| 90017 | O-ring |
| 41374 | Seal |
| 41375 | Seal |
| 41376 | Seal |
| 113138 | Seal |
| 42364 | Shim plate |
| 41793 | Shim plate |
| 41794 | Shim plate |
| 91100 | Hex. socket screw |
| 90597 | Lock washer |
7. Relief Valve
| Part No. | Description |
|---|---|
| 951600 | Relief valve |
| 163118 | Plug |
| 951692 | Seal set for relief valve |
8. Tie Rods
| Part No. | Description |
|---|---|
| 162244 | Tie rod |
| 157939 | Vibration dampening element |
| 952009 | Cable tie |
| 952173 | Split pin |
| 157957 | Washer |
| 160402 | Lock plate |
| 160473 | Washer |
| 90538 | Hex. screw |
| 91010 | Lock washer |
9. Body Parts
| Part No. | Description |
|---|---|
| 170943 | Valve body |
| 101200 | Breather |
| 902122 | O-ring |
| 90403 | Flange plug |
| 93203 | Flange plug |
| 915028 | Plug |
| 161922 | Nozzle |
| 90444 | Flange plug |
| 93125 | Plug |
| 171404 | Cylinder |
| 161470 | Nozzle |
| 952544 | Screw |
| 156786 | Piston |
| 951544 | Wiper |
| 950150 | Seal |
| 155560 | Seal |
| 951545 | Wiper |
| 951546 | Seal |
| 951833 | Seal |
| 952174 | O-ring |
| 400341 | Seal |
| 90011 | O-ring |
| 951383 | O-ring |
| 951668 | Parallel pin |
10. Front Head
| Part No. | Description |
|---|---|
| 170944 | Front head |
| 155541 | Upper tool bushing |
| 155537 | Tool retaining pin |
| 153539 | Ring |
| 150360 | Retaining pin |
| 104876 | Rubber plug |
11. Lower Tool Bushing
| Part No. | Description |
|---|---|
| 155542 | Lower tool bushing |
12. Greasing Device
| Part No. | Description |
|---|---|
| 162802 | Greasing device kit |
| 952268 | Greasing device |
| 952258 | Cover |
| 952269 | Pressure indicator |
| 952257 | Guide |
| 952266 | Valve cartridge |
| 952259 | Body |
| 952260 | Spool |
| 952261 | Cover |
| 952410 | O-ring |
| 952411 | O-ring |
| 952416 | Seal |
| 90200 | Grease nipple |
| 952265 | Screw |
| 94104 | O-ring |
| 952267 | Doser cartridge |
| 952263 | Cover |
| 951819 | O-ring |
| 952270 | Retaining ring |
| 952256 | Cylinder |
| 952264 | Piston |
| 952262 | Locking bushing |
| 952255 | Screw |
| 952412 | O-ring |
| 952413 | Seal |
| 166330 | Shim plate |
| 90504 | Hex. socket screw |
| 91037 | Lock washer |
| 952408 | O-ring |
| 952418 | Supporting ring |
| 952704 | O-ring |
| 952624 | Pin |
| 952275 | Piston |
| 952415 | Guide ring |
| 952414 | Seal |
| 901309 | Hex. socket screw |
| 952291 | Adapter |
| 951711 | USIT-ring |
| 952283 | Quick coupler |
| 952292 | Shield plug |
| 162803 | Greasing block for manual greasing |
| 170490 | Cover |
| 952417 | Service kit for greasing device |
13. Greasing Device Refilling Parts
| Part No. | Description |
|---|---|
| 952640 | Grease pump |
| 953510 | Hose assembly |
| 951370 | Grease cartridge |
| 953527 | Seal set for grease pump |
| 954291 | Spring parts |
14. Grease Filling Device Equipment
| Part No. | Description |
|---|---|
| 952278 | Grease filling device |
| 952637 | Filter cartridge |
15. Service Kit for Greasing Device
| Part No. | Description |
|---|---|
| 952417 | Service kit for greasing device |
16. Tool
| Part No. | Description |
|---|---|
| 551 | Chisel |
| 553 | Moil point |
| 554 | Blunt |
| 552 | Long chisel |
| 558 | Long moil point |
| 554C1 | Long blunt |
| 551F3 | Limestone chisel |
| 553K3 | Pyramid |
17. Seal Set
| Part No. | Description |
|---|---|
| 159281 | Seal set |
| 951692 | Seal set for relief valve |
| 952173 | Split pin |
18. Service Kit
| Part No. | Description |
|---|---|
| K12155 | Service kit |
| 30190 | Membrane |
| 155537 | Tool retaining pin |
| 155542 | Lower tool bushing |
| 159281 | Seal set |
19. Service Kit 2
| Part No. | Description |
|---|---|
| K22155 | Service kit |
| 160678 | Pad |
| 301000 | Buffer |
| 157940 | Wear plate |
| 171543 | Buffer |
| 155541 | Upper tool bushing |
20. Greasing Device Ramlube II Kit
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 |
| 173524 | Hose assembly |
| 153035 | Sleeve |
| 153036 | Insert |
| 954555 | Hose |
| 951296 | Nut |
| 152172 | Rubber bushing |
| 152729 | Fitting |
| 953794 | Hex. screw |
| 953503 | Lock washer |
| 951370 | Grease cartridge |
21. Greasing Device Ramlube II
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 |
| 173573 | Doser |
| 173574 | Plug |
| 953330 | Nut |
| 91038 | Lock washer |
| 953325 | O-ring |
| 953317 | Adjusting screw |
| 953326 | O-ring |
| 953324 | O-ring |
| 953331 | Spring |
| 173576 | Piston |
| 953322 | O-ring |
| 953329 | Piston |
| 173575 | Body |
| 953323 | O-ring |
| 953321 | Shim plate |
| 90200 | Grease nipple |
| 953303 | Plug |
| 953302 | Locking plate |
| 953310 | Body |
| 953309 | Cartridge holder |
| 951767 | Check valve |
| 951416 | O-ring |
| 951453 | O-ring |
| 953300 | O-ring |
| 953301 | O-ring |
| 950272 | Guide ring |
| 953299 | Seal |
| 953308 | Spring housing |
| 950257 | Spring |
| 953307 | Piston |
| 953306 | Nut |
| 951410 | Lock plate |
| 951421 | Hex. socket screw |
| 951294 | Connector |
| 953385 | Seal set for greasing device |
22. Service Kit for Greasing Device RG540 Series
| Part No. | Description |
|---|---|
| 953385 | Service kit for greasing device |
| 951410 | Lock plate |
| 953303 | Plug |
| 950272 | Guide ring |
| 953299 | Seal |
| 953300 | O-ring |
| 951453 | O-ring |
| 953301 | O-ring |
| 951416 | O-ring |
| 953326 | O-ring |
| 953325 | O-ring |
| 953324 | O-ring |
| 953323 | O-ring |
| 953322 | O-ring |
| 953321 | Shim plate |
| 953331 | Spring |
| 953329 | Piston |
| 91038 | Lock washer |
| 90200 | Grease nipple |
| 953302 | Locking plate |
23. Tool Box
| Part No. | Description |
|---|---|
| 952646 | Tool box kit 9 |
| 90665 | Tool box |
| 952640 | Grease gun |
| 902045 | Tool grease |
| 952539 | Assembling screw |
| 954194 | Assembling screw |
Housing Unit
| Part No. | Description |
|---|---|
| 172873 | Housing (incl. parts 105–110) |
| 300767 | Buffer |
| 300768 | Pad |
| 165434 | Rubber plug |
| 90589 | Hex. screw |
| 90511 | Washer |
| 90507 | Lock nut |
| 162827 | Wear plate |
| 162840 | Shield plate |
| 102142 | Seal |
| 162657 | Rubber plug |
| 90605 | Lifting eye |
| 900025 | Hex. screw |
| 165566 | Wear parts |
| 177588 | Label set |
| 169400 | Safety label set |
2. Accumulator
| Part No. | Description |
|---|---|
| 162184 | Accumulator (incl. parts 1.1–1.10) |
| 162103 | Accumulator bottom |
| 162104 | Accumulator cover |
| 20604 | Membrane |
| 950125 | Accumulator screw |
| 40368 | Filling plug |
| 90056 | Usit-ring |
| 154015 | Shield plug |
| 90342 | Parallel pin |
| 40104 | Seal |
| 910006 | O-ring |
| 952627 | Accumulator screw |
3. Main Valve
| Part No. | Description |
|---|---|
| 40418 | Cover |
| 162131 | Main valve bushing |
| 162328 | Main spool |
| 162333 | Spool |
| 162335 | Spool |
| 162178 | Seal |
| 90025 | O-ring |
| 90517 | Hex. screw |
| 90597 | Lock washer |
4. Ramvalve
| Part No. | Description |
|---|---|
| 162233 | Ramvalve (incl. parts 1.1–1.10) |
| 158952 | Cover |
| 174665 | Spool |
| 174668 | Valve housing |
| 952162 | Spring |
| 90031 | O-ring |
| 90007 | O-ring |
| 90017 | O-ring |
| 41639 | Shim plate |
| 41640 | Shim plate |
| 954341 | Seal |
| 90517 | Hex. screw |
| 90597 | Lock washer |
5. Pressure Control Valve
| Part No. | Description |
|---|---|
| 162167 | Pressure control valve (incl. parts 1.1–1.15) |
| 162166 | Cover |
| 162692 | Valve housing |
| 162693 | Spool |
| 40364 | Guide |
| 40365 | Spool |
| 162171 | Spring guide |
| 90104 | Spring |
| 41794 | Shim plate |
| 41793 | Shim plate |
| 174182 | Shim plate |
| 162518 | Plug |
| 90018 | O-ring |
| 90000 | O-ring |
| 90019 | O-ring |
| 40391 | Seal |
| 90513 | Hex. screw |
| 91012 | Lock washer |
6. Tie Rods
| Part No. | Description |
|---|---|
| 165572 | Tie rod set (incl. parts 1.3–1.7) |
| 162222 | Vibration dampening element |
| 952009 | Cable tie |
| 40396 | Rubber ring |
| 40367 | Lock plate |
| 162212 | Spacer |
7. Body Parts
| Part No. | Description |
|---|---|
| 162032 | Valve body (incl. parts 1.2–1.9) |
| 162258 | Breather |
| 902122 | O-ring |
| 90424 | Flange plug |
| 90444 | Flange plug |
| 90403 | Flange plug |
| 93203 | Flange plug |
| 400662 | Breather |
| 161922 | Nozzle |
| 161465 | Nozzle |
| 165564 | Cylinder (incl. parts 2.1–2.5) |
| 167862 | Nozzle |
| 952544 | Screw |
| 162089 | Piston |
| 901101 | Parallel pin |
| 952629 | Wiper |
| 950149 | Seal |
| 151217 | Seal |
| 951544 | Wiper |
| 952630 | Seal |
| 162360 | Seal |
| 953787 | O-ring |
| 910016 | O-ring |
8. Front Head
| Part No. | Description |
|---|---|
| 162877 | Front head (incl. part 1.2) |
| 111399 | Plug |
| 162229 | Upper tool bushing |
| 153538 | Tool retaining pin |
| 153539 | Ring |
| 400323 | Retaining pin |
| 104876 | Rubber plug |
9. Lower Tool Bushing
| Part No. | Description |
|---|---|
| 163244 | Lower tool bushing (incl. part 1.2) |
| 162368 | Seal |
10. Tool
| Part No. | Description |
|---|---|
| BB491 | Chisel |
| BB493 | Moil point |
| BB494 | Blunt |
| BB493K3 | Pyramid |
11. Seal Set
| Part No. | Description |
|---|---|
| 162382 | Seal set (kit) |
| 90056 | Usit-ring |
| 40104 | Seal |
| 910006 | O-ring |
| 90018 | O-ring |
| 90000 | O-ring |
| 90019 | O-ring |
| 40391 | Seal |
| 162178 | Seal |
| 90025 | O-ring |
| 90031 | O-ring |
| 90007 | O-ring |
| 90017 | O-ring |
| 902122 | O-ring |
| 952629 | Wiper |
| 950149 | Seal |
| 151217 | Seal |
| 951544 | Wiper |
| 952630 | Seal |
| 162360 | Seal |
| 953787 | O-ring |
| 910016 | O-ring |
| 954341 | Seal |
12. Service Kit
| Part No. | Description |
|---|---|
| 165607 | Service kit (kit) |
| 20604 | Membrane |
| 153538 | Tool retaining pin |
| 163244 | Lower tool bushing |
| 162382 | Seal set |
13. Service Kit 2
| Part No. | Description |
|---|---|
| 165608 | Service kit (kit) |
| 300767 | Buffer |
| 300768 | Pad |
| 162827 | Wear plate |
| 162229 | Upper tool bushing |
14. Manual Greasing
| Part No. | Description |
|---|---|
| 162531 | Hose assembly (incl. parts 2.1–2.8) |
| 153035 | Sleeve |
| 153036 | Insert |
| 952642 | Hose |
| 951296 | Nut |
| 951295 | Connector |
| 951294 | Connector |
| 952621 | Adapter |
| 90200 | Grease nipple |
| 952664 | Pipe clamp |
| 953291 | Plug |
| 953332 | Plug |
15. Greasing Device Kit
| Part No. | Description |
|---|---|
| K60077 | Greasing device retrofit kit |
| 953344 | Greasing device RG541 |
| 168872 | Hose assembly |
| 153035 | Sleeve |
| 153036 | Insert |
| 951632 | Hose |
| 951296 | Nut |
| 158147 | Rubber bushing |
| 952093 | Shield |
| 953794 | Hex. screw |
| 953503 | Lock washer |
| 951370 | Grease cartridge |
| 168029 | Shield |
| 902895 | Hex. socket screw |
| 90597 | Lock washer |
| 951295 | Connector |
| 951294 | Connector |
| 954817 | Hose assembly |
| 955137 | Adapter |
| 955136 | Adapter |
| 951711 | Usit-ring |
| 94092 | Usit-ring |
16. Greasing Device
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 |
| 173573 | Doser |
| 173574 | Plug |
| 953330 | Nut |
| 91038 | Lock washer |
| 953325 | O-ring |
| 953317 | Adjusting screw |
| 953326 | O-ring |
| 953324 | O-ring |
| 953331 | Spring |
| 173576 | Piston |
| 953322 | O-ring |
| 953329 | Piston |
| 173575 | Body |
| 953323 | O-ring |
| 953321 | Shim plate |
| 90200 | Grease nipple |
| 953303 | Plug |
| 953302 | Locking plate |
| 953310 | Body |
| 953309 | Cartridge holder |
| 951767 | Check valve |
| 951416 | O-ring |
| 951453 | O-ring |
| 953300 | O-ring |
| 953301 | O-ring |
| 950272 | Guide ring |
| 953299 | Seal |
| 953308 | Spring housing |
| 950257 | Spring |
| 953307 | Piston |
| 953306 | Nut |
| 951410 | Lock plate |
| 951421 | Hex. socket screw |
| 951294 | Connector |
| 953385 | Seal set for greasing device |
17. Service Kit for Greasing Device RG540 Series
| Part No. | Description |
|---|---|
| 953385 | Service kit for greasing device |
| 951410 | Lock plate |
| 953303 | Plug |
| 950272 | Guide ring |
| 953299 | Seal |
| 953300 | O-ring |
| 951453 | O-ring |
| 953301 | O-ring |
| 951416 | O-ring |
| 953326 | O-ring |
| 953325 | O-ring |
| 953324 | O-ring |
| 953323 | O-ring |
| 953322 | O-ring |
| 953321 | Shim plate |
| 953331 | Spring |
| 953329 | Piston |
| 91038 | Lock washer |
| 90200 | Grease nipple |
| 953302 | Locking plate |
18. Ramdata II Service Indicator
| Part No. | Description |
|---|---|
| 159143 | Ramdata II service indicator |
| 91020 | Hex. socket screw |
| 91011 | Lock washer |
19. Tool Box R1
| Part No. | Description |
|---|---|
| 173747 | Tool box R1 (kit) |
| N/A | Tool box |
| 90202 | Grease gun |
| 902045 | Tool grease |
| 951370 | Grease cartridge |
| 150020 | Puller |
| N/A | Combination spanner |
| N/A | Screwdriver |
| 90444 | Flange plug |
| 90403 | Flange plug |
| 90200 | Grease nipple |
| 953767 | Grease nipple |
| N/A | Safety glasses |
| 954194 | Assembling screw |
20–23. Coupling Sets
| Part No. | Description |
|---|---|
| 400516 | Coupling set (kit) |
| 90530 | Flange |
| 90010 | O-ring |
| 90564 | Hexagon socket screw |
| 400510 | Coupling set (kit) |
| 915066 | Flange |
| 90010 | O-ring |
| 90564 | Hexagon socket screw |
| 400520 | Coupling set (kit) |
| 915054 | Flange |
| 90010 | O-ring |
| 90564 | Hexagon socket screw |
| 400513 | Coupling set (kit) |
| 915070 | Flange |
| 90010 | O-ring |
| 90564 | Hexagon socket screw |
| Part No. | Description |
|---|---|
| 163106 | Housing |
| 163367 | Pad |
| 163097 | Buffer |
| 164417 | Shield plate |
| 164386 | Service hatch |
| 161833 | Plug |
| 163946 | Plug |
| 163287 | Seal |
| 90605 | Lifting eye |
| 900025 | Hex. screw |
| 910009 | O-ring |
| 164418 | Bushing |
| 952691 | Hose assembly |
| 400637 | Hose coupling |
| 90564 | Hex. socket screw |
| 954330 | O-ring |
| 90589 | Hex. screw |
| 90511 | Washer |
| 90507 | Lock nut |
| 163114 | Wear plate |
| 163374 | Wear plate |
| 172980 | Buffer |
| 163111 | Bottom plate |
| 170454 | Label set |
| 169400 | Safety label set |
2. Housing Unit Boulder Breaking
| Part No. | Description |
|---|---|
| 170313 | Housing |
| 170317 | Spacer plate |
| 170314 | Stone claw |
| 170315 | Stone claw |
| 170316 | Plate |
| 171052 | Wear parts |
(Other parts same as ECO Housing Unit above)
3. Housing Unit Ramlube II ECO, Demolition/Trenching
| Part No. | Description |
|---|---|
| 173522 | Housing |
| 90605 | Lifting eye |
| 900025 | Hex. screw |
4. Accumulator
| Part No. | Description |
|---|---|
| 163070 | Accumulator |
| 163068 | Accumulator bottom |
| 163069 | Accumulator cover |
| 20604 | Membrane |
| 952700 | Accumulator screw |
| 91010 | Lock washer |
| 40368 | Filling plug |
| 154015 | Shield plug |
| 910006 | O-ring |
| 90056 | Usit-ring |
| 90342 | Parallel pin |
| 952686 | Accumulator screw |
| 90597 | Lock washer |
| 163331 | Seal |
5. Main Valve
| Part No. | Description |
|---|---|
| 162984 | Slide ring |
| 162982 | Distributor |
| 162983 | Assembly ring |
6. Pressure Control Valve
| Part No. | Description |
|---|---|
| 170017 | Pressure control valve |
| 160617 | Cover |
| 169887 | Valve housing |
| 170016 | Spool |
| 101466 | Nozzle |
| 155615 | Bushing |
| 155611 | Spring guide |
| 112512 | Plug |
| 90104 | Spring |
| 90017 | O-ring |
| 41374 | Seal |
| 41375 | Seal |
| 41376 | Seal |
| 113138 | Seal |
| 42364 | Shim plate |
| 41793 | Shim plate |
| 41794 | Shim plate |
| 91100 | Hex. socket screw |
| 90597 | Lock washer |
7. Relief Valve
| Part No. | Description |
|---|---|
| 951600 | Relief valve |
| 163118 | Plug |
| 951692 | Seal set for relief valve |
8. Tie Rods
| Part No. | Description |
|---|---|
| 169943 | Tie rod |
| 163272 | Vibration dampening element |
| 952009 | Cable tie |
| 954007 | Split pin |
| 162993 | Washer |
| 162995 | Lock plate |
| 162996 | Washer |
| 91128 | Hex. screw |
| 90597 | Lock washer |
9. Body Parts
| Part No. | Description |
|---|---|
| 170945 | Valve body |
| 101200 | Breather |
| 902122 | O-ring |
| 90403 | Flange plug |
| 93203 | Flange plug |
| 915028 | Plug |
| 161922 | Nozzle |
| 90444 | Flange plug |
| 93125 | Plug |
| 171405 | Cylinder |
| 167862 | Nozzle |
| 952544 | Screw |
| 163010 | Piston |
| 952629 | Wiper |
| 950149 | Seal |
| 151217 | Seal |
| 951544 | Wiper |
| 950150 | Seal |
| 952630 | Seal |
| 94076 | O-ring |
| 162360 | Seal |
| 950058 | O-ring |
| 94035 | O-ring |
| 90342 | Parallel pin |
10. Front Head
(Part list not fully extracted in provided text)
11. Lower Tool Bushing
| Part No. | Description |
|---|---|
| 162958 | Lower tool bushing |
12. Greasing Device
| Part No. | Description |
|---|---|
| 162802 | Greasing device kit |
| 952268 | Greasing device |
| 952258 | Cover |
| 952269 | Pressure indicator |
| 952257 | Guide |
| 952266 | Valve cartridge |
| 952259 | Body |
| 952260 | Spool |
| 952261 | Cover |
| 952410 | O-ring |
| 952411 | O-ring |
| 952416 | Seal |
| 90200 | Grease nipple |
| 952265 | Screw |
| 94104 | O-ring |
| 952267 | Doser cartridge |
| 952263 | Cover |
| 951819 | O-ring |
| 952270 | Retaining ring |
| 952256 | Cylinder |
| 952264 | Piston |
| 952262 | Locking bushing |
| 952255 | Screw |
| 952412 | O-ring |
| 952413 | Seal |
| 166330 | Shim plate |
| 90504 | Hex. socket screw |
| 91037 | Lock washer |
| 952408 | O-ring |
| 952418 | Supporting ring |
| 952704 | O-ring |
| 952624 | Pin |
| 952275 | Piston |
| 952415 | Guide ring |
| 952414 | Seal |
| 901309 | Hex. socket screw |
| 952291 | Adapter |
| 951711 | USIT-ring |
| 952283 | Quick coupler |
| 952292 | Shield plug |
| 162803 | Greasing block for manual greasing |
| 170490 | Cover |
| 952417 | Service kit for greasing device |
13. Greasing Device Refilling Parts
| Part No. | Description |
|---|---|
| 952640 | Grease pump |
| 953510 | Hose assembly |
| 951370 | Grease cartridge |
| 953527 | Seal set for grease pump |
| 954291 | Spring parts |
14. Grease Filling Device Equipment
| Part No. | Description |
|---|---|
| 952278 | Filling adapter |
| 952637 | Filter cartridge |
15. Service Kit for Greasing Device
| Part No. | Description |
|---|---|
| 952417 | Service kit for greasing device |
16. Tool
| Part No. | Description |
|---|---|
| 331 | Chisel |
| 333 | Moll point |
| 334 | Blunt |
17. Seal Set
| Part No. | Description |
|---|---|
| 169913 | Seal set |
18. Service Kit
| Part No. | Description |
|---|---|
| K11533 | Service kit |
| 20604 | Membrane |
| 163252 | Tool retaining pin |
| 162958 | Lower tool bushing |
| 169913 | Seal set |
19. Service Kit 2
| Part No. | Description |
|---|---|
| K21533 | Service kit |
| 163367 | Pad |
| 163097 | Buffer |
| 163114 | Wear plate |
| 163374 | Wear plate |
| 172980 | Buffer |
| 162957 | Upper tool bushing |
20. Greasing Device Ramlube II Kit
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 |
| 173524 | Hose assembly |
| 153035 | Sleeve |
| 153036 | Insert |
| 954555 | Hose |
| 951296 | Nut |
| 152172 | Rubber bushing |
| 152729 | Fitting |
| 953794 | Hex. screw |
| 953503 | Lock washer |
| 951370 | Grease cartridge |
21. Greasing Device Ramlube II
| Part No. | Description |
|---|---|
| 953344 | Greasing device RG541 |
| 173573 | Doser |
| 173574 | Plug |
| 953330 | Nut |
| 91038 | Lock washer |
| 953325 | O-ring |
| 953317 | Adjusting screw |
| 953326 | O-ring |
| 953324 | O-ring |
| 953331 | Spring |
| 173576 | Piston |
| 953322 | O-ring |
| 953329 | Piston |
| 173575 | Body |
| 953323 | O-ring |
| 953321 | Shim plate |
| 90200 | Grease nipple |
| 953303 | Plug |
| 953302 | Locking plate |
| 953310 | Body |
| 953309 | Cartridge holder |
| 951767 | Check valve |
| 951416 | O-ring |
| 951453 | O-ring |
| 953300 | O-ring |
| 953301 | O-ring |
| 950272 | Guide ring |
| 953299 | Seal |
| 953308 | Spring housing |
| 950257 | Spring |
| 953307 | Piston |
| 953306 | Nut |
| 951410 | Lock plate |
| 951421 | Hex. socket screw |
| 951294 | Connector |
| 953385 | Seal set for greasing device |
22. Service Kit for Greasing Device RG540 Series
| Part No. | Description |
|---|---|
| 953385 | Service kit for greasing device |
23. Tool Box
| Part No. | Description |
|---|---|
| 952646 | Tool box kit 9 |
| 90665 | Tool box |
| 952640 | Grease gun |
| 902045 | Tool grease |
| 6×150 | Screwdriver |
| 2 kg | Hammer |
| 11 | Combination spanner |
| 13 | Combination spanner |
| 24 | Open-end spanner |
| 952539 | Assembling screw |
| 954194 | Assembling screw |
Section 1: Housing Unit G 100
| Part No. | Description |
|---|---|
| 104262 | Housing (incl. parts 104-117) |
| 300641 | Pad |
| 300642 | Buffer (incl. parts 301 and 302) |
| 102565 | Shield plate |
| 102144 | Seal |
| 400676 | Rubber plug D50 |
| 90520 | Hex. screw M36x140-8.8 DIN 931 |
| 90521 | Washer 39 DIN 126 |
| 90519 | Lock nut M36-8 DIN 985 |
| 102643 | Wear plate |
| 102644 | Wear plate |
| 901464 | Lifting eye M36 DIN 580 |
| 901465 | Hex. screw M36x40-8.8 DIN 933 |
| 102389 | Pin |
| 101689 | Buffer |
| 101342 | Pin |
| 104348 | Label set (Kit) |
Section 2: Housing Unit G 100 City
| Part No. | Description |
|---|---|
| 104067 | Housing (incl. parts 103-117) |
| 300641 | Pad |
| 300642 | Buffer (incl. parts 301 and 302) |
| 102565 | Shield plate |
| 102144 | Seal |
| 400676 | Rubber plug D50 |
| 400566 | Rubber plug D25 |
| 90520 | Hex. screw M36x140-8.8 DIN 931 |
| 90521 | Washer 39 DIN 126 |
| 90519 | Lock nut M36-8 DIN 985 |
| 104126 | Wear plate |
| 104125 | Wear plate |
| 104124 | Wear plate |
| 102945 | Shield plate (incl. part 107.1) |
| 103875 | Plug |
| 901464 | Lifting eye M36 DIN 580 |
| 901465 | Hex. screw M36x40-8.8 DIN 933 |
| 102944 | Middle bushing |
| 102939 | Middle bushing |
| 91050 | Hex. screw M12x40-8.8 DIN 933 |
| 90513 | Hex. screw M12x30-8.8 DIN 933 |
| 91012 | Lock washer M12 NORD-LOCK |
| 102564 | Damper plate |
| 102389 | Pin |
| 101689 | Buffer |
| 101342 | Pin |
| 104349 | Label set (Kit) |
Section 3: Housing Unit G 100 City-Jet
| Part No. | Description |
|---|---|
| 104121 | Housing (incl. parts 103-122) |
| 300641 | Pad |
| 300642 | Buffer (incl. parts 301 and 302) |
| 102565 | Shield plate |
| 102144 | Seal |
| 400676 | Rubber plug D50 |
| 400566 | Rubber plug D25 |
| 90520 | Hex. screw M36x140-8.8 DIN 931 |
| 90521 | Washer 39 DIN 126 |
| 90519 | Lock nut M36-8 DIN 985 |
| 104126 | Wear plate |
| 104125 | Wear plate |
| 104124 | Wear plate |
| 102945 | Shield plate (incl. part 107.1) |
| 103875 | Plug |
| 901464 | Lifting eye M36 DIN 580 |
| 901465 | Hex. screw M36x40-8.8 DIN 933 |
| 102944 | Middle bushing |
| 102939 | Middle bushing |
| 91050 | Hex. screw M12x40-8.8 DIN 933 |
| 90513 | Hex. screw M12x30-8.8 DIN 933 |
| 91012 | Lock washer M12 NORD-LOCK |
| 102564 | Damper plate |
| 102389 | Pin |
| 103047 | Guide |
| 104122 | Hose assembly |
| 102783 | Nozzle |
| 90403 | Plug G1/4 |
| 90424 | Plug G1/2 |
| 101689 | Buffer |
| 101342 | Pin |
| 104349 | Label set (Kit) |
Section 4: Accumulator G 100
| Part No. | Description |
|---|---|
| 110561 | Accumulator (incl. parts 101-110) |
| 110560 | Accumulator bottom |
| 100491 | Accumulator cover |
| 104022 | Membrane |
| 40528 | Accumulator screw |
| 40368 | Filling plug |
| 40536 | Seal D144 |
| 154015 | Shield plug |
| 90056 | Ustr-ring U8.7-14-1 |
| 90304 | Parallel pin 10m6x24 DIN 6325 |
| 910006 | O-ring D23 |
| 300711 | Accumulator screw |
Section 5: Main Valve G 100
| Part No. | Description |
|---|---|
| 104186 | Main valve bushing |
| 300921 | Main spool |
| 400649 | Spool |
| 40523 | Spool |
| 30260 | Cover |
| 30295 | Cover |
| 90032 | O-ring D120 |
| 902644 | Seal |
| 91010 | Lock washer M20 NORD-LOCK |
| 900036 | Hex. screw M20x70-10.9 DIN 931 |
Section 6: Check Valve G 100
| Part No. | Description |
|---|---|
| 300725 | Check valve (incl. parts 301-304) |
| 300696 | Cover |
| 90007 | O-ring D44 |
| 915077 | Check valve |
| 90403 | Flange plug R1/4 |
| 90597 | Lock washer M16 NORD-LOCK |
| 90517 | Hex. screw M16x35-8.8 DIN 933 |
Section 7: Pressure Control Valve G 100
| Part No. | Description |
|---|---|
| 300723 | Pressure control valve (incl. parts 201-211) |
| 300871 | Cover |
| 300814 | Valve housing |
| 400581 | Guide |
| 300866 | Spool |
| 400582 | Spool |
| 42174 | Spring guide |
| 90118 | Spring |
| 90030 | O-ring D75 |
| 40533 | Seal D65 |
| 41374 | Seal D55 |
| 42363 | Shim plate S=0.9 |
| 42362 | Shim plate S=1.25 |
| 42361 | Shim plate S=1.5 |
| 90597 | Lock washer M16 NORD-LOCK |
| 90517 | Hex. screw M16x35-8.8 DIN 933 |
Section 8: Tie Rods G 100
| Part No. | Description |
|---|---|
| 103777 | Tie rod |
| 112491 | Tie rod nut |
| 400478 | Lock plate |
| 40586 | Rubber ring |
Section 9: Body Parts G 100
| Part No. | Description |
|---|---|
| 100394 | Valve body |
| 100418 | Cylinder |
| 100415 | Seal carrier |
| 100416 | Lower seal carrier |
| 100417 | Piston |
| 400562 | Breather |
| 40588 | Seal D210 |
| 903066 | Seal D160 |
| 911023 | Seal D142 |
| 90065 | Wiper D160 |
| 90064 | Wiper D142 |
| 400474 | Seal D160 |
| 400476 | Seal D260 |
| 400481 | Seal D280 |
| 910015 | O-ring D269 |
| 90012 | O-ring D19 |
| 910018 | O-ring D21 |
| 90403 | Flange plug R1/4 |
| 90410 | Flange plug R1 |
| 90424 | Flange plug R1/2 |
| 90317 | Parallel pin 16m6x50 DIN 6325 |
| 904017 | Parallel pin 16m6x70 DIN 6325 |
| 101700 | Breather (incl. part 61.2) |
| 901173 | O-ring D27 |
| 90444 | Flange plug R3/8 |
Section 10: Front Head G 100
| Part No. | Description |
|---|---|
| 100395 | Front head (incl. parts 60, 66 and 68) |
| 200359 | Thrust ring |
| 300619 | Upper tool bushing |
| 400470 | Tool retaining pin D80 |
| 40110 | Wedge |
| 400468 | Retaining pin D30 |
| 400415 | Retaining pin D28 |
| 90000 | O-ring D24 |
| 400469 | Retaining pin D40 |
| 904006 | Split pin 30×40 DIN 1481 |
| 901134 | Split pin D40x70 |
| 90200 | Grease nipple R1/4 |
| 42428 | Spring |
| 400419 | Spring guide |
| 111404 | Plug |
Section 11: Lower Tool Bushing G 100
| Part No. | Description |
|---|---|
| 102159 | Lower tool bushing (incl. part 14.2) |
| 102149 | Seal |
Section 12: Seal Set G 100
| Part No. | Description |
|---|---|
| 400568 | Seal set (Kit) |
| 90000 | O-ring D24 |
| 40588 | Seal D210 |
| 90036 | O-ring D209 |
| 903066 | Seal D160 |
| 911023 | Seal D142 |
| 90065 | Wiper D160 |
| 90064 | Wiper D142 |
| 400474 | Seal D160 |
| 400476 | Seal D260 |
| 400481 | Seal D280 |
| 910015 | O-ring D269 |
| 90012 | O-ring D19 |
| 90011 | O-ring D14 |
| 910018 | O-ring D21 |
| 90032 | O-ring D120 |
| 910013 | O-ring D117 |
| 902644 | Seal |
| 90017 | O-ring D34 |
| 910014 | O-ring D64 |
| 901173 | O-ring |
| 40536 | Seal D144 |
| 90056 | Ustr-ring U8.7-14-1 |
| 90030 | O-ring D75 |
| 40533 | Seal D65 |
| 41374 | Seal D55 |
| 90007 | O-ring D44 |
| 910006 | O-ring D23 |
Section 1: Housing Unit S 86
| Part No. | Description |
|---|---|
| 10237 | Housing (incl. parts 118-128) |
| 30273 | Spacer plate |
| 40542 | Pad |
| 30274 | Buffer |
| 40540 | Spring |
| 90519 | Lock nut M36-8 DIN 985 |
| 90521 | Washer 39 DIN 126 |
| 90520 | Hex. screw M36x140-8.8 DIN 931 |
| 40131 | Pin |
| 40531 | Wear plate |
| 40539 | Pin |
| 40538 | Pin |
| 41148 | Shim plate |
| 901465 | Hex. screw M36x40-8.8 DIN 933 |
| 901464 | Lifting eye M36 DIN 580 |
| 200232 | Label set (Kit) |
Section 2: Accumulator S 86
| Part No. | Description |
|---|---|
| 30270 | Accumulator (incl. parts 101-111) |
| 10230 | Accumulator bottom |
| 10231 | Accumulator cover |
| 30269 | Membrane |
| 40528 | Screw |
| 40368 | Screw |
| 40536 | Seal D144 |
| 400300 | Plug |
| 90056 | Ustr-ring U 8.7-14-1 |
| 90304 | Guide pin D10 |
| 910006 | O-ring D23 |
| 42078 | Washer |
| 30261 | Accumulator screw |
Section 3: Main Valve S 86
| Part No. | Description |
|---|---|
| 20183 | Bushing |
| 30267 | Spool |
| 40524 | Spool |
| 40523 | Spool |
| 30260 | Cover |
| 30295 | Cover |
| 90032 | O-ring D119 |
| 90033 | O-ring D124 |
| 91010 | Locking washer M20 NORD-LOCK |
| 90518 | Hex. screw M20x1.5×45-10.9 DIN 961 |
Section 4: Check Valve S 86
| Part No. | Description |
|---|---|
| 40587 | Check valve (incl. parts 301-306, 54 and 56) |
| 30272 | Check valve housing |
| 90432 | Check valve assembly |
| 90310 | Locking ring B38 DIN 7993 |
| 90403 | Plug R1/4 |
| 90031 | O-ring D46 |
| 90007 | O-ring D44 |
| 90597 | Locking washer M16 NORD-LOCK |
| 90517 | Hex. screw M16x35-8.8 DIN 933 |
Section 5: Pressure Control Valve S 86
| Part No. | Description |
|---|---|
| 31820 | Pressure control valve (incl. parts 201-212) |
| 30266 | Cover |
| 30268 | Guide |
| 40527 | Guide |
| 31430 | Spool |
| 40522 | Spool |
| 40525 | Spring guide |
| 90118 | Spring D32x115 |
| 90030 | O-ring D74 |
| 40533 | Seal D64 |
| 40534 | Seal D54 |
| 42363 | Shim plate S=0.9 mm |
| 42362 | Shim plate S=1.25 mm |
| 42361 | Shim plate S=1.5 mm |
| 42099 | Spring support |
| 90597 | Locking washer M16 NORD-LOCK |
| 90517 | Hex. screw M16x35-8.8 DIN 933 |
Section 6: Tie Rods S 86
| Part No. | Description |
|---|---|
| 20282 | Side rod |
| 30480 | Nut |
| 40585 | Locking ring |
| 40586 | Rubber ring |
Section 7: Body Parts S 86
| Part No. | Description |
|---|---|
| 10549 | Valve housing |
| 10223 | Cylinder |
| 100172 | Seal carrier |
| 10225 | Piston |
| 40588 | Seal D209 |
| 40589 | Seal D37 |
| 40388 | Seal D26 |
| 911002 | Seal D160 |
| 90063 | Seal D142 |
| 40590 | Seal D140 |
| 90034 | O-ring D259 |
| 90012 | O-ring D19 |
| 90064 | Wiper D142 |
| 913000 | Wiper D160 |
| 90410 | Plug R1 |
| 90424 | Plug R1/2 |
| 90300 | Guide pin D16 |
| 101700 | Breather (incl. part 61.2) |
| 901173 | O-ring |
| 90555 | Hex. socket screw M10x25-8.8 DIN 912 |
| 400485 | Flange |
Section 8: Front Head S 86
| Part No. | Description |
|---|---|
| 10217 | Front head |
| 30254 | Thrust ring |
| 40502 | Upper tool bushing |
| 41064 | Pin |
| 40110 | Wedge |
| 40570 | Pin |
| 40503 | Pin |
| 901134 | Split pin D40x70 |
| 90000 | O-ring D24 |
| 90109 | Spring D25x89 |
| 40116 | Plug |
| 90200 | Grease nipple AR 1/4 DIN 71412 |
Section 9: Lower Tool Bushing S 86
| Part No. | Description |
|---|---|
| 21155 | Lower tool bushing |
Section 10: Seal Set S 86
| Part No. | Description |
|---|---|
| 42431 | Seal set (Kit) |
| 40588 | Seal D209 |
| 40589 | Seal D37 |
| 40388 | Seal D26 |
| 911002 | Seal D160 |
| 90063 | Seal D142 |
| 40590 | Seal D140 |
| 90000 | O-ring D24 |
| 90032 | O-ring D119 |
| 90033 | O-ring D124 |
| 90034 | O-ring D259 |
| 90010 | O-ring D33 |
| 90009 | O-ring D38 |
| 90012 | O-ring D19 |
| 90064 | Wiper D142 |
| 913000 | Wiper D160 |
| 901173 | O-ring D27 |
| 40536 | Seal D144 |
| 90056 | Ustr-ring |
| 90030 | O-ring D74 |
| 40533 | Seal D64 |
| 40534 | Seal D54 |
| 90031 | O-ring D46 |
| 90007 | O-ring D44 |
| 910006 | O-ring D23 |
Section 11: S 86 W-Model Parts
| Part No. | Description |
|---|---|
| 31550 | Housing (incl. parts 119-120) |
| 31915 | Spacer plate |
| 42075 | Buffer |
| 10548 | Piston |
| 31549 | Bushing |
| 41336 | Pin |
| 90087 | O-ring D79 |
| 41980 | Pin |
| 41979 | Pin |
| 93629 | Hose 5723-12-12-/H1-78-12/5714-25-21 L = 680 |
| 93042 | Coupling SR25 DIN 2353 St-GT |
| 90008 | O-ring D25 |
| 90404 | Split flange 251-12 3000 psi |
| 90504 | Hex. socket screw M10x30-8.8 DIN |
Epiroc HB 7000 & HB 7000 DP Spare Parts List.
General Information (Page 2)
| Part Number | Description |
|---|---|
| 3363120920 | Hydraulic breaker HB 7000 with lower wear bush (steel) |
| 3363121277 | Hydraulic breaker HB 7000 with lower wear bush (bronze) |
| 3363120949 | Hydraulic breaker HB 7000 DP with lower wear bush (steel) |
| 3363121278 | Hydraulic breaker HB 7000 DP with lower wear bush (bronze) |
| 3363124802 | Hydraulic breaker HB 7000 with lower wear bush (steel) with HATCON |
| 3363124803 | Hydraulic breaker HB 7000 with lower wear bush (bronze) with HATCON |
| 3363124804 | Hydraulic breaker HB 7000 DP with lower wear bush (steel) with HATCON |
| 3363124805 | Hydraulic breaker HB 7000 DP with lower wear bush (bronze) with HATCON |
Label Kit (Page 5)
| Part Number | Name | Qty |
|---|---|---|
| 3363121380 | Label kit HB 7000 | 1 |
| (Item 701) | Label “HB 7000 Epinoc” | 2 |
| (Item 705) | Label – Lubricating symbol | 1 |
| (Item 706) | Label – Gas pressure | 2 |
| (Item 710) | Sound power label | 1 |
| (Item 720) | Name plate – Consult the authorized Customer Center/Dealer in your area. | 1 |
Kit List (Pages 7-10)
| Part Number | Name | Qty |
|---|---|---|
| 3363121225 | Seal kit | 1 |
| 3360314376 | O-ring | 1 |
| 3360314370 | O-ring | 1 |
| 3363123253 | Seal | 1 |
| 3360478171 | O-ring | 1 |
| 3360314373 | O-ring | 2 |
| 3361850422 | Seal kit | 1 |
| 3363121175 | Seal | 1 |
| 3363121176 | Back-up ring | 2 |
| 3360314453 | O-ring | 1 |
| 3360314364 | O-ring | 2 |
| 3360328046 | Back-up ring | 2 |
| 3360478426 | Threaded plug | 1 |
| 3360175125 | O-ring | 1 |
| 3363103419 | Seal | 1 |
| 3360314455 | O-ring | 16 |
| 3360314368 | O-ring | 7 |
| 3360478097 | O-ring | 12 |
| 3361031988 | O-ring | 2 |
| 3362268907 | Seal kit | 2 |
| 3363083672 | Wiper | 1 |
| 3360106819 | Lock pin | 1 |
| 3362268905 | Seal kit | 2 |
| 3360106818 | Lock pin | 1 |
| 3360314453 | O-ring | 3 |
| 3363091732 | Seal kit for swivel joint for automatic lubrication system | 1 |
| 3363089517 | Plastic parts kit | 1 |
| 3362260549 | Elastic pad | 1 |
| 3362260545 | Shock absorber | 2 |
| 3362269697 | Guide plate | 4 |
| 3362262667 | Guide plate | 2 |
| 3362262665 | Guide plate | 2 |
| 3363093383 | Plate | 1 |
| 3363094355 | Tensioning bolt kit | 1 |
| 3363093655 | Washer | 4 |
| 3363085499 | Threaded insert | 4 |
| 3363094391 | DustProtector kit | 1 |
| 3363070666 | Floating ring (tribolid) | 1 |
| 3363035643 | Counter ring | 1 |
| 3363035639 | Guide ring | 1 |
| 3363070645 | Bolt | 2 |
| 3361854363 | Locking bush | 2 |
| 3363119327 | Noise protection kit | 1 |
| 3363086017 | Plug | 2 |
| 3363031181 | Cover | 13 |
| 3363092697 | Cover | 1 |
| 3363103412 | Lower breaker part kit (steel) | 1 |
| 3362260429 | Retainer bar | 2 |
| 3362260431 | Bolt | 2 |
| 3362260435 | Plug | 4 |
| 3363069085 | Impact ring | 1 |
| 3363069507 | Wear bush | 1 |
| 3363088657 | Wear bush (steel) | 1 |
| 3362260431 | Bolt | 4 |
| 3362260433 | Locking bush | 6 |
| 3315038100 | Bio chisel paste cartridge, 12 x 400 g (0.88 lbs) | 1 |
| 3362235295 | Test gauge lower wear bush | 1 |
| 3363094381 | Lower breaker part kit (bronze) | 1 |
| 3363088513 | Wear bush (bronze) | 1 |
| 3363103413 | Lower breaker part kit (steel) for DustProtector version | 1 |
| 3363088649 | Base for wiper | 1 |
| 3363034589 | Wiper | 1 |
| 3363094382 | Lower breaker part kit (bronze) for DustProtector version | 1 |
| 3363103487 | Fastening screw kit | 1 |
| 3363113101 | Fastening screw | 4 |
| 3363100049 | Washer | 4 |
| 3361031546 | Threaded insert | 4 |
| 3363089850 | Accumulator repair kit | 1 |
| 3361329022 | Diaphragm | 1 |
| 3360332259 | Filling screw | 1 |
| 3360314460 | O-ring | 1 |
| 3361335025 | Protective cap | 1 |
| 3363094300 | Anti-seize 120 g | – |
Hydraulic Breaker HB 7000 (Pages 12-14)
| Part Number | Name | Qty |
|---|---|---|
| 3362260549 | Elastic pad | 1 |
| 3362260545 | Shock absorber | 2 |
| 3362269697 | Guide plate | 4 |
| 3362262667 | Guide plate | 2 |
| 3362262665 | Guide plate | 2 |
| 3363093383 | Plate | 1 |
| 3363083677 | Transport safety device complete | 1 |
| 3360114151 | Allen screw | 2 |
| 3363091872 | Label transport safety device | 1 |
| 3360103255 | Nut | 2 |
| 3363031181 | Cover | 2 |
| 3363086017 | Plug | 13 |
| 3363098852 | Plate | 1 |
| 3360103768 | Allen screw | 3 |
| 3361333703 | Pair of lock washers | 3 |
| 3360103750 | Allen screw | 2 |
| 3361850596 | Pair of lock washers | 6 |
| 3363098838 | Plate | 1 |
| 3363092697 | Cover | 1 |
| 3363106729 | Plate | 1 |
| 3363111477 | Swivel joint cover | 1 |
| 3363111461 | Swivel joint cover | 1 |
| 3363111296 | Pair of lock washers | 2 |
| 3360103751 | Allen screw | 6 |
| 3363111996 | Lifting eye | 2 |
| 3315439145 | Protective plug HATCON | 4 |
| 3363106730 | Breaker box | 1 |
| 3363067123 | Automatic lubrication system | 2 |
Hydraulic Breaker HB 7000 DP (Pages 16-18)
(Includes many parts from HB 7000, plus the following)
| Part Number | Name | Qty |
|---|---|---|
| 3363070666 | Floating ring (tribolid) | 1 |
| 3363035643 | Counter ring | 1 |
| 3363035639 | Guide ring | 1 |
| 3363070645 | Bolt | 2 |
| 3361854363 | Locking bush | 2 |
| 3363088649 | Base for wiper | 1 |
| 3363034589 | Wiper | 1 |
| 3363106726 | Breaker box | 1 |
Percussion Unit – Cylinder Cover (Pages 21-22)
| Part Number | Name | Qty |
|---|---|---|
| 3363121010 | Cylinder cover | 1 |
| 3363086519 | Main control valve | 1 |
| 3363086515 | Cover | 1 |
| 3360314376 | O-ring | 1 |
| 3360026784 | Allen screw | 8 |
| 3361850748 | Pair of lock washers | 8 |
| 3363035453 | Valve (AutoControl) | 1 |
| 3363035425 | Threaded plug | 1 |
| 3360314370 | O-ring | 1 |
| 3363085270 | Safety valve (PowerAdapt) | 1 |
| 3363087086 | Threaded plug | 1 |
| 3363087087 | Threaded plug | 1 |
| 3363123253 | Seal | 1 |
| 3361854657 | Connecting screw | 1 |
| 3360478171 | O-ring | 1 |
| 3361854511 | Non-return valve | 1 |
| 3360314373 | O-ring | 2 |
| 3360026513 | Allen screw | 12 |
| 3363116889 | Swivel joint complete | 1 |
| 3363116887 | Adapter complete | 1 |
| 3363116062 | Snapring | 1 |
| 3363086569 | Adapter | 1 |
| 3361850422 | Seal kit | 1 |
| 3361356645 | Disk | 1 |
| 3363083749 | Cap | 1 |
| 3363116888 | Swivel joint complete | 1 |
| 3361356643 | Adapter | 1 |
| 3361353489 | Cap | 1 |
| 3363094981 | HP-accumulator | 2 |
| 3363113101 | Fastening screw | 8 |
| 3363114730 | Service kit O-rings | 2 |
| 3363100049 | Washer | 8 |
| 3361844113 | Strainer disk | 2 |
| 3361844115 | Threaded plug | 2 |
| 3361031546 | Threaded insert | 8 |
| 3361031529 | Threaded insert | 8 |
| 3363104787 | Flange | 1 |
| 3360103750 | Allen screw | 6 |
| 3363087286 | Filling valve complete | 1 |
| 3360478426 | Threaded plug | 1 |
| 3360175125 | O-ring | 1 |
| 3363085625 | Tensioning bolt complete | 8 |
| 3363093655 | Washer | 1 |
| 3363120683 | Valve (IPS – Intelligent Protection System) | 1 |
Percussion Unit – Cylinder (Page 25)
| Part Number | Name | Qty |
|---|---|---|
| 3363120917 | Seal flange | 1 |
| 3363103419 | Seal | 1 |
| 3360314455 | O-ring | 16 |
| 3360314368 | O-ring | 7 |
| 3360478097 | O-ring | 12 |
| 3361031988 | O-ring | 2 |
| 3362268907 | Seal kit | 2 |
| 3363121022 | Cylinder | 1 |
| 3363083672 | Wiper | 1 |
| 3363087006 | Percussion piston | 1 |
| 3360106819 | Lock pin | 1 |
| 3362268905 | Seal kit | 2 |
Lower Breaker Part (Steel) (Page 27)
| Part Number | Name | Qty |
|---|---|---|
| 3362260429 | Retainer bar | 2 |
| 3362260431 | Bolt | 2 |
| 3360106818 | Lock pin | 1 |
| 3362260435 | Plug | 4 |
| 3361855719 | Protective cap | 1 |
| 3360314453 | O-ring | 3 |
| 3363089500 | Lower breaker part complete with lower wear bush steel | 1 |
| 3363069085 | Impact ring | 1 |
| 3363069507 | Wear bush | 1 |
| 3363088657 | Wear bush (steel) | 1 |
| 3362260431 | Bolt | 4 |
| 3362260433 | Locking bush | 6 |
| 3363085499 | Threaded insert | 8 |
| 3363086301 | Plug | 3 |
Lower Breaker Part (Bronze) (Page 29)
| Part Number | Name | Qty |
|---|---|---|
| 3363116925 | Lower breaker part complete with lower wear bush bronze | 1 |
| 3363089507 | Wear bush | 1 |
| 3363088513 | Wear bush (bronze) | 1 |
Connecting Kit for Automatic Lubrication System (Page 31)
| Part Number | Name | Qty |
|---|---|---|
| 3363118844 | Support | 1 |
| 3360026512 | Allen screw | 8 |
| 3360100796 | Allen screw | 8 |
| 3361850596 | Pair of lock washers | 8 |
| 3361333703 | Pair of lock washers | 8 |
| 3363119350 | Connecting kit for automatic lubrication system | 1 |
| 3363083877 | Hydraulic hose (Oil line) | 1 |
| 3363087583 | Hydraulic hose (Grease line) | 1 |
| 3362267584 | Seal | 4 |
| 3363087185 | Fitting | 1 |
| 3363066234 | Fitting | 1 |
| 3363087186 | Fitting | 1 |
| 3363066233 | Fitting | 1 |
| 3360107879 | Plug | 3 |
HATCON (Page 33)
| Part Number | Name | Qty |
|---|---|---|
| 3315439130 | Damper HATCON | 2 |
| 3315439110 | Housing type 1 HATCON | 1 |
| 3315439140 | Lock ring HATCON | 1 |
| 3315439120 | Sleeve HATCON | 4 |
| 3315439100 | Product label HATCON | 1 |
| 3315442800 | Screw HATCON | 4 |
Optional Parts (Page 35)
| Part Number | Name | Qty |
|---|---|---|
| 3363035641 | Floating ring (steel) | 1 |
| 3363088657 | Wear bush (steel) | 1 |
| 3363088513 | Wear bush (bronze) | 1 |
| 3363117931 | Automatic lubrication system HD | 2 |
Hydraulic Hoses (Page 45)
| Part Number | Name | Qty |
|---|---|---|
| 3361853860 | Hydraulic hose, I.D. 32 (1 1/4″), both ends JIC 1 5/8″, length 2800 mm (110 in.) | 1 |
| 3363083563 | Hydraulic hose, I.D. 40 (1 1/2″), both ends JIC 1 7/8″, length 2800 mm (110 in.) | 1 |
| 3361853861 | Hydraulic hose, I.D. 32 (1 1/4″), both ends JIC 1 5/8″, length 3500 mm (138 in.) | 1 |
| 3363083562 | Hydraulic hose, I.D. 40 (1 1/2″), both ends JIC 1 7/8″, length 3500 mm (138 in.) | 1 |
Optional Equipment (Page 47)
| Part Number | Name | Qty |
|---|---|---|
| 3363122356 | Bio chisel paste cartridge, 12 x 550 g (1.2 lbs) | 1 |
| 3363091200 | Chisel paste cartridge, 12 x 500 g (1.1 lbs) | 1 |
| 3363034567 | GREASE PUMP | 1 |
| 3360433774 | Grease nipple | 1 |
| 3363089845 | Maintenance and charging box with nitrogen cylinder, 51, 1.1 gal (1.32 US gal) | 1 |
| 3363094940 | Maintenance and charging box without nitrogen cylinder | 1 |
| 3362235295 | Test gauge lower wear bush | 1 |
| 3363094952 | Inside callipers upper wear bush | 1 |
| 3363093497 | Base plate with threaded inserts | 1 |
| 3363087305 | Bolt kit | 1 |
| 3363102875 | Base plate with through borings | 1 |
| 3363094577 | Bolt kit | 1 |
| 3360478949 | Allen key (27 mm) | 1 |
| 3363103077 | Adapter kit for underwater applications | 1 |
| 3315442500 | Retrofit kit HATCON | 1 |
| 3315439105 | Security bit HATCON | 1 |
| 3315439106 | Magnet HATCON | 1 |
| 3363092991 | Piston retainer | 1 |
Working Tools – ClassicLine HB 7000 (Page 49)
| Part Number | Name | Qty |
|---|---|---|
| 3363119563 | Moll point | 1 |
| 3363119564 | Chisel (cross) | 1 |
| 3363119565 | Chisel (parallel) | 1 |
| 3363119566 | Blunt tool | 1 |
Working Tools – ProLine HB 7000 (Page 51)
| Part Number | Name | Qty |
|---|---|---|
| 3363118329 | Moll point | 1 |
| 3363118333 | Chisel (cross) | 1 |
| 3363091425 | Blunt tool | 1 |
Working Tools – ClassicLine HB 7000 DP (Page 53)
(Same parts as ClassicLine HB 7000)
| Part Number | Name | Qty |
|---|---|---|
| 3363119563 | Moll point | 1 |
| 3363119564 | Chisel (cross) | 1 |
| 3363119565 | Chisel (parallel) | 1 |
| 3363119566 | Blunt tool | 1 |
Working Tools – ProLine HB 7000 DP (Page 55)
(Same parts as ProLine HB 7000)
| Part Number | Name | Qty |
|---|---|---|
| 3363118329 | Moll point | 1 |
| 3363118333 | Chisel (cross) | 1 |
| 3363091425 | Blunt tool | 1 |
Rammer 2577 Parts Manual:
1. Housing Unit Heavy Duty
| Part No. | Part Name |
|---|---|
| 168069 | Housing |
| 300954 | Pad |
| 301000 | Buffer |
| 400491 | Rubber plug |
| 162531 | Hose assembly |
| 90200 | Grease nipple |
| 952664 | Pipe clamping |
| 952618 | Body |
| 903300 | Plate |
| 903094 | Hex. screw |
| 90589 | Hex. screw |
| 90511 | Washer |
| 90507 | Lock nut |
| 165789 | Wear parts |
| 953291 | Plug |
| 161785 | Rubber plug |
| 161535 | Seal |
| 162488 | Wear plate |
| 90705 | Lifting eye |
| 900026 | Hex. screw |
| 162381 | Shield plate |
| 170435 | Label set |
| 169400 | Safety label set |
2. Housing Unit Heavy Duty Primary Breaking
| Part No. | Part Name |
|---|---|
| 168069 | Housing |
| 300954 | Pad |
| 172696 | Buffer |
| 165434 | Rubber plug |
| 162531 | Hose assembly |
| 90200 | Grease nipple |
| 952664 | Pipe clamping |
| 952618 | Body |
| 903300 | Plate |
| 903094 | Hex. screw |
| 90589 | Hex. screw |
| 90511 | Washer |
| 90507 | Lock nut |
| 165789 | Wear parts |
| 953291 | Plug |
| 953332 | Plug |
| 161785 | Rubber plug |
| 161535 | Seal |
| 162488 | Wear plate |
| 90705 | Lifting eye |
| 900026 | Hex. screw |
| 162381 | Shield plate |
| 170435 | Label set |
| 169400 | Safety label set |
3. Accumulator
| Part No. | Part Name |
|---|---|
| 163209 | Accumulator |
| 100672 | Accumulator bottom |
| 163210 | Accumulator cover |
| 30211 | Membrane |
| 40416 | Accumulator screw |
| 40368 | Filling plug |
| 40104 | Seal |
| 154015 | Shield plug |
| 90056 | Usit-ring |
| 90304 | Parallel pin |
| 910006 | O-ring |
| 951208 | Accumulator screw |
4. Main Valve
| Part No. | Part Name |
|---|---|
| 156302 | Main valve bushing |
| 161436 | Main spool |
| 40111 | Spool |
| 400325 | Spool |
| 161280 | Cover |
| 30776 | Cover |
| 90005 | O-ring |
| 902668 | Seal |
| 90517 | Hex. screw |
| 90597 | Lock washer |
5. Ramvalve
| Part No. | Part Name |
|---|---|
| 158955 | Ramvalve |
| 158952 | Cover |
| 174665 | Spool |
| 158953 | Valve housing |
| 952162 | Spring |
| 90031 | O-ring |
| 90007 | O-ring |
| 90017 | O-ring |
| 41639 | Shim plate |
| 41640 | Shim plate |
| 954341 | Seal |
| 90517 | Hex. screw |
| 90597 | Lock washer |
6. Pressure Control Valve
| Part No. | Part Name |
|---|---|
| 161421 | Pressure control valve |
| 161413 | Cover |
| 161908 | Valve housing |
| 161909 | Spool |
| 400688 | Guide |
| 400690 | Spool |
| 161433 | Spring guide |
| 90104 | Spring |
| 41794 | Shim plate |
| 41793 | Shim plate |
| 174182 | Shim plate |
| 112512 | Plug |
| 90083 | O-ring |
| 910018 | O-ring |
| 41374 | Seal |
| 41375 | Seal |
| 90517 | Hex. screw |
| 90597 | Lock washer |
7. Tie Rods
| Part No. | Part Name |
|---|---|
| 162977 | Tie rod set |
| 160995 | Vibration dampening element |
| 952009 | Cable tie |
| 400661 | Rubber ring |
| 400659 | Lock plate |
| 160968 | Spacer |
8. Body Parts Heavy Duty
| Part No. | Part Name |
|---|---|
| 161388 | Valve body |
| 101200 | Breather |
| 902122 | O-ring |
| 90401 | Flange plug |
| 90444 | Flange plug |
| 90403 | Flange plug |
| 93203 | Flange plug |
| 400662 | Breather |
| 93125 | Taper plug |
| 161922 | Nozzle |
| 161465 | Nozzle |
| 162492 | Cylinder |
| 952544 | Screw |
| 161015 | Piston |
| 904017 | Parallel pin |
| 952635 | Wiper |
| 955108 | Seal |
| 953984 | Seal |
| 161601 | Seal |
| 952636 | Wiper |
| 952579 | Seal |
| 953985 | Seal |
| 400663 | Seal |
| 953941 | O-ring |
| 90076 | O-ring |
9. Body Parts Heavy Duty Primary Breaking
| Part No. | Part Name |
|---|---|
| 161388 | Valve body |
| 101200 | Breather |
| 902122 | O-ring |
| 90401 | Flange plug |
| 90444 | Flange plug |
| 90403 | Flange plug |
| 93203 | Flange plug |
| 400662 | Breather |
| 93125 | Taper plug |
| 161922 | Nozzle |
| 161465 | Nozzle |
| 162492 | Cylinder |
| 161015 | Piston |
| 904017 | Parallel pin |
| 952635 | Wiper |
| 953984 | Seal |
| 161601 | Seal |
| 952636 | Wiper |
| 952579 | Seal |
| 953985 | Seal |
| 400663 | Seal |
| 953941 | O-ring |
| 90076 | O-ring |
10. Front Head
| Part No. | Part Name |
|---|---|
| 162491 | Front head |
| 160940 | Upper tool bushing |
| 160942 | Tool retaining pin |
| 153236 | Ring |
| 400655 | Retaining pin |
| 104530 | Rubber plug |
11. Lower Tool Bushing
| Part No. | Part Name |
|---|---|
| 163214 | Lower tool bushing |
| 161409 | Seal |
12. Tool
| Part No. | Part Name |
|---|---|
| 771 | Chisel |
| 773 | M oil point |
| 774 | Blunt |
| 772 | Long chisel |
| 778 | Long m oil point |
| 773K3 | Pyramid |
| 774C1 | Long blunt |
| 771F3 | Limestone Chisel |
| 771A2 | Hard Rock Chisel |
| 774T2 | Super Blunt |
13. Seal Set Heavy Duty
| Part No. | Part Name |
|---|---|
| 162783 | Seal set |
| 40104 | Seal |
| 910006 | O-ring |
| 90056 | Usit-ring |
| 90005 | O-ring |
| 902668 | Seal |
| 90031 | O-ring |
| 90007 | O-ring |
| 90017 | O-ring |
| 90083 | O-ring |
| 910018 | O-ring |
| 41374 | Seal |
| 41375 | Seal |
| 902122 | O-ring |
| 952635 | Wiper |
| 955108 | Seal |
| 161601 | Seal |
| 952636 | Wiper |
| 952579 | Seal |
| 400663 | Seal |
| 90076 | O-ring |
| 953941 | O-ring |
| 954341 | Seal |
14. Seal Set, Heat Resistant Heavy Duty Primary Breaking
| Part No. | Part Name |
|---|---|
| 170330 | Seal set |
| 40104 | Seal |
| 910006 | O-ring |
| 90056 | Usit-ring |
| 90005 | O-ring |
| 902668 | Seal |
| 90031 | O-ring |
| 90007 | O-ring |
| 90017 | O-ring |
| 90083 | O-ring |
| 910018 | O-ring |
| 41374 | Seal |
| 41375 | Seal |
| 902122 | O-ring |
| 952635 | Wiper |
| 953984 | Seal |
| 161601 | Seal |
| 952636 | Wiper |
| 952579 | Seal |
| 400663 | Seal |
| 90076 | O-ring |
| 953941 | O-ring |
| 953985 | Seal |
| 954341 | Seal |
15. Service Kit Heavy Duty
| Part No. | Part Name |
|---|---|
| K12577 | Service kit |
| 30211 | Membrane |
| 160942 | Tool retaining pin |
| 163214 | Lower tool bushing |
| 162783 | Seal set |
16. Service Kit 2A Heavy Duty
| Part No. | Part Name |
|---|---|
| K22577 | Service kit |
| 300954 | Pad |
| 301000 | Buffer |
| 162488 | Wear plate |
| 160940 | Upper tool bushing |
17. Service Kit 2D Heavy Duty Primary Breaking
| Part No. | Part Name |
|---|---|
| K2D2577 | Service kit |
| 300954 | Pad |
| 172696 | Buffer |
| 162488 | Wear plate |
| 160940 | Upper tool bushing |
18. Manual Greasing Heavy Duty
| Part No. | Part Name |
|---|---|
| 162531 | Hose assembly |
| 153035 | Sleeve |
| 153036 | Insert |
| 952642 | Hose |
| 951296 | Nut |
| 951295 | Connector |
| 951294 | Connector |
| 952621 | Adapter |
| 90200 | Grease nipple |
| 952664 | Pipe clamp |
| 953291 | Plug |
| 953332 | Plug |
19. Greasing Device Kit Heavy Duty
| Part No. | Part Name |
|---|---|
| K60077 | Greasing device retrofit kit |
| 953344 | Greasing device RGS41 |
| 168872 | Hose assembly |
| 153035 | Sleeve |
| 153036 | Insert |
| 951632 | Hose |
| 951296 | Nut |
| 158147 | Rubber bushing |
| 952093 | Shield |
| 953794 | Hex. screw |
| 953503 | Lock washer |
| 951370 | Grease cartridge |
| 168029 | Shield |
| 902895 | Hex. socket screw |
| 90597 | Lock washer |
| 951295 | Connector |
| 951294 | Connector |
| 954817 | Hose assembly |
20. Greasing Device Heavy Duty
| Part No. | Part Name |
|---|---|
| 953344 | Greasing device RG541 |
| 173573 | Doser |
| 173574 | Plug |
| 953330 | Nut |
| 91038 | Lock washer |
| 953325 | O-ring |
| 953317 | Adjusting screw |
| 953326 | O-ring |
| 953324 | O-ring |
| 953331 | Spring |
| 173576 | Piston |
| 953322 | O-ring |
| 953329 | Piston |
| 173575 | Body |
| 953323 | O-ring |
| 953321 | Shim plate |
| 90200 | Grease nipple |
| 953303 | Plug |
| 953302 | Locking plate |
| 953310 | Body |
| 953309 | Cartridge holder |
| 951767 | Check valve |
| 951416 | O-ring |
| 951453 | O-ring |
| 953300 | O-ring |
| 953301 | O-ring |
| 950272 | Guide ring |
| 953299 | Seal |
| 953308 | Spring housing |
| 950257 | Spring |
| 953307 | Piston |
| 953306 | Nut |
| 951410 | Lock plate |
| 951421 | Hex. socket screw |
| 951294 | Connector |
| 953385 | Seal set for greasing device |
21. Service Kit for Greasing Device RG540 Series Heavy Duty
| Part No. | Part Name |
|---|---|
| 953385 | Service kit for greasing device |
| 951410 | Lock plate |
| 953303 | Plug |
| 950272 | Guide ring |
| 953299 | Seal |
| 953300 | O-ring |
| 951453 | O-ring |
| 953301 | O-ring |
| 951416 | O-ring |
| 953326 | O-ring |
| 953325 | O-ring |
| 953324 | O-ring |
| 953323 | O-ring |
| 953322 | O-ring |
| 953321 | Shim plate |
| 953331 | Spring |
| 953329 | Piston |
| 91038 | Lock washer |
| 90200 | Grease nipple |
| 953302 | Locking plate |
22. Ramdata II Service Indicator
| Part No. | Part Name |
|---|---|
| 159143 | Ramdata II service indicator |
| 91020 | Hex. socket screw |
| 91011 | Lock washer |
23. Tool Box R1
| Part No. | Part Name |
|---|---|
| 173747 | Tool box R1 |
| 90202 | Grease gun |
| 902045 | Tool grease |
| 951370 | Grease cartridge |
| 150020 | Puller |
| 90444 | Flange plug |
| 90403 | Flange plug |
| 90200 | Grease nipple |
| 953767 | Grease nipple |
| 954194 | Assembling screw |
24–27. Coupling Sets
| Part No. | Part Name |
|---|---|
| 400587 | Coupling set |
| 90531 | Flange |
| 90009 | O-ring |
| 90593 | Hexagon socket screw |
| 400599 | Coupling set |
| 915069 | Flange |
| 400591 | Coupling set |
| 915055 | Flange |
| 400590 | Coupling set |
| 915071 | Flange |
Rock Breaker Store
Leave a comment
