Rock Breaker Store

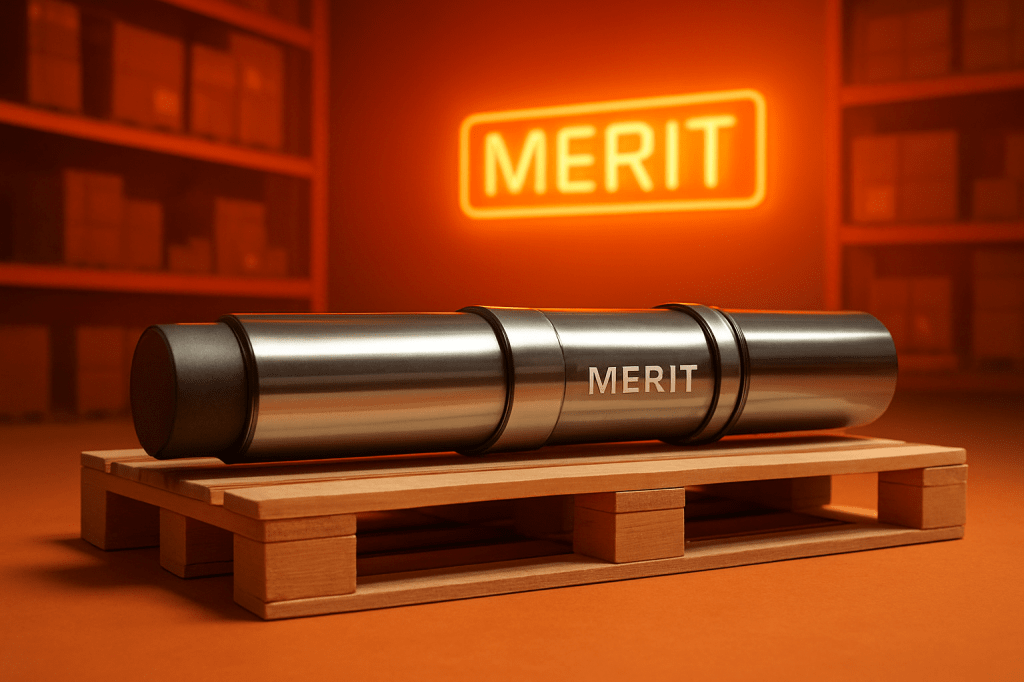

168564 Rammer Piston 5011 est conçu pour offrir une performance fiable, une longévité maximale et une résistance exceptionnelle dans les applications les plus exigeantes.

Performance du 168564 Rammer Piston 5011

Ce piston premium fabriqué par MERIT est produit avec un traitement thermique contrôlé (trempe + revenu) assurant une microstructure uniforme, une dureté optimale et une excellente résistance à la fatigue mécanique.
Dimensions : longueur 47.64 in, diamètre 8.15 in.
Poids : 500.93 lb — parfait pour une transmission d’énergie stable et puissante.

Pourquoi choisir le 168564 Rammer Piston 5011

La fabrication inclut un usinage de haute précision, un équilibrage strict et une finition de surface qui réduit l’usure interne du cylindre.
Grâce à ces procédés, le piston offre une durée de vie prolongée, une résistance accrue aux chocs thermiques et une fiabilité constante même dans les cycles intensifs.

MERIT fournit des pièces compatibles Rammer de qualité supérieure, prêtes pour les opérations les plus sévères.

Disclaimer : les caractéristiques peuvent varier selon les conditions d’utilisation et les spécifications techniques de chaque machine.

Buffer	154317	104137	168232
Pad	155438	104068	168228
Shield Plate	163556	105780	168281
Plug	157947	157947	168231
Seal	153013	160558	168280
Wear Plate	163355	162525	171044
Lower Bushing	155206 / 160008	155206 / 160008	171139
Ring	153236	160482	168299
Tool Retaining Pin	153235	160020	168297
Bushing Retaining Pin	155553	160484	168298
Rubber Plug	104530	160485	168300
Membrane	173532	172307	173535
Seal Set	163428	165464	170948
Service Kit	K13288	K14099	K15011

---

Demolition Tools:

Chisel Tool	881	991	50111
Moil Point Tool	883	993	50113
Blunt Tool	884	994	50114
Pyramid Tool	883K	993K3	50113K3
Limestone Chisel Tool	881F3	991F3	50111A2
Hard Rock Chisel Tool	881A3	991A2	50111F3
Super Blunt Tool	884T2	994T2	50114T2

168232 – Rammer Buffer 5011

171044 – Rammer Wear Plate

168245 – Rammer Housing 5011

171213 – Rammer Wear Parts

172586 – Rammer Buffer 5011

172390 – Rammer Locking Screw

172157 – Rammer Buffer Holder

168281 – Rammer Shield Plate 5011

172651 – Rammer Wear Plate 5011

172114 – Rammer Buffer Holder

168228 – Rammer Pad 5011

954831 – Rammer Hexagon Screw

90521 – Rammer Washer

90519 – Rammer Lock Nut

400491 – Rammer Rubber Plug

158147 – Rammer Bushing

953291 – Rammer Plug

168231 – Rammer Plug

953942 – Rammer Lifting Eye

953944 – Rammer Hexagon Screw

172623 – Rammer Housing 5011

168280 – Rammer Seal

154015 – Rammer Shield Plug

910006 – Rammer O-Ring

902045 – Rammer Tool Grease 400 Gr.

40368 – Rammer Filling Plug

90056 – Rammer Usit-Ring

168591 – Rammer Accumulator Screw

168287 – Rammer Accumulator Cover

90304 – Rammer Parallel Pin

168285 – Rammer Accumulator Bottom 5011

168289 – Rammer Accumulator Screw

90034 – Rammer O-Ring

168563 – Rammer Seal

91010 – Rammer Lock Washer

168596 – Rammer Seal

168571 – Rammer Main Valve Bushing 5011E

168574 – Rammer Main Spool

110986 – Rammer Spool

110781 – Rammer Spool

910010 – Rammer O-Ring

168572 – Rammer Cover

900036 – Rammer Hexagon Screw

915077 – Rammer Check Valve

954348 – Rammer Shim Plate 4099

954349 – Rammer Shim Plate 4099

170264 – Rammer Cover

94038 – Rammer O-Ring

90035 – Rammer O-Ring

172116 – Rammer Valve Housing

94048 – Rammer O-Ring

954342 – Rammer Spring

954341 – Rammer Seal (4099)

400582 – Rammer Spool

161976 – Rammer Guide

171131 – Rammer Spool

40533 – Rammer Seal

161982 – Rammer Valve Housing

41374 – Rammer Seal

90118 – Rammer Spring

161973 – Rammer Spring Guide

161974 – Rammer Cover

174183 – Rammer Shim Plate

42362 – Rammer Shim Plate

161981 – Rammer Plug

91051 – Rammer Hexagon Screw

90597 – Rammer Lock Washer

42363 – Rammer Shim Plate

90030 – Rammer O-Ring

90015 – Rammer O-Ring (S22)

163446 – Rammer Spool

161414 – Rammer Pin

951797 – Rammer Spring

112835 – Rammer Seal

156729 – Rammer Cover

90001 – Rammer O-Ring

168593 – Rammer Rubber Ring

168589 – Rammer Lock Plate

168595 – Rammer Tie Rod 5011

168588 – Rammer Vibration Dampening Element

952009 – Rammer Cable Tie

400662 – Rammer Breather

159795 – Rammer Nozzle

90403 – Rammer Flange Plug

90410 – Rammer Flange Plug

94070 – Rammer O-Ring

90444 – Rammer Flange Plug

170757 – Rammer Nozzle

168567 – Rammer Seal Carrier

93203 – Rammer Flange Plug

173557 – Rammer Steel Plug

901173 – Rammer O-Ring

101700 – Rammer Breather

168564 – Rammer Piston 5011

952370 – Rammer Wiper

903066 – Rammer Seal

168260 – Rammer Seal

901124 – Rammer O-Ring

904017 – Rammer Parallel Pin

168296 – Rammer Cylinder 5011

953810 – Rammer O-Ring

953806 – Rammer Seal

953802 – Rammer Seal

953803 – Rammer Wiper

901117 – Rammer O-Ring

168295 – Rammer Upper Tool Bushing 5011

900051 – Rammer Hexagon Socket Screw

953339 – Rammer Lock Washer

90000 – Rammer O-Ring

40110 – Rammer Wedge

173683 – Rammer Front Head 5011

173684 – Rammer Retaining Pin

953595 – Rammer O-Ring

954215 – Rammer O-Ring

168283 – Rammer Thrust Ring 5011

168299 – Rammer Ring

171139 – Rammer Lower Tool Bushing 5011

50111 – Rammer 5011 Flat Chisel

50113 – Rammer 5011 Point Chisel

50114 – Rammer 5011 Blunt Chisel

50113K3 – Rammer 5011 Pyramid Chisel

50111F3 – Rammer 5011 Limestone Chisel Flat Chisel

50114T2 – Rammer 5011 Super Blunt Chisel

955711 – Rammer Bio Tool Grease 400G

951370 – Rammer Grease Cartridge 500 Gr

173535 – Rammer Membrane 5011

170948 – Rammer Seal Set 5011

Rammer 5011PRO Parts Manual900040 Rammer Hex. Socket Screw
173473 Rammer Cover
173510 Rammer Seal
172586 Rammer Buffer 5011
172390 Rammer Locking Screw
172391 Rammer Locking Plate
172157 Rammer Buffer Holder
172114 Rammer Buffer Holder
172755 Rammer Hose Assembly
172686 Rammer Guide Plate
172678 Rammer Bushing
901902 Rammer Hex. Socket Screw
954382 Rammer Lock Washer
900010 Rammer Hex. Screw
168228 Rammer Pad 5011
91012 Rammer Lock Washer
168231 Rammer Plug
950038 Rammer Adapter
953942 Rammer Lifting Eye
170233 Rammer Stopper
953944 Rammer Hex. Screw
173260 Rammer Seal
954831 Rammer Hex. Screw
90597 Rammer Lock Washer
42363 Rammer Shim Plate
90015 Rammer S22 O-Ring
163446 Rammer Spool
156729 Rammer Cover
90001 Rammer O-Ring
161414 Rammer Pin
951797 Rammer Spring
168593 Rammer Rubber Ring
168589 Rammer Lock Plate
168595 Rammer Tie Rod 5011
168588 Rammer Vibration Dampening Element
952009 Rammer Cable Tie
173293 Rammer Wear Plate
159795 Rammer Nozzle
90403 Rammer Flange Plug
90410 Rammer Flange Plug
90444 Rammer Flange Plug
170757 Rammer Nozzle
168567 Rammer Seal Carrier
93203 Rammer Flange Plug
173557 Rammer Plug (Steel)
101700 Rammer Breather
173299 Rammer Piston 5011 Pro
904017 Rammer Parallel Pin
168296 Rammer Cylinder 5011
901117 Rammer O-Ring
90030 Rammer O-Ring
40533 Rammer Seal
41374 Rammer Seal
910010 Rammer O-Ring
910006 Rammer O-Ring
90056 Rammer Usit-Ring
90034 Rammer O-Ring
168563 Rammer Seal
952370 Rammer Wiper
903066 Rammer Seal
168260 Rammer Seal
953810 Rammer O-Ring
901124 Rammer O-Ring
901173 Rammer O-Ring
94070 Rammer O-Ring
94048 Rammer O-Ring
94038 Rammer O-Ring
90035 Rammer O-Ring
112835 Rammer Seal
900001 Rammer Hex. Screw
954341 Rammer Seal (for 4099 Model)
953806 Rammer Seal
953802 Rammer Seal
953803 Rammer Wiper
951117 Rammer Piston, Boom
954215 Rammer O-Ring
168283 Rammer Thrust Ring 5011
168295 Rammer Upper Tool Bushing 5011
900051 Rammer Hex. Socket Screw
953339 Rammer Lock Washer
90000 Rammer O-Ring
40110 Rammer Wedge
173683 Rammer Front Head 5011
168297 Rammer Tool Retaining Pin 5011
173684 Rammer Retaining Pin
168299 Rammer Ring
953595 Rammer O-Ring
K105011 Rammer Service Kit 5011 Pro
50111Z1 Rammer 5011 Pro Tunnelling Flat Chisel
50113Z1 Rammer 5011 Pro Point Chisel
50111A2Z1 Rammer 5011 Pro Hard Rock Flat Chisel
50111F3Z1 Rammer 5011 Pro Limestone Flat Chisel
902045 Rammer Tool Grease 400 Gr.
90200 Rammer Grease Nipple
173275 Rammer Fitting, Flange
90521 Rammer Washer
90519 Rammer Lock Nut
90514 Rammer Hex. Screw
173274 Rammer Seal
173281 Rammer Wear Plate
154015 Rammer Shield Plug
168591 Rammer Accumulator Screw
40368 Rammer Filling Plug
168287 Rammer Accumulator Cover
90304 Rammer Parallel Pin
168285 Rammer Accumulator Bottom 5011
168289 Rammer Accumulator Screw
954348 Rammer Shim Plate 4099
954349 Rammer Shim Plate 4099
170264 Rammer Cover
171031 Rammer Spool
954342 Rammer Spring
172116 Rammer Valve Housing
168572 Rammer Cover
168596 Rammer Seal
168571 Rammer Main Valve Bushing 5011E
168574 Rammer Main Spool
110986 Rammer Spool
110781 Rammer Spool
900036 Rammer Hex. Screw
91010 Rammer Lock Washer
171131 Rammer Spool
161976 Rammer Guide
400582 Rammer Spool
161982 Rammer Valve Housing
90118 Rammer Spring
161973 Rammer Spring Guide
174183 Rammer Shim Plate
42362 Rammer Shim Plate
161981 Rammer Plug
91051 Rammer Hex. Screw
955711 Rammer Bio Tool Grease 400G
173535 Rammer Membrane 5011
170948 Rammer Seal Set 5011
