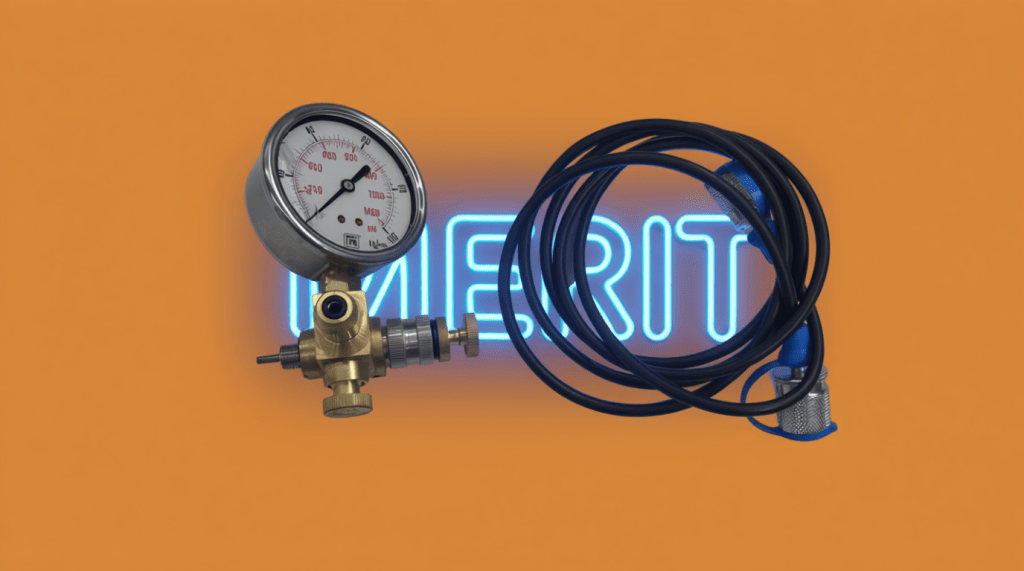

Sandvik BA2424 Accumulator Charging device

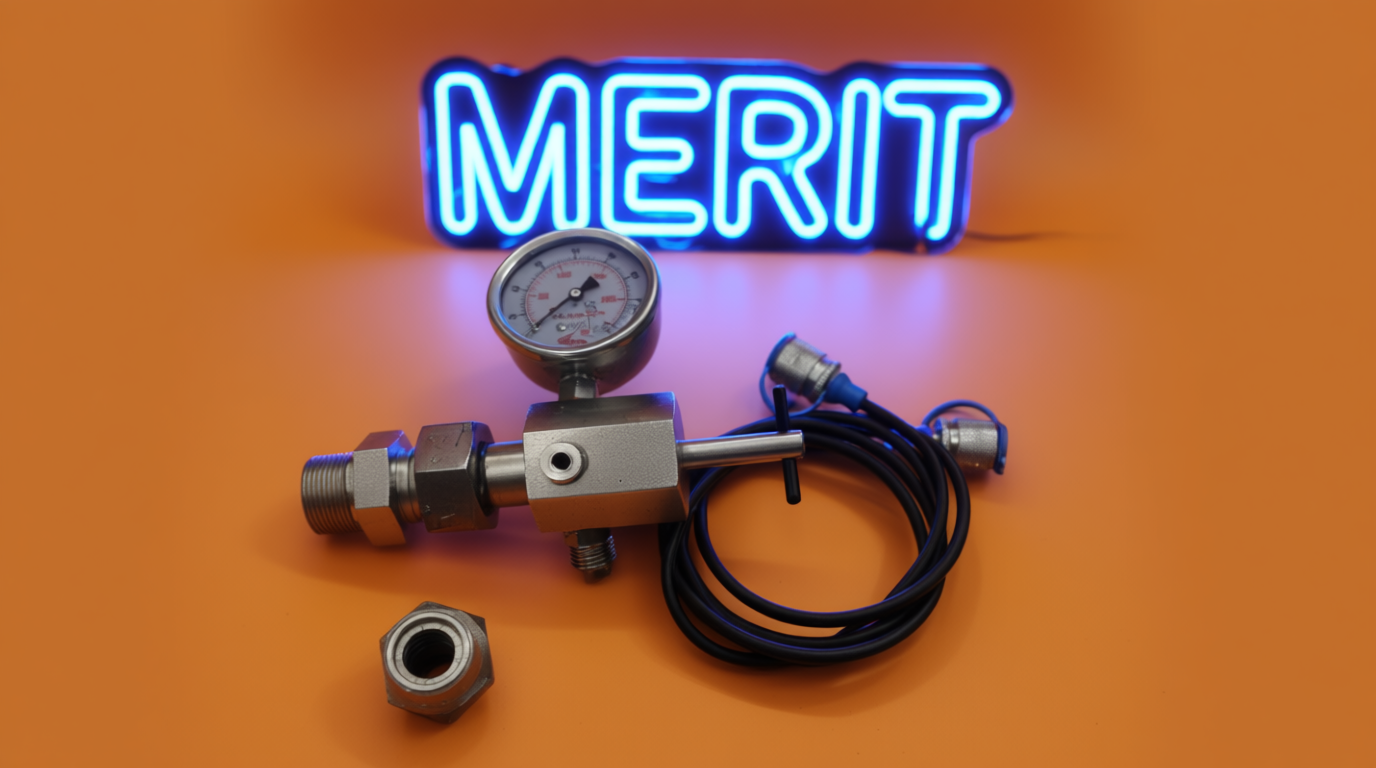

Sandvik Rammer 40633 ACCUMULATOR CHARGING KIT New

DATA SHEET – SAN-40633 Accumulator Charging Kit at MERIT

Product Name

SAN-40633 – Accumulator Charging Kit
(Complete package including Items 1.1, 1.2, 1.3, 1.4)

  info@meritautomotive.com

---

1. Product Description

The SAN-40633 Accumulator Charging Kit is designed for precise nitrogen charging and maintenance of hydraulic breaker accumulators. It ensures accurate pressure control, safe operation, and compatibility with hydraulic systems. Manufactured using high-grade materials and pressure-rated components, this kit is suitable for workshop and on-site maintenance.

---

2. Included Components

Package includes:

• Item 1.1: Pressure Gauge
• Item 1.2: Charging Adaptor
• Item 1.3: High-Pressure Hose
• Item 1.4: Nitrogen Valve Assembly

(All items tested and calibrated according to hydraulic service standards.)

---

3. Technical Specifications

General

• Model: SAN-40633
• Type: Nitrogen Accumulator Charging Tool Set
• Application: Hydraulic breakers and compatible charging valves

Pressure Rating

• Maximum Working Pressure: 300 bar
• Gauge Range: 0–400 bar
• Hose Pressure Rating: 400 bar (safety factor included)

Material Specifications

• Hose: Reinforced high-pressure synthetic rubber
• Connectors: Hardened steel, corrosion-resistant zinc coating
• Gauge Body: Shock-resistant steel with protective rubber casing
• Valves: Chrome-coated steel with precision seal structure

Accuracy

• Gauge Accuracy: ±1.6%
• Calibrated According to: EN 837-1 Standard

---

4. Dimensions & Weight

• Weight: 1.8 kg
• Dimensions: 13 × 21 × 8 cm
• Storage Case: Heavy-duty compact plastic housing

---

5. Country of Manufacture

• Turkey

---

6. Certifications & Documents

• Certificate of Origin: Available
• Calibration Certificate: Provided upon request

---

7. Operating Features

• Safe nitrogen charge and discharge
• Leak-proof sealing system
• Quick-connect couplings
• Easy-read pressure display
• Suitable for workshop and field maintenance
• Long-life components designed for repeated use

---

8. Usage Areas

• Hydraulic rock breakers
• Nitrogen accumulator maintenance
• Construction & mining equipment service
• Heavy machinery workshop operations

---

9. Storage & Handling

• Store in dry, dust-free environment
• Avoid direct exposure to extreme temperatures
• Regular calibration recommended every 12 months

---

10. Warranty

• 12-Month Warranty against manufacturing defects

---
