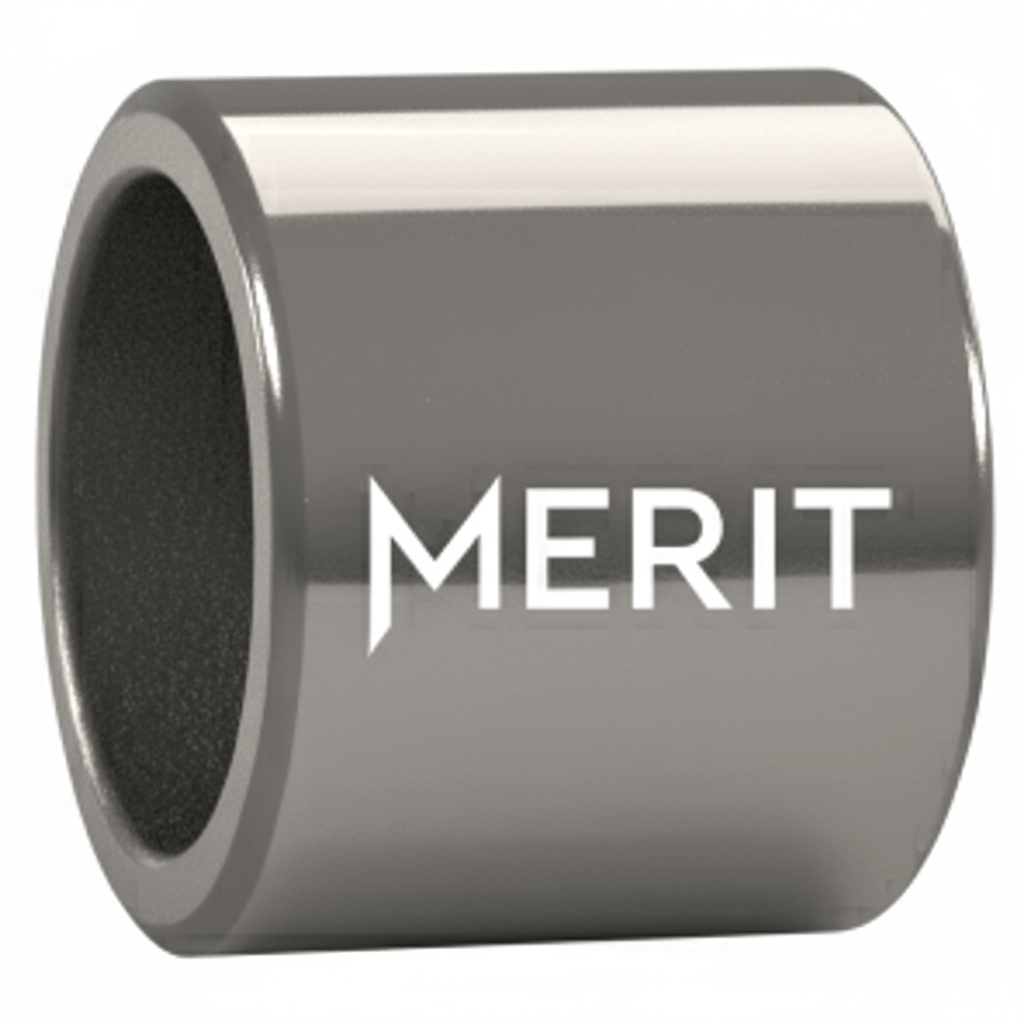

Our upper bushings are precision-made to be a direct fit for your Rammer G120 hydraulic hammer. OEM part numbers include:
- 300316
The Importance of Bushings
Upper and lower bushings are essential for maintaining the efficiency and longevity of your hydraulic hammer. These bushings:
- Keep your point or chisel properly seated during operation
- Maintain correct profiles and contours for optimal tool performance
Worn bushings can cause misalignment of the tool with the piston, leading to:
- Cracked pistons
- Cylinder damage
- Seal damage
Our upper bushings are cross-referenced to Rammer part number 300316 for reliable compatibility and performance.
Disclaimer
Merit manufactures high-quality replacement parts compatible with a range of brands, including Rammer and Allied. Merit is not endorsed, sponsored by, or affiliated with Rammer or Allied. References to Rammer and Allied trademarks are solely for compatibility and identification purpose
Spare Parts
| Buffer | 155317 | 104137 | 168232 |
| Pad | 155438 | 104068 | 168228 |
| Shield Plate | 163556 | 105780 | 168281 |
| Plug | 157947 | 157947 | 168231 |
| Seal | 153013 | 160558 | 168280 |
| Wear Plate | 163355 | 162525 | 171044 |
| Lower Bushing* | 155206 | 160008 | 171139 |
| Ring | 153236 | 160482 | 168299 |
| Tool Retaining Pin* | 153235 | 160020 | 168297 |
| Bushing Retaining Pin | 155553 | 160484 | 168298 |
| Rubber Plug | 104530 | 160485 | 168300 |
| Membrane | 102942 | 104022 | 168291 |
| Seal Set* | 163428 | 165464 | 170948 |
| Service Kit | K13288 | K14099 | K15011 |
Demolition Tools
| Chisel Tool | 881 | 991 | 50111 |
| Moil Point Tool | 883 | 993 | 50113 |
| Blunt Tool | 884 | 994 | 50114 |
| Pyramid Tool | 883K | 993K3 | 50113K3 |
| Limestone Chisel Tool | 881F3 | 991F3 | 50111A2 |
| Hard Rock Chisel Tool | 881A3 | 991A2 | 50111F3 |
| Super Blunt Tool | 884T2 | 994T2 | 50114T2 |
Rammer Parts List
| OEM Part Number | Part Name |
|---|---|
| 163556 | Shield Plate 3288 |
| 168203 | Buffer 3288 Heavy Duty |
| 155438 | Pad 3288 |
| 90589 | Hexagon Screw |
| 90511 | Washer |
| 90507 | Lock Nut |
| 400491 | Rubber Plug |
| 158147 | Bushing |
| 953291 | Plug |
| 157947 | Plug |
| 900026 | Hexagon Screw |
| 90705 | Lifting Eye |
| 168089 | Housing 3288 |
| 153013 | Seal |
| 168211 | Wear Parts |
| 163355 | Wear Plate |
| 154015 | Shield Plug |
| 910006 | O-Ring |
| 41335 | Accumulator Screw |
| 40368 | Filling Plug |
| 90056 | Usit-Ring |
| 155342 | Accumulator Cover |
| 173741 | Accumulator Bottom 3288 |
| 90304 | Parallel Pin |
| 40416 | Accumulator Screw |
| 41357 | Seal |
| 902668 | Seal |
| 101830 | Cover |
| 103802 | Main Valve Bushing 3288 |
| 40112 | Spool |
| 162453 | Main Spool |
| 101853 | Spool |
| 101472 | Cover |
| 90005 | O-Ring |
| 90432 | Check Valve |
| 90310 | Spring Ring |
| 954348 | Shim Plate 4099 |
| 954349 | Shim Plate 4099 |
| 172149 | Cover |
| 90517 | Hex. Screw |
| 90017 | O-Ring |
| 954342 | Spring |
| 954341 | Seal (4099) |
| 171031 | Spool |
| 90007 | O-Ring |
| 90031 | O-Ring |
| 156730 | Pin |
| 951797 | Spring |
| 163446 | Spool |
| 90001 | O-Ring |
| 156729 | Cover |
| 112835 | Seal |
| 90444 | Flange Plug |
| 159795 | Nozzle |
| 93203 | Flange Plug |
| 162448 | Valve Body 3288 |
| 90401 | Flange Plug |
| 162446 | Seal Carrier |
| 150244 | Seal |
| 955144 | Seal |
| 901160 | Wiper |
| 173557 | Plug (Steel) |
| 901173 | O-Ring |
| 101700 | Breather |
| 90046 | O-Ring |
| 952116 | O-Ring |
| 90403 | Flange Plug |
| 400662 | Breather |
| 162445 | Piston 3288 |
| 41140 | Seal |
| 90317 | Parallel Pin |
| 901124 | O-Ring |
| 162442 | Cylinder 3288 |
| 952033 | Seal |
| 903325 | Seal |
| 952657 | Wiper |
| 90076 | O-Ring |
| 155467 | Thrust Ring 3288 |
| 101414 | Upper Tool Bushing 3288 |
| 173679 | Front Head 3288 |
| 90000 | O-Ring |
| 40110 | Wedge |
| 900051 | Hex. Socket Screw |
| 90597 | Lock Washer |
| 153235 | Tool Retaining Pin 3288 |
| 153236 | Ring |
| 173685 | Rubber Ring |
| 173680 | Retaining Pin |
| 155206 | Lower Tool Bushing |
| 881 | 3288E Chisel (Flat) |
| 883 | G88 Chisel (Pointed) |
| 884 | G88 Chisel (Blunt) |
| 883K3 | G88 Chisel (Pyramid) |
| 881F3 | 2577E Chisel (Flat – Limestone) |
| 881A2 | 3288E Chisel (Flat – Hard Rock) |
| 884T2 | G88 Super Chisel (Blunt Ø150mm) |
| 951370 | Grease Cartridge 500 Gr |
| 173532 | Membrane for S82, S83, G80, G88, 3288 |
| 163428 | Seal Set 3288 |
